Steel 63mm Metal Deck Roll Forming Machine Losacero 25
Steel 63mm Metal Deck Roll Forming Machine Losacero 25
Specifications
Brand Name :
LINBAY
Model Number :
LB-MD
Certification :
ISO:9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD65,000-75,000
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per year
Delivery Time :
100 working days
Packaging Details :
Naked
Name :
Steel Deck 63mm Metal Floor Deck Roll Forming Machine Losacero 25
Material :
Cal 20, Cal 22
Steel type :
Galvanized steel
Yield strength :
350Mpa
Machine structure :
Wall panel
Working speed :
0-12m/min
Description

Steel Deck 63mm Metal Floor Deck Roll Forming Machine Losacero 25

Floor-bearing plate production line equipment(metal deck roll forming machine/metal deck bending machine)

Equipped with manual uncoiler, forming host, hydraulic cutter, electric control system, hydraulic system, discharge frame, used for floor bearing plate pressing, replacing the traditional formwork, solving the shortcomings of the traditional formwork, quick and easy construction, neat and beautiful product appearance, with light weight, high strength, high bearing capacity, good seismic characteristics. (floor decking roll forming machine/ floor decking bending machine)

The high configuration uses control system technology, simple and convenient parameter setting, high degree of automation, strong self-learning ability of the system(roof deck roll forming machine/ roof deck bending machine), all control original parts are made of international brands, stable, high-precision automatic measuring length system and other components. The machine is installed on a good and stable foundation so that the machine does not vibrate when working, thus ensuring the accuracy and performance of the machine and extending its life. (Steel deck roll forming machine/Steel deck bending machine)

Steel 63mm Metal Deck Roll Forming Machine Losacero 25

Flow chart of Steel Deck 63mm Metal Floor Deck Roll Forming Machine Losacero 25:

Hydraulic decoiler--Guiding--Embossing--Roll forming--Hydraulic cut--Out table

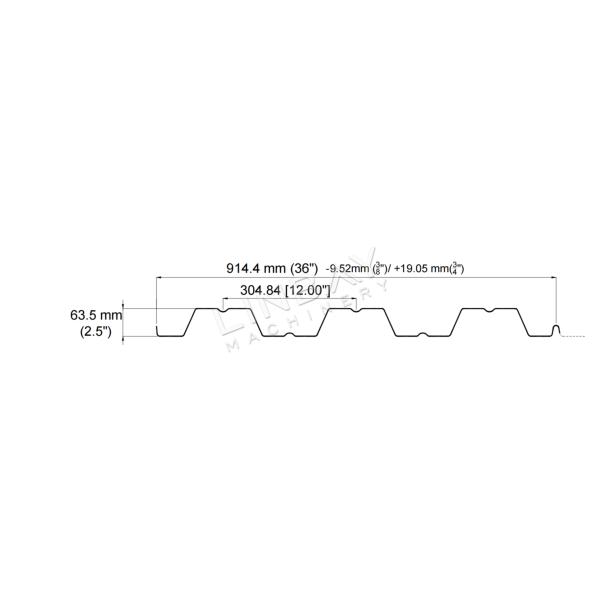

The 63mm high floor joist is a common size in countries in the Americas. LINBAY MACHINERY exports this machine to Mexico, where it is called LOSACERO 25 ROLL FORMING MACHINE.

Steel Deck 63mm Metal Floor Deck Roll Forming Machine Losacero 25
Component 1: Hydraulic decoiler 5-7.5Tons
Component 2: Roll forming machine

2*11kw forming motor

26 forming stands

Shafts φ85mm

Embossing rollers 1 stands
Component 3: Hydraulic station 7.5kw motor
Component 4: Control panel Siemens PLC
Component 5: Hydraulic station 7.5kw
Component 6: Out table Manual type 2*2m
Voltage: 380V 50Hz 3Ph

Pictures of Steel Deck 63mm Metal Floor Deck Roll Forming Machine Losacero 25:

Steel 63mm Metal Deck Roll Forming Machine Losacero 25Steel 63mm Metal Deck Roll Forming Machine Losacero 25Steel 63mm Metal Deck Roll Forming Machine Losacero 25
