Heavy Duty Upright Rack Frame Roll Forming Machine High Speed 2mm
Heavy Duty Upright Rack Frame Roll Forming Machine High Speed 2mm
Specifications
Brand Name :
LINBAY
Model Number :
LB-WSR
Certification :
ISO:9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD120,000
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per year
Delivery Time :
100 working days
Packaging Details :
Naked
Name :
High Speed Upright Rack Roll Forming Machine Punch Press Rack Column Heavy Duty
Material :
black steel/galvanized steel
Thickness :
2mm
Voltage :
380V 50Hz 3Ph or customized
Control system :
Simens PLC
Punch method :
Punch press
Description

High Speed Upright Rack Roll Forming Machine Punch Press Rack Column Heavy Duty

The normal thickness of material used for the conventional warehouse shelf racks is 2.0mm, 2.5mm and 3.0mm. The raw material for the production of the columns which is produced by shelf rack roll forming machine is longitudinally cut strip steel.

The coils are first punched on an automatic punching machine to create the required hole shape and then placed in a reserve area to await feeding, where the column is fed and rolled into shelf rack roll forming machine to be shaped at the same time.

Flow chart:

Hydraulic decoiler with leveler--Servo feederwith punch press--Guiding--Roll forming machine--Hydraulic flying shear--Out table

The column is characterised by a large number of punched holes, so if the customer has a requirement for speed, then a punching press machine must be used. Using a punching press machine, the upright rack production line speed can reach 8-12 metres per minute. Through the servo feeder into the accurate feeding, shear by photoelectric induction switch to determine the position of the length. The forming machine part if the customer produces 2mm column, you can use the wall plate structure with chain drive, if you want to produce 3mm column we will recommend the customer to use the cast iron structure, at the same time with gear box drive, the operation is more stable and longer service life.

Pictures of components:

Heavy Duty Upright Rack Frame Roll Forming Machine High Speed 2mm

Hydraulic decoiler

Heavy Duty Upright Rack Frame Roll Forming Machine High Speed 2mm

Press machine

Heavy Duty Upright Rack Frame Roll Forming Machine High Speed 2mm

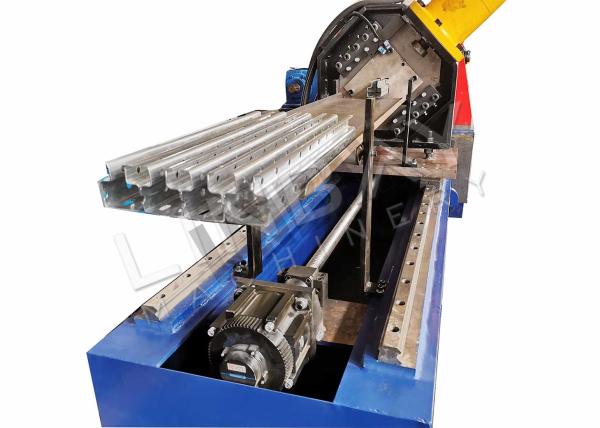

Upright rack roll forming machine

Heavy Duty Upright Rack Frame Roll Forming Machine High Speed 2mm

Fotoelectric sensor to cut length
