1.5mm-2mm Pallet Rack Roll Forming Machine 440V 22kw Iron Stands Galvanized Steel
1.5mm-2mm Pallet Rack Roll Forming Machine 440V 22kw Iron Stands Galvanized Steel
1.5mm-2mm Pallet Rack Roll Forming Machine 440V 22kw Iron Stands Galvanized Steel
1.5mm-2mm Pallet Rack Roll Forming Machine 440V 22kw Iron Stands Galvanized Steel
Specifications
Brand Name :
LINBAY
Model Number :
LB-WSB
Certification :
ISO:9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD10,000
Payment Terms :
L/C, T/T
Supply Ability :
200 sets
Delivery Time :
100 working days
Packaging Details :
Naked
Name :
Overlap Step Beam Roll Forming Machine 2mm Cast Iron Stands Galvanized Steel
Material :
black steel/galvanized steel
Voltage :
440V 50Hz 3Ph or customized
Use :
To produce step beams for rack system
Structure :
Cast iron stands
Thickness :
1.5mm-2mm
Control system :
Simens PLC
Machineable size :
Multiple heights
Motor power :
22kw
Description

Overlap Step Beam Roll Forming Machine 2mm Cast Iron Stands Galvanized Steel

Forming overlap connection:

The more common thickness of this profile is around 1.5mm, and LINBAY MACHINERY adopts the cast iron stand structure with gearbox driving transmission, the motor power is 22kw, 32 forming stands are needed, so the cost of this type step beam roll forming machine is much higher.

The speed of the whole line is about 6 meters/minute because the overlap part cannot be formed fast.

You can cut any length you want.

The touch screen language is English and Chinese, just input the length and quantity to start production, easy to operate.

We offer the best service in China, we take video to show the machine before shipment, videos to introduce how to assemble the machine, and we offer detailed instruction book in English, we founded technical group in whatsapp to answer the doubts online. We assure you that you can start production as soon as you receive our steel deck roll forming machine.

We offer 24 months warranty, Quality guaranteed.

Payment method: 30% T/T as advance payment, 70% T/T after inspection before shipment.

Delivery day: 100 working days after receiving the deposit.

Flow chart:

Manual decoiler--Guiding--Leveling--Roll forming machine--Welding--Saw cut--Out table

1.5mm-2mm Pallet Rack Roll Forming Machine 440V 22kw Iron Stands Galvanized Steel

Pictures of components:

1.5mm-2mm Pallet Rack Roll Forming Machine 440V 22kw Iron Stands Galvanized Steel

Manual decoiler

1.5mm-2mm Pallet Rack Roll Forming Machine 440V 22kw Iron Stands Galvanized Steel

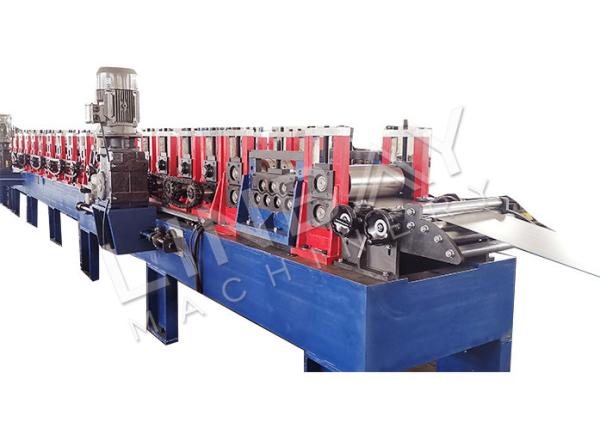

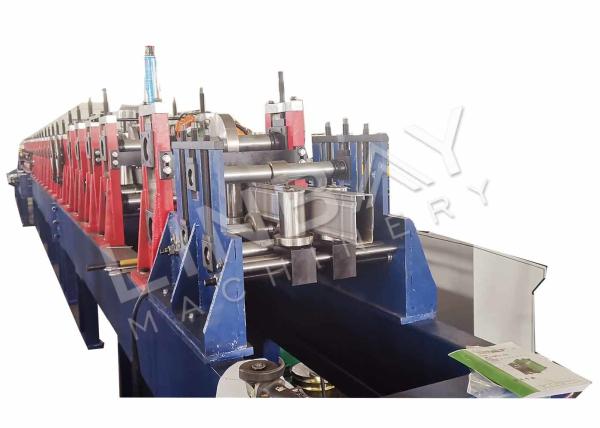

Step beam roll forming machine

Contact with LINBAY MACHIENRY to get more details about this production line!
