Carbon Steel Cable Tray Production Line 380V 11kw Full Automatic Perforated
Carbon Steel Cable Tray Production Line 380V 11kw Full Automatic Perforated
Specifications
Brand Name :
LINBAY
Model Number :
LB-CT7
Certification :
IOS9001/TUV
Place of Origin :
China
MOQ :
1 set
Price :
USD50000-100000
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per year
Delivery Time :
60 work days
Packaging Details :
Standard exported package
Name :
Full Automatic Perforated Cable Tray And Cable Cover Roll Forming Production Line
Main motor :
11kw
Material :
Galvanized steel/Hot Dipped Galvanized Steel/Carbon Steel
Cut method :
Hydraulic cut
Color :
Red and white
Power supply :
380V 50Hz
Description

Full Automatic Perforated Cable Tray And Cable Cover Roll Forming Production Line

Slotted bridge to frame: Slotted FRP tray(cable tray roll forming machine/cable tray bending machine) is a fully enclosed cable tray, Linbay that it is suitable for laying computer cables(perforated cable tray roll forming machine/ perforated cable tray bending machine), communication cables, thermocouple cables and other highly sensitive systems of control power cables, etc. It has a better effect on the shielding interference of control cables and the protection of cables in heavy corrosive environments. Slotted tray is generally a closed type of tray, no openings, so in the heat dissipation is poor, while the ladder type tray slot bottom(cable trunking roll forming machine/cable trunking bending machine) is a hundred many waist-shaped holes, heat dissipation performance will be relatively better. (cable cover roll forming machine/cable cover bending machine)

　

Flow Chart of Full Automatic Perforated Cable Tray And Cable Cover Roll Forming Production Line

8T hydraulic decoiler-Punch press-Roll forming machine-Outer table


Main Technical Parameters

Full Automatic Perforated Cable Tray And Cable Cover Roll Forming Production Line
Component 1

8T hydraulic decoiler

 8 tons capacity
Component 2 Leveler 7 rollers
Component 3 Punch press 400 tons
Component 4 Roll former 7.5kw*2
Component 5 Hydraulic cut 7.5kw
Component 6 Outer table 2 sets

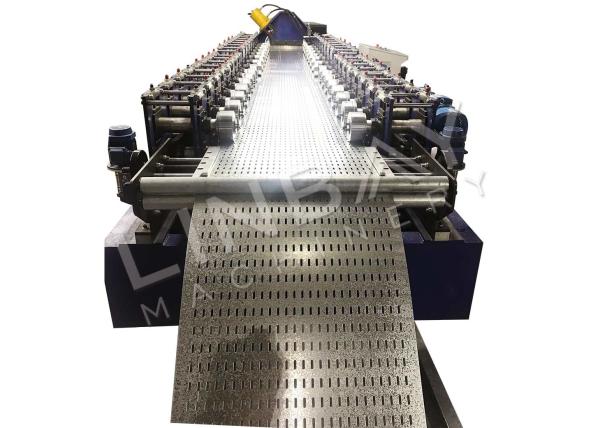

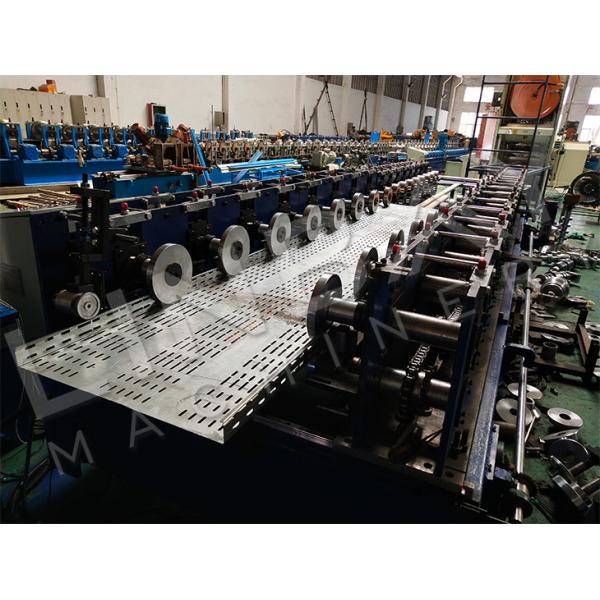

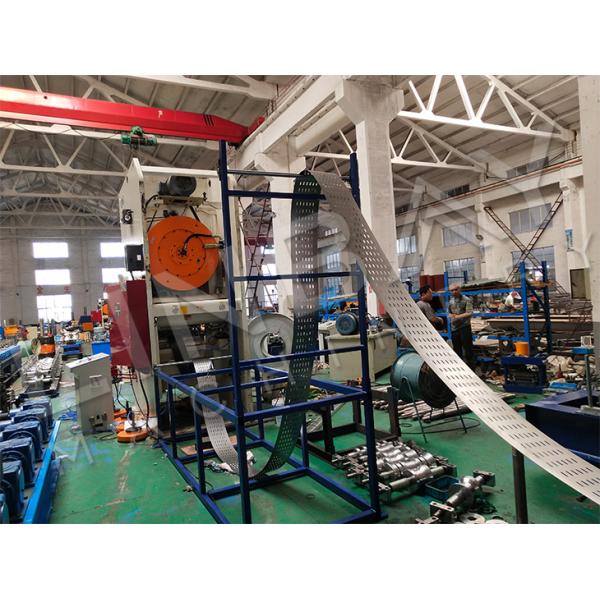

Pictures of Full Automatic Perforated Cable Tray And Cable Cover Roll Forming Production Line

Carbon Steel Cable Tray Production Line 380V 11kw Full Automatic Perforated

Carbon Steel Cable Tray Production Line 380V 11kw Full Automatic Perforated
