Hydraulic Punch Cable Tray Roll Forming Machine Carbon Steel 11kw
Hydraulic Punch Cable Tray Roll Forming Machine Carbon Steel 11kw
Specifications
Brand Name :
LINBAY
Model Number :
LB-CL6
Certification :
IOS9001/TUV
Place of Origin :
China
MOQ :
1 set
Price :
USD50000-100000
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per year
Delivery Time :
60 work days
Packaging Details :
Standard exported package
Name :
Carbon Steel Hydraulic Punch Automatic Cable Ladder Rack Roll Forming Production Line
Main motor :
11kw
Material :
Galvanized steel/Hot Dipped Galvanized Steel/Carbon Steel
Cut method :
Hydraulic cut
Color :
Red and white
Power supply :
380V 50Hz
Description

Carbon Steel Hydraulic Punch Automatic Cable Ladder Rack Roll Forming Production Line

Ladder type cable tray(cable ladder roll forming machine/cable ladder bending machine) is a kind of tray commonly used in recent years, simple and convenient construction, with remarkable use effect, suitable for laying on all kinds of buildings, using a wide range. Ladder cable tray installation points.

1. when laying ladder cable tray, the direction should be short and short, while trying to lay along the wall, along the column and other places to achieve the effect of saving materials.

2. when laying ladder type cable trays, consult with professionals, and at the same time propose to the civil engineering profession, structural profession to reserve wall holes, etc.. (cable ladder tray roll forming machine/cable ladder tray bending machine)

3. when laying cables, cables of different voltages and different purposes should not be laid in the same layer of ladder type cable tray to avoid accidents.

4. ladder type cable tray should be laid above corrosive liquid pipeline, below the heat pipeline when laying, according to not sympathetic to laying when there are many precautions, in parallel laying, some pipelines should not be parallel to the ladder type cable tray. (cable ladder rack roll forming machine cable ladder rack bending machine)

　

Flow Chart Of Carbon Steel Hydraulic Punch Automatic Cable Ladder Rack Roll Forming Production Line

5T hydraulic decoiler-Hydraulic punch-Roll forming machine-Hydraulic flying cut-Outer table


Main Technical Parameters

Carbon Steel Hydraulic Punch Automatic Cable Ladder Rack Roll Forming Production Line
Component 1 5T hydraulic decoiler with leveler 5 tons capacity
Component 2 Hydraulic Punch Hydraulic punch with servo feeder
Component 3 Roll former 7.5kw
Component 4 Hydraulic cut 7.5kw
Component 5 Outer table 2 sets

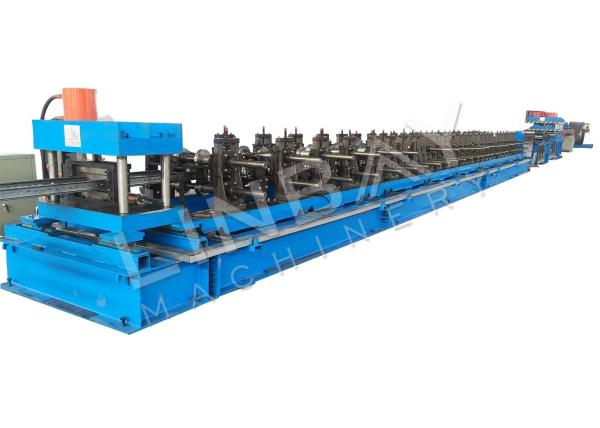

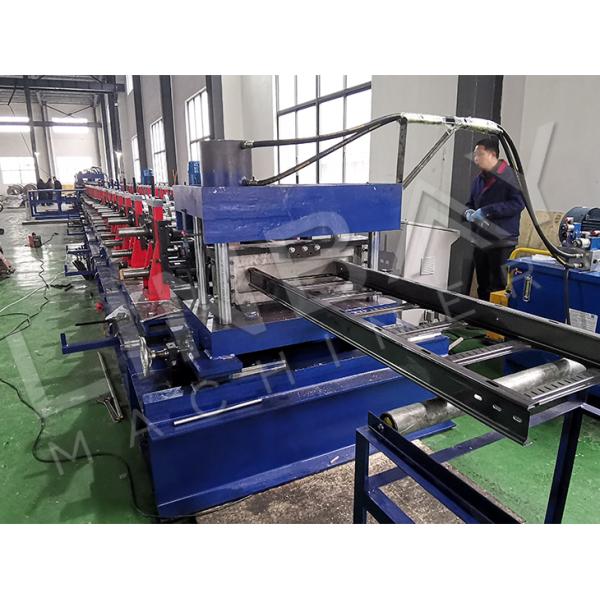

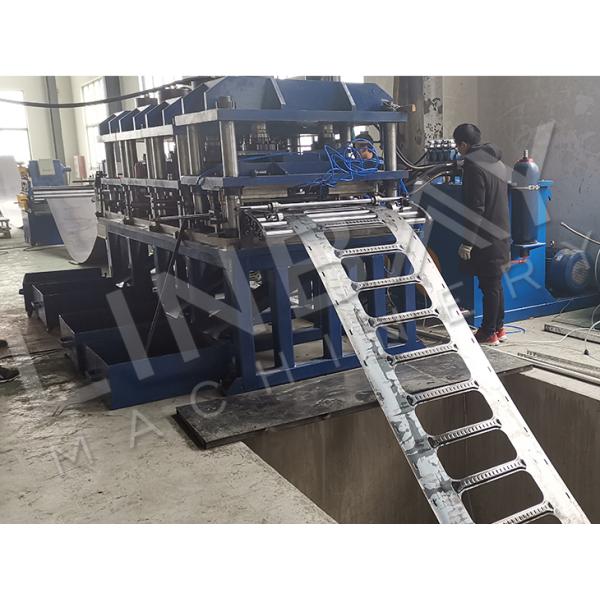

Pictures of Carbon Steel Hydraulic Punch Automatic Cable Ladder Rack Roll Forming Production Line

Hydraulic Punch Cable Tray Roll Forming Machine Carbon Steel 11kw

Hydraulic Punch Cable Tray Roll Forming Machine Carbon Steel 11kw
