0.8mm-1.2mm Pallet Rack Roll Forming Machine Heavy Duty Shelves Galvanized Steel 15kw
0.8mm-1.2mm Pallet Rack Roll Forming Machine Heavy Duty Shelves Galvanized Steel 15kw
0.8mm-1.2mm Pallet Rack Roll Forming Machine Heavy Duty Shelves Galvanized Steel 15kw
0.8mm-1.2mm Pallet Rack Roll Forming Machine Heavy Duty Shelves Galvanized Steel 15kw
Specifications
Brand Name :
LINBAY
Model Number :
LB-WSP
Certification :
ISO:9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD120,000
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per year
Delivery Time :
100 working days
Packaging Details :
Naked
Name :
Steel Shelf Panel Storage Panel Roll Forming Machine Heavy-Duty Shelves
Material :
galvanized steel
Thickness :
0.8mm-1.2mm
Origin :
China
Motor power :
15kw
Width motor :
1.5kw
Description

Steel Shelf Panel Storage Panel Roll Forming Machine Heavy-Duty Shelves

Modern storage shelving(storage system roll forming machine)is one of the essential storage equipment in today's corporate warehouses, it is also ubiquitous in our daily life and work, such as supermarkets, clothing shops, electronics factories, and other special types of factories inside, are indispensable. In general, storage shelves are commonly used in light and medium-sized shelves, heavy-duty shelves and loft shelves. There are many shelves that use steel laminates(shelf panel roll forming machine)and some that use wooden laminates.

Roll forming machine flow chart:

Hydraulic decoiler with leveler--Servo feeder--Hydraulic punth--Hydraulic cut--Platform--Roll forming machine--Platform--Bending stand--Platform--Bending stand--Out table

LINBAY MACHINERY's shelf board forming machines are typically capable of producing a wide range of sizes, with adjustable widths and heights.
This solution is suitable for multi height double folding, which is much more difficult than single folding. Normally speaking if you want to complete two folds in a cut, then you need one width and one mould, this is a solution that can also take advantage of the flexibility of the forming machine to allow one mould to be folded twice to obtain the same profile and also save on the cost of the machine.
Steel Shelf Panel Storage Panel Roll Forming Machine Heavy-Duty Shelves
Machinable thickness 0.8mm Steel type Galvanized steel
Hydraulic decoiler 5 Tons Leveler 3kw
Hydraulic punch 11kw Servo motor 3kw
Hydraulic cut 11kw Platform 2.2kw
Forming stands 18 stands Structure Cantilever
Forming motor 11kw Height change motor 2*0.75kw
Width change motor 1.5kw Roller material GCr15
Control panel SIMENS PLC Hydraulic station 11kw
Voltage 380V 50Hz 3Ph Machine color Industrial blue

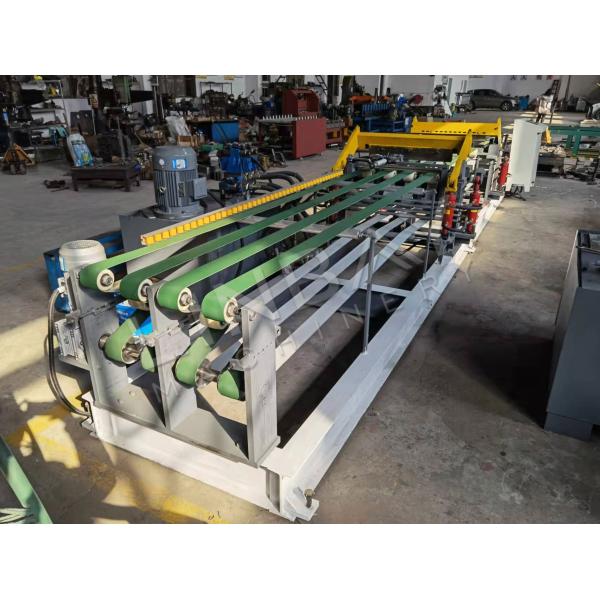

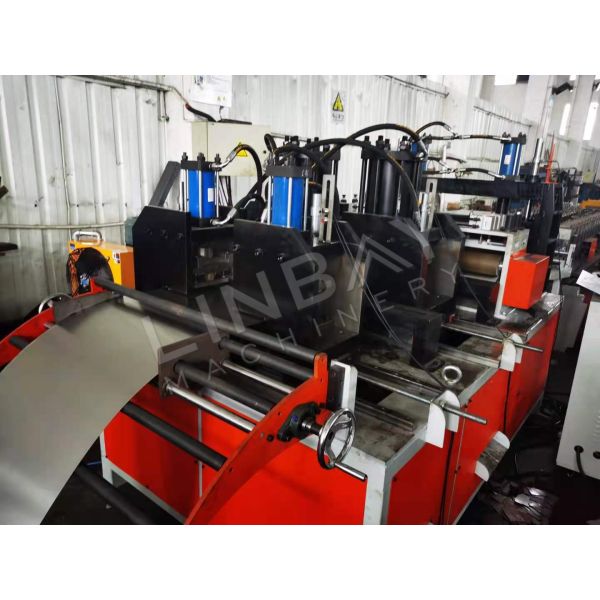

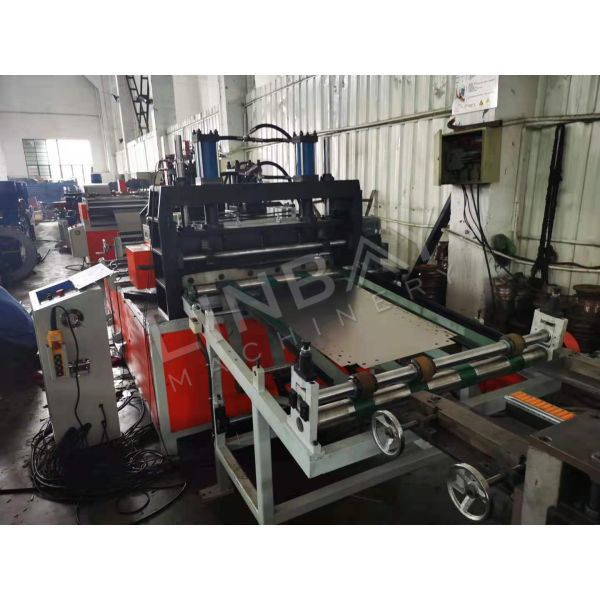

Pictures of components:
