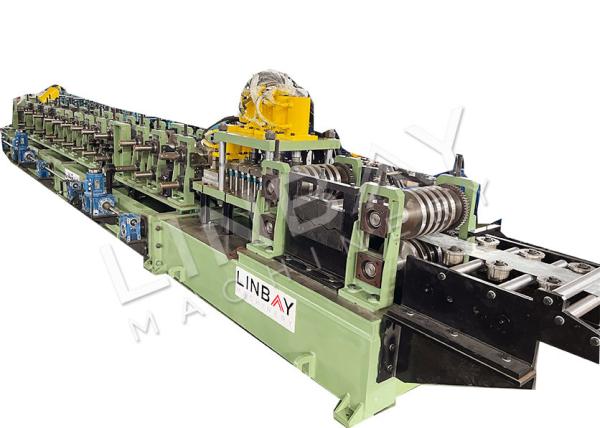

15kw Steel Frame Roll Forming Machine 0-15m/Min 380V
15kw Steel Frame Roll Forming Machine 0-15m/Min 380V
Specifications
Brand Name :
LINBAY
Model Number :
CP
Certification :
ISO:9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD55,000-USD65,000
Payment Terms :
L/C, T/T
Supply Ability :
200 sets/year
Delivery Time :
100 working days
Packaging Details :
Naked
Name :
C-Shaped Steel Purlins Cold Formed Machine Steel Construction Roof Beams
Material :
Galvanized Coil
Thickness :
1.5-3mm
Punch method :
Hydraulic punch
Working speed :
0-15m/min
Fomring motor power :
15kw
Width motor power :
1.5kw
Hieght motor power :
2*0.75kw
Forming stands :
16-18
Description

C-Shaped Steel Purlins Cold Formed Machine Steel Construction Roof Beams

C-shaped steel purlins(C purlin roll forming machine) are highly efficient economically cut sections (there are also cold-formed thin-walled sections, pressed steel sheets, etc.), which, due to their reasonable cross-sectional shape, enable the steel to perform more efficiently and increase its cutting capacity. Unlike ordinary I-beams, the wing embroidery of H-beams is widened and the inner and outer surfaces are usually parallel so that they can be easily connected to other elements with high strength screws.

15kw Steel Frame Roll Forming Machine 0-15m/Min 380V

The profile purlins are very useful and versatile and have advantages over other steel purlins. Therefore, in the process of house construction, you can choose the better profile C purlins(C profile roll forming machine) to ensure the safety and practicality of the house construction!

Flow chart of C-shaped purlins roll forming machine:

Manual decoiler--Guiding--Leveler--Hydraulic punch stands--Roll forming machine--Hydraulic cut

This cold bending production line we exported to Poland, the customer used to produce steel structure. c-beam equipment is a common equipment in the construction industry, can be used in many industries, in addition to the roof support accident, but also can be used for the house column, in many solar energy system, also use c-beam for bracket.

15kw Steel Frame Roll Forming Machine 0-15m/Min 380V
Post-shear

Profile C roll forming machine technical specification:

C-Shaped Steel Purlins Cold Formed Machine Steel Construction Roof Beams
Standard configurations
Item Specification
Machinable Material : Type : A) Galvanized Coil
B) Carbon Steel
Thickness : 1.5-3mm
Yield strength : ≤350 Mpa
Working speed : 0-15m/min without punch
Machine colour : Industrial blue
Delivery : 100 working days
Warranty : 24 months
Uncoiling : Type : Manual uncoiling
Capacity : 3 tons
Leveler : Type : equipped with roll forming machine
Punch system : Type : Hydraulic punch station
Motor power : According to your drawing
Roll forming machine : Forming steps : 18
Motor power : 15kw
Transmission system : Chain drive
Support structure : Cast iron stands
Material of rollers : GCr15 tempering quenching chrom plating
Diameter of shafts : φ75mm
Hydraulic cutting system : Type : Hydraulic cut
Motor power : 7.5kw
Length encoder : Koyo
Cutting length : Any length
Length tolerance : ≤1mm
Out table : Type : Manual
Length : 4m
Hydraulic station : Motor power : 15kw
PLC Control : Language : English-Chinese
Invertor : Yaskawa
PLC : Siemens
Electricity : 380V 50Hz 3Ph or according to your requirement
