T Bar Furring Channel Roll Forming Machine 0.4-0.8mm
T Bar Furring Channel Roll Forming Machine 0.4-0.8mm
Specifications
Brand Name :
LINBAY
Model Number :
LB-DWU
Certification :
ISO:9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD30,000-USD46,000
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per year
Delivery Time :
100 working days
Packaging Details :
Naked
Name :
Ceiling Steel Main T Bar Furring Channel Roll Forming Machine Building Material
Material :
Galvanized steel
Thickness :
0.4-0.8mm
Track size :
Metal track 100/Metal track 75/ Metal track 50
Voltage :
380V 50Hz 3Ph or customized
Control panel :
Siemens PLC
Description

Ceiling Steel Main T Bar Furring Channel Roll Forming Machine Building Material

The keel manufactured by the light steel keel machine is an indispensable part of the decoration ceiling.( celling system roll forming machine)

1, T keel machine hanging parts: for the connection of the T main keel machine and the spreader bar. Only applicable to ceiling without light steel keel machine without additional load.( main channel roll forming machine/celling channel roll forming machine/furring channel roll forming machine)

2,T keel machine connection piece: used for the connection of the longitudinal T keel machine, i.e. the main keel machine.( Wall angle roll forming machine

3,U-shaped keel machine hanging piece: used to connect the load-bearing keel machine (main keel machine) and the spreader bar.

4,T-type keel machine pendant: for the connection between the U-type light steel keel machine and the T-type longitudinal keel machine.( Cassette keel roll forming machine)

5,U-type main keel machine connector: for the connection of U-type load-bearing keel machine

T Bar Furring Channel Roll Forming Machine 0.4-0.8mm

Flow chart of Ceiling Steel Main T Bar Furring Channel Roll Forming Machine Building Material:

Manuel decoiler--Guiding--Roll forming--Flying shear--Out table

Ceiling Steel Main T Bar Furring Channel Roll Forming Machine Building Material
Component 1: Manual uncoiling Loading 3Tons steel coil
Component 2: Roll forming

7.5kw forming motor

16 forming station
Component 3: Flying hydraulic cut 7.5kw hydraulic motor
Component 4: Out table Two pieces of two meters
Component 5: Hydraulic station 7.5kw hydraulic motor
Component 6: Control panel Siemens brand PLC

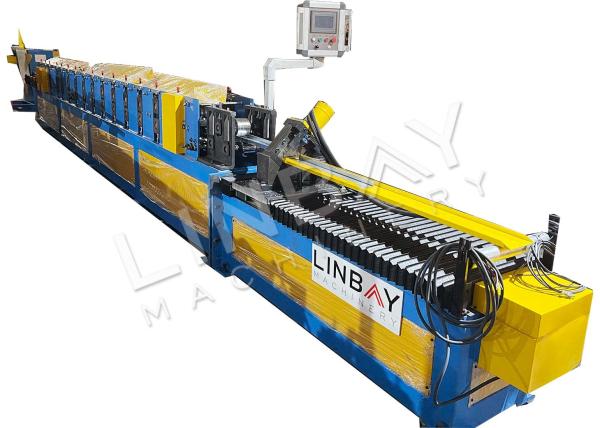

Pictures of Ceiling Steel Main T Bar Furring Channel Roll Forming Machine Building Material:

T Bar Furring Channel Roll Forming Machine 0.4-0.8mm
