0.4-0.6mm Roofing Roll Forming Machine
0.4-0.6mm Roofing Roll Forming Machine
Specifications
Brand Name :
LINBAY
Model Number :
LB-RC
Certification :
ISO:9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD46,000-USD56,000
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per year
Delivery Time :
100 working days
Packaging Details :
Naked
Name :
Steel Roof Tile Type Ridge Cap Roll Forming Machine Color Steel
Machinable thickness :
0.4-0.6mm
Steel material :
PRE-PAINTED, GALVANIZED, GALVALUME, CINCALUM
Working speed :
3-4m/min
Voltage :
380V 50Hz 3 phase
Use :
To produce steel roof tile ridge cap
Description

Steel Roof Tile Type Ridge Cap Roll Forming Machine Color Steel

Tin ridge tiles(ridge cap roll forming machine/ ridge cap bending machine) are bent and shaped to cover the ridge of a dwelling and are used to hold the covering in place. The ridge tiles(angle ridge cap roll forming machine/(angle ridge cap bending machine) are installed after all the trusses and permanent lateral supports are in place. (circular ridge cap roll forming machine/(circular ridge cap bending machine) A 224mm flat steel strip is used, which should be bent at the same angle as the slope of the roof. Either bend them yourself on a press braking machine or send them to a sheet metal workshop. Lay the ridge tile from one end of the roof to the other and fix it to each truss with ST4.2 low profile screws. (square ridge cap roll forming machine/(square ridge cap bending machine)

Flow chart of Steel Roof Tile Type Ridge Cap Roll Forming Machine Color Steel:

Hydraulic decoiler--Guiding--Roll forming machine--Hydraulic cut--Out table

Steel Roof Tile Type Ridge Cap Roll Forming Machine Color Steel
Component 1: Manual decoiler 3Tons
Component 2: Roll forming

Guiding

7.5kw forming motor

Roll forming 16 stands

Shafts φ75mm

Rollers 45 steel chromed
Component 3: Hydraulic stamping and cut

Each 300mm make stamping

6 columns structure

Cut any length
Component 4: Manual table 2 meters*2
Component 5: Hydraulic station 7.5kw
Component 6: Control panel Siemens PLC

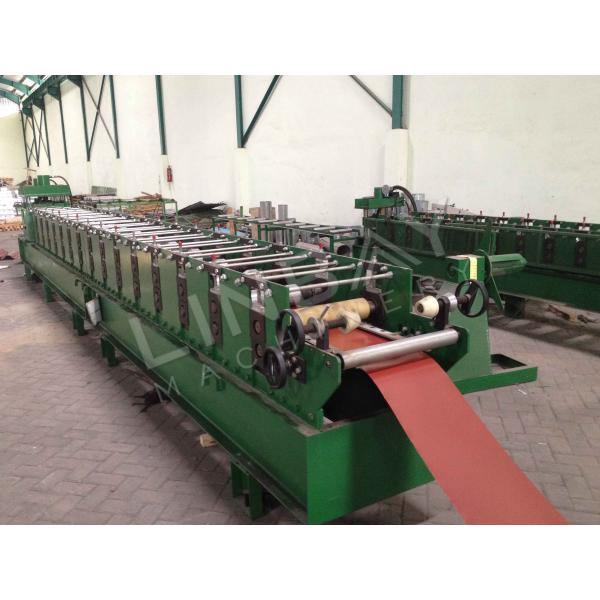

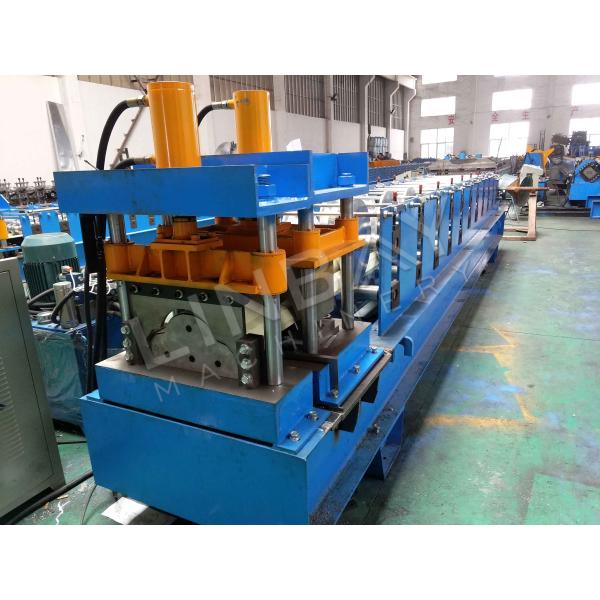

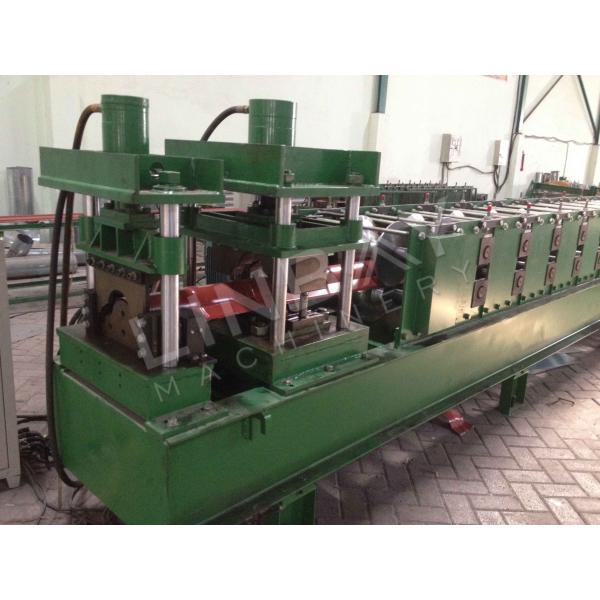

Pictures of Steel Roof Tile Type Ridge Cap Roll Forming Machine Color Steel:

0.4-0.6mm Roofing Roll Forming Machine0.4-0.6mm Roofing Roll Forming Machine0.4-0.6mm Roofing Roll Forming Machine
