1.5mm-2mm Steel Frame Roll Forming Machine Cast iron
1.5mm-2mm Steel Frame Roll Forming Machine Cast iron
Specifications
Brand Name :
LINBAY
Model Number :
LB-SFP
Certification :
IOS9001
Place of Origin :
China
MOQ :
1 set
Price :
USD50000-100000
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per year
Delivery Time :
60 work days
Packaging Details :
Nacked
Material :
Galvanized steel
Structure :
Cast iron
Color :
Red and blue
Drive :
Gearbox
Thickness :
1.5mm-2mm
Name :
Gearbox Drive Cast Iron Structurehydraulic Punch Galvanized Steel Scaffolding Plank Roll Forming Machine
Description

Gearbox Drive Cast Iron Structure hydraulic Punch Galvanized Steel Scaffolding Plank Roll Forming Machine

Steel scaffold(scaffolding plank roll forming machine/ strut channel bending machine) is a type of construction equipment for the building industry. It can be generally referred to as steel scaffold plate, construction steel skips, steel treads, galvanised steel skips, hot-dip galvanised steel treads, and is popularly used by the shipbuilding industry, oil platforms, electricity, and the construction industry. The steel springboard has M18 bolt holes for connecting the plate to the plate and adjusting the width of the bottom of the platform. Between the steel springboard and the steel springboard, a skirting board with a height of 180mm is used. The skirting board is painted in black and yellow and the skirting board is fixed with screws in the respective 3 holes. In this way the steel skirting plate can be fixedly connected to the steel skirting plate. After the connection is completed, the materials used to make the platform should be strictly accepted as a gatekeeper, and the platform should be tested after it has been made. The installation is completed and acceptance is qualified and listed before it is put into use. (steel scaffold board roll forming machine/steel scaffold board bending machine)

Flow Chart Of Scaffolding Plank Roll Forming Machine

5T deoiler with leveler-Embossing machine-Roll forming machine-Flying cut to length-Outer table


Main Technical Parameters

Gearbox Drive Cast Iron Structure hydraulic Punch Galvanized Steel Scaffolding Plank Roll Forming Machine
Component 1 5T deoiler with leveler 5T loading capacity
Component 2 Embossing machine Changeable embossing partten
Component 3 Roll forming machine 2kw
Component 4 Flying cut to length Yaskawa brand
Component 5 Outer table 2m*2

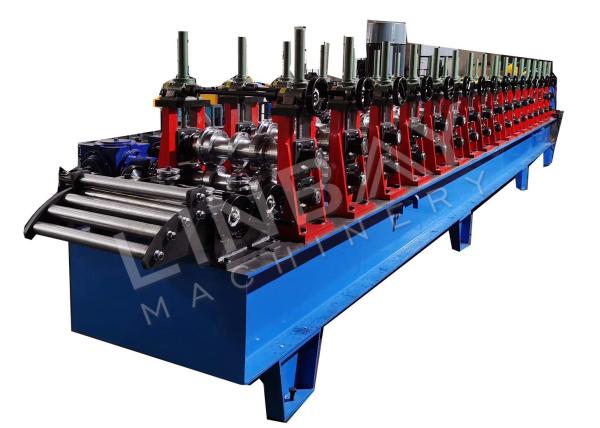

Pictures of Scaffolding Plank Roll Forming Machine

1.5mm-2mm Steel Frame Roll Forming Machine Cast iron

1.5mm-2mm Steel Frame Roll Forming Machine Cast iron
