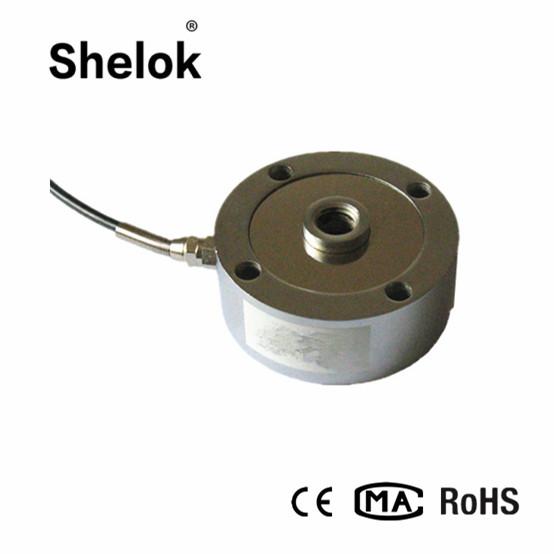

Sainless Steel Alloy Steel CFBHLY spoke type pancake tension 50 ton load cell
Sainless Steel Alloy Steel CFBHLY spoke type pancake tension 50 ton load cell
Sainless Steel Alloy Steel CFBHLY spoke type pancake tension 50 ton load cell
Sainless Steel Alloy Steel CFBHLY spoke type pancake tension 50 ton load cell
Sainless Steel Alloy Steel CFBHLY spoke type pancake tension 50 ton load cell
Sainless Steel Alloy Steel CFBHLY spoke type pancake tension 50 ton load cell
Specifications
Brand Name :
Shelok
Model Number :
SLK- HGBU
Place of Origin :
Shaanxi, China (Mainland)
MOQ :
1piece
Price :
USD+6~60+Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100+pieces+per month
Delivery Time :
5-8 work days
Packaging Details :
Standard export carton packing or can customized
Range :
200-700kg,1-100t
Safe overload :
150%F.S
Material :
Sainless Steel Alloy Steel
Insulation resistance (M) :
>5000
Operating temperature :
-20~80℃
Description

Description of spoke type pancake tension 50 ton load cell

The load cell is of hub-and-spoke elastomer structure, with features of low shape, anti-bias load, high precision, good strength, easy installation and good symmetry of tension and compression output.

Specification of spoke type pancake tension 50 ton load cell

Sensitivity 2.0±0.05mV/V Operating temperature -20~80℃
Nonlinearity ±0.03%F.S Input resistance 750±20Ω
Hysteresis ±0.03%F.S Output resistance 700±5Ω
Repeatability ±0.03%F.S Safe overload 150%F.S
Creep ±0.03%F.S/30min Zero output ±1%F.S
Insulation Resistance ≥5000MΩ Reference excitation voltage 10-15V
Zero temperature coefficient ±0.03%F.S/10℃ Sensitivity temperature coefficient ±0.03%F.S/10℃

Drawings of spoke type pancake tension 50 ton load cell

HGBU

Applications of spoke type pancake tension 50 ton load cell

Widely used in industrial systems in the force measurement and crane scale, rail scale, hopper scale and other weighing, force measurement of industrial automation measurement and control system.
