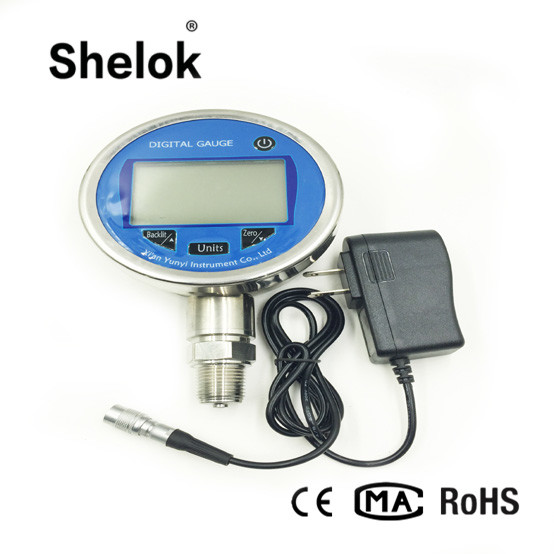

Water RS485 RS232 oil air digital pressure gauge manometer 100mm
Water RS485 RS232 oil air digital pressure gauge manometer 100mm
Specifications
Brand Name :
Shelok
Model Number :
YK-100
Place of Origin :
Shaanxi, China (Mainland)
MOQ :
1piece
Price :
USD+120~150+pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100+pieces+per month
Delivery Time :
5-8 work days
Packaging Details :
Standard wooden box or can be customized
Measuring range :
-100KPa ~260MPa
Accuracy :
0.02,0.05 ,0.1 ,0.2 ,0.4 ,0.5
Signal Output :
RS485,RS232,ACI,4~20mA
Process Connection :
M20×1.5, 1/4NPT, 1/2NPT
Ambient temp :
-10~80℃
Relative humidity :
<95%
Description

YK series of precision digital pressure gauge is based on decades of our digital form on technological innovation for metering industry tailored a high precision and high stability of the digital pressure gauge.

Application

Calibrate common pressure gauge
Calibrate precision pressure gauge
Calibrate blood pressure gauge and other pressure instrument
Measure precise pressure

Feature

1,Micro power consumption, high accuracy, high resolution of five bit digital LCD display;
2, Intelligent calibration, linear repair, two second magnetic pen induction zero adjustment
3,Pressure unit:MPa,KPa,Pa,mBar,Bar,Psi,mmH2O,mmHg
4,Can display online dynamic pressure curve, peak recording function, etc. (optional) ;
5,Optional functions: RS485 output/ 4-20mA output/ USB interface/ memory function (optional)

Item
Water oil air digital pressure gauge
Pressure Range
-100KPa ~260MPa(optional)
Signal Output
RS485,RS232,ACI,4~20mA
Accuracy
0.02,0.05 ,0.1 ,0.2 ,0.4 ,0.5
Display
5 digital dynamic display and Simulation of light indicator
Overload
1.5-3 times of full scale
Turn off the current
less than 10 A
Power supply
7.2V high energy lithium battery or rechargeable battery
Medium Temp
-40℃~90℃
Process Connection
M20×1.5, 1/4NPT, 1/2NPT optional
Ambient temp
(-10~80)℃
Relative humidity
<95%
Atmospheric pressure
(86~106)KPa
Storage temp
(-20~70)℃
