Description of stainless steel kpa mmH2O dual micro vacuum capsule pressure gauge

Capsule Pressure Gauges use diaphragm as a sensitive element to measure micro pressure. Measurement corrode copper alloy, non-explosive gas micro-pressure and negative pressure .Widely used in ventilatio boilers, other similar devices on gas piping, combustion devices.

Capsule Pressure Gauges measuring range -80 ~ 60000Pa, but need to use different ranges of diaphragm pressure gauge.Depending on the pressure, the pressure in -1600Pa ~ 60000Pa suggested the use of disc diaphragm pressure gauge, if the pressure in -80Pa ~ 1000Pa suggested the use of the middle of the rectangular diaphragm pressure gauge, if the pressure in -80Pa ~ 1000Pa suggested the use of the middle of the rectangular diaphragm
pressure gauge.

Structure priciple

Capsule Pressure Gauges consist of the measuring system (including joint, bellows, etc.), transmission (including pull-bar mechanism, gear transmission mechanism),indicating parts (including pointer and dial) and housing (including Case, bushing and tables glass) .Instrument working principle is based on a bellows under pressure measured medium, its free end produce the corresponding elastic deformation and then the transmission gear transmission mechanism and to enlarge the pointer fixed on the gear shaft will be measured by value indicated on the dial.There are zero means you can easily adjust the zero position.

Specification of stainless steel kpa mmH2O dual micro vacuum capsule pressure gauge

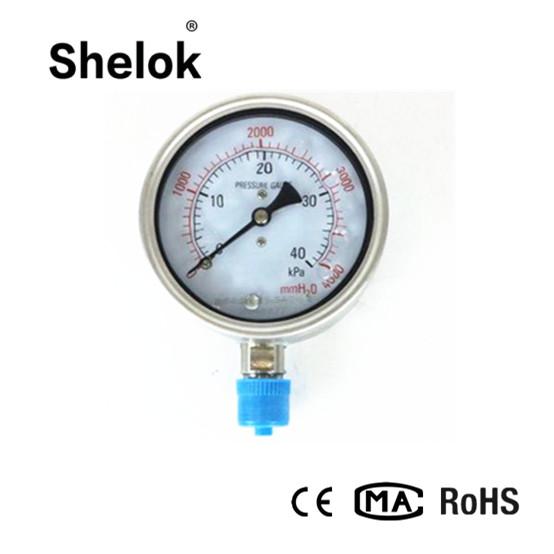

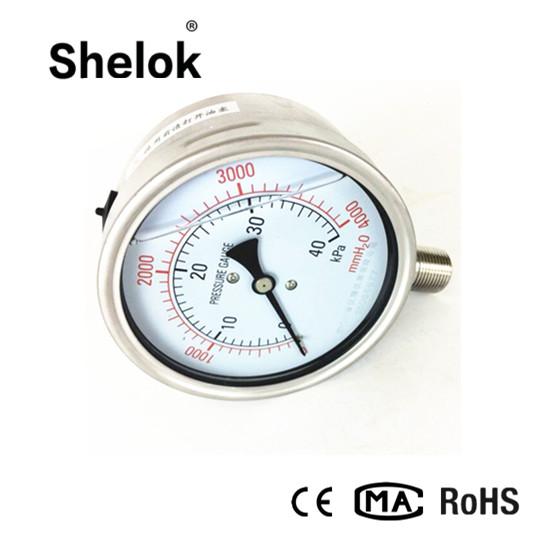

Detailed Images of stainless steel kpa mmH2O dual micro vacuum capsule pressure gauge

Applications of stainless steel kpa mmH2O dual micro vacuum capsule pressure gauge

Ordinary capsule pressure gauge is suitable for the measurement of copper alloy has no corrosion, no explosion risk of micro pressure and negative pressure;Stainless steel capsule pressure gauge for boiler ventilation and gas medium micro pressure and negative pressure.

Selection Guide of stainless steel kpa mmH2O dual micro vacuum capsule pressure gauge

Y 1 2 - 3 4 / 5 / 6 / 7 / 8 / 9

Y - Pressure measuring instrument

1 - Element type:

E - capsule

2 - Function:

Z - Resistance

F - Antisepsis

FN - Antisepsis Heat shock

XC - Magnetic snap action electric contact

SZ - Three pointer

3 - Dial diameter:

60 - 60mm

75 - 75mm

100 - 100mm

150 - 150mm

4 - Case material:

H - All stainless steel

S - all plastic

B - explosive-proof

5 - Mounting

Z - Axial(Back)

J - Radial(Bottom)

ZT - Axial(Back connection with edge)

JT - Radial(Bottom connection with edge)

6 - Temperature

S - Standard(-40~70℃)

H - High temperature( 0~200℃)

7 - Wetted part material:

316L - Stainless steel

M - Monel metal

HC - Hastelloy(H276C)

Ta - Tantalum

FP - F4 Plated

FL - F4 Lining

8 - Measuring range:

-1.6,2.5,4,6,10,16,25,40,60~0~1.6,2.5,4,6,10,16,25,40,60KPa

-500~0~250,500Pa

9 - Connection:

Thread

Flange(Standard,type,material)

10 - Movemetnt:

C - Coopper alloy

S - Stainless steel
