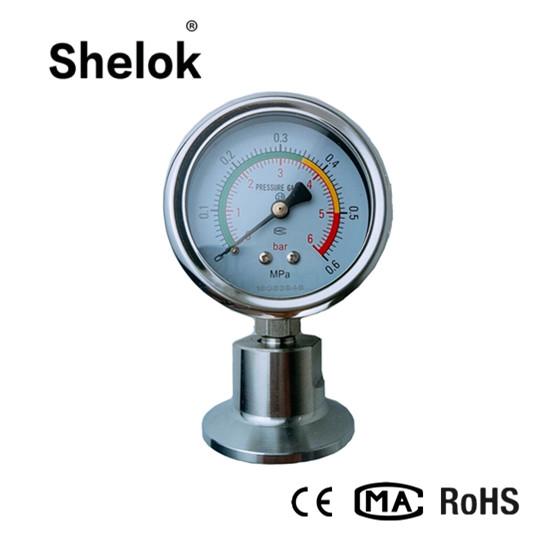

Description of all stainless steel clamp diaphragm seal sanitary pressure gauge with visual alarm

Diaphragm pressure gauges are suitable for measuring medium pressure measurements of strong corrosion, high temperature, high viscosity, easy crystallization, easy solidification, solid floats, and where it is necessary to avoid direct measurement of the medium into the universal pressure gauge and to prevent deposit build-up and easy cleaning.
The structural principle is that when the pressure P of the measuring medium acts on the diaphragm, the diaphragm is deformed, and the sealing liquid of the pressure measuring system of the pressure gauge is compressed to form a pressure of P-ΔP. When the rigidity of the diaphragm is sufficiently small, ΔP is also small, and the pressure generated by the pressure gauge pressure measuring system is close to the pressure of the measuring medium.

Specification of all stainless steel clamp diaphragm seal sanitary pressure gauge with visual alarm

Detailed Images of all stainless steel clamp diaphragm seal sanitary pressure gauge with visual alarm

Applications of all stainless steel clamp diaphragm seal sanitary pressure gauge with visual alarm

Diaphragm pressure gauge and shockproof diaphragm pressure gauge is a fully sealed indirect measuring pressure gauge. It is mainly used to measure the corrosive medium pressure of gas, liquid, acidity, alkalinity, hydroformylation and chloride. . At the same time, the shockproof diaphragm pressure gauge can be used in places with severe environmental vibration.
Diaphragm pressure gauges are mainly used for measuring the pressure of fluid medium in the production process of petrochemical, alkali, chemical fiber, dyeing, pharmaceutical, food and manufacturing industries.

Selection Guide of all stainless steel clamp diaphragm seal sanitary pressure gauge with visual alarm

Y 1 2 - 3 4 / 5 / 6 / 7 / 8 / 9

Y - Pressure measuring instrument

1 - Element type:

T - bourdon tube

2 - Function:

Z - Resistance

F - Antisepsis

FN - Antisepsis Heat shock

XC - Magnetic snap action electric contact

SZ - Three needle

3 - Dial diameter:

60 - 60mm

100 - 100mm

150 - 150mm

4 - Hosing material:

H - All stainless steel

S - all plastic

B - explosive-proof

5 - Isolator connection:

Z- Direct connect(medium temperature<80℃)

ZN - damper(medium temperature<80℃)

SR - radiator(medium temperature<200℃)

YL - rigid pipe connection(<200℃)

Rl1/2/4 - hose connection(hose length:1,2,4m)

GL - horn line connection(<150℃)

GZL - overload protector(<80℃)

6 - Isolator type:

MT - Thread

MF1 - Flange

MF2 - Open flange

MF4 - adjustable angle

MF5 - Into type,

MF6 - Clamp type

MF7 - Nut type

MF8 - One piece welding

MF9 - Pipeline type

7 - Diaphragm material:

316L - Stainless steel

M - Monel l metal

HC - Hastelloy(H276C)

Ta - Tantalum

FP - F4 Plated

FL - F4 Lining

8 - Measuring range:

-0.1~0,0.06,0.15,0.3MPa

-0.1~0.5,0.9,1.5,2.4MPa

0~0.1,0.16,0.25,0.4,0.6MPa

0~1,1.6,2.5,4,6MPa

0~10,16,25,40,60,100MPa

9 - Connection:

Thread

Flange(Standard,type,material)

E. g. YTF - 100H / GL /MF2 / Ta / 0-25MPa /HG2020592-97 DN25 PN1.6RF / 304

Stainless steel diaphragm seal pressure gauge,horn line connection,open flange raised-face,Ta diaphragm,measuring range is 0-25MPa,flange standard is HG2020592-97 DN25 PN1.6RF,flange material is SS304
