Specifications
Brand Name :
Shelok
Model Number :
SLK-MF5000
Place of Origin :
Shaanxi, China (Mainland)
MOQ :
1piece
Price :
USD+720~930+piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100+piece+per month
Delivery Time :
4-7 work days
Packaging Details :
Standard carton packing or can customized
Accuracy :
±(1.5+0.5FS)%
Environment Temperature :
-20 ~ +60 ℃
Flow channel :
3 ~ 19 mm
Output :
4 ~ 20 mA; RS485; Pulse
Description

Description of the 4-20mA nitrogen gas mass flow meter:

4-20mA nitrogen gas mass flow meter are specially designed for small pipe flow monitoring and control. The series can measure gas flow in a pipe diameter as small as 3 mm,but not over 19 mm. With the self-flow conditioning feature of the MEMS sensor package, the 4-20mA nitrogen gas mass flow meter feature an extremely low pressure loss compared to the traditional by-pass thermal mass flow meters in this application scope. The accuracy of the 4-20mA nitrogen gas mass flow meter are generally ±(1.5+0.2FS)% or better depending on the requests. The 4-20mA nitrogen gas mass flow meter can work at an environment of -20 to 60 C and pressure up to 1.5 MPa.

Features of the 4-20mA nitrogen gas mass flow meter:

·Highly sensitive,measuring as low as 8mm/sec,and as 65m/sec with a single assembly
·Directly sense mass flow using thermal mass flow principle
·Propriety MEMS sensor package design for better reliability
·Standard 12~24VDC power supply
·Low pressure loss forreducing energy cost
·Industrial standard Modbus protocol for easy networking and remote control

Specification of the 4-20mA nitrogen gas mass flow meter:

MF5000 4-20mA nitrogen gas biogas 3 ~ 19 mm thermal mass flow meter

MF5000 4-20mA nitrogen gas biogas 3 ~ 19 mm thermal mass flow meter

Application of the 4-20mA nitrogen gas mass flow meter:

Applications include semiconductor gas process monitoring and control, hospital oxygen gas monitoring, etc.

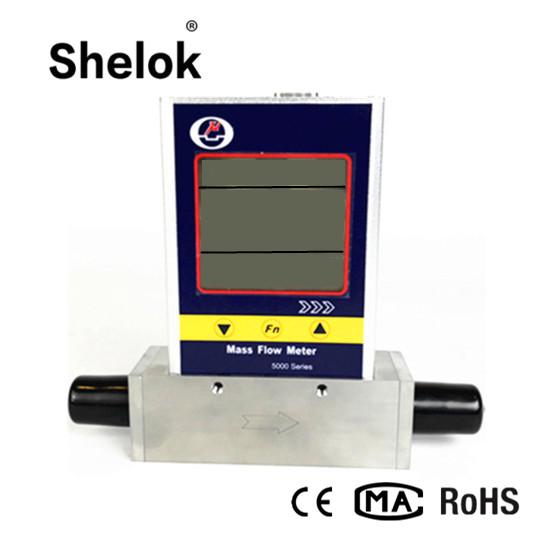

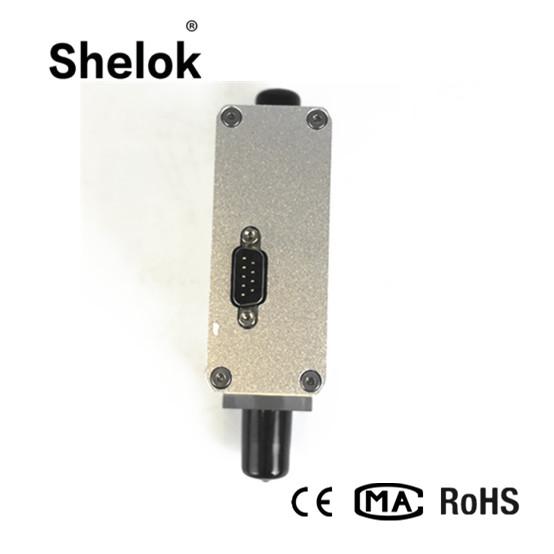

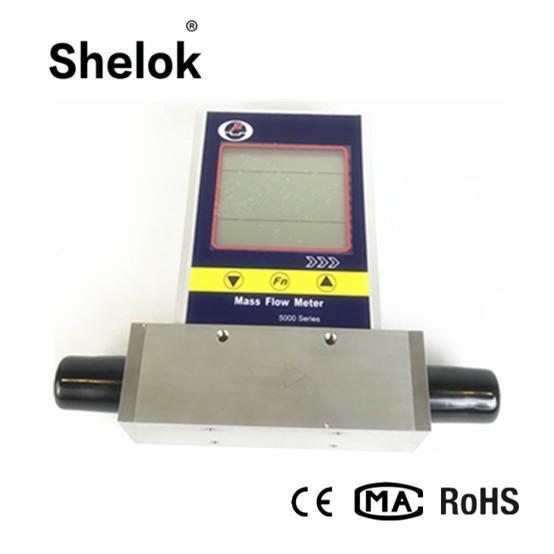

Detailed images of the 4-20mA nitrogen gas mass flow meter:

MF5000 4-20mA nitrogen gas biogas 3 ~ 19 mm thermal mass flow meter

MF5000 4-20mA nitrogen gas biogas 3 ~ 19 mm thermal mass flow meter
