Stainless Steel Adjustable Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves
Stainless Steel Adjustable Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves
Specifications
Brand Name :
Shelok
Model Number :
SLK-YR31
MOQ :
1pcs
Price :
USD+158-253+piece
Payment Terms :
T/T, Western Union, MoneyGram，Paypal
Supply Ability :
100+pieces+per month
Delivery Time :
3-15working days
Packaging Details :
Standard export package or according to clients' requirements
Max inlet pressure :
3000psi, 6000psig
Outlet pressure :
0-250psig, 0-500psig, 0-1500psig, 0-3000psig
Safety testing pressure :
1.5 times of maximum inlet pressure
Description

Description

SLK-YR31 series back pressure regulator is with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

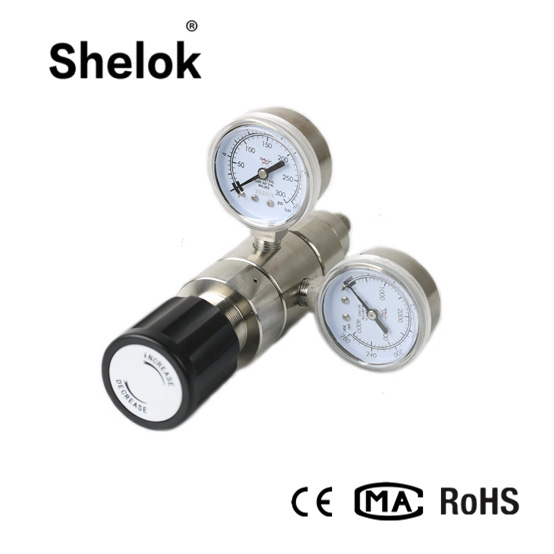

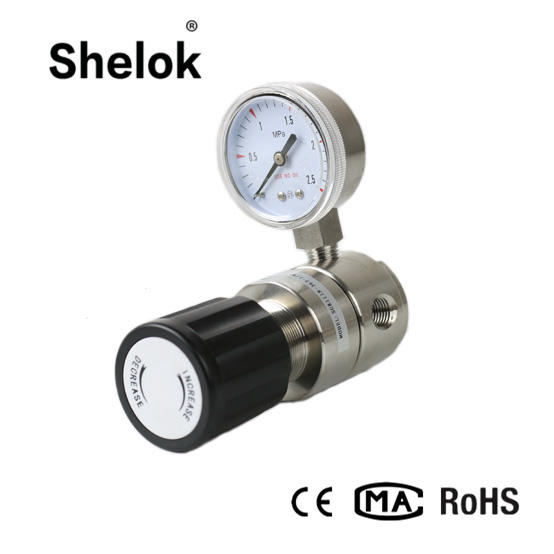

Detailed Images

Stainless Steel Adjustable Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing ValvesStainless Steel Adjustable Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves

Specification

Back Pressure Regulator, Pressure Reducing Valves
Maximum Input Pressure 6000 psi
Safety test pressure 1.5 times max inlet pressure
Applicable temperature -40℉~+165℉(-40℃~+74℃)
Leak rate 2x10-8 atm cc/sec He
CV value 0.2
Weight 1.5 kg
Package size 17cm*17cm*17cm
Material Stainless steel

Features

1. Single stage type relief structure

2. Maternal and diaphragm use hard seal form

3. The internal structure easy to purge and with filter

4. Can use panel or wall mounting

Applications

Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment

Selection Guide

Model No. Valve Material Inlet Pressure Pressure Gauge Inlet Port Outlet Port
YR31 316L 0 ~ 500PSI | With Gauge(Mpa) 1/4" NPT(F) 1/4" NPT(F)
0 ~ 100PSI | With Gauge(PSI/Bar) 3/8" NPT(F) 3/8" NPT(F)
0 ~ 1500PSI | Without Gauge 1/2" NPT(F) 1/2" NPT(F)
0 ~ 2500PSI 1/2" NPT(M) 1/2" NPT(M)
0 ~ 3000PSI 3/8" Fitting 3/8" Fitting
0 ~ 6000PSI 1/2" Fitting 1/2" Fitting
Or custom Or custom

Outline drawing

Product tags

stainless steel adjustable pressure relief valve

,

high pressure safety valves

,

pressure safety valve design
