Back pressure regulator back pressure valve
Back pressure regulator back pressure valve
Back pressure regulator back pressure valve
Back pressure regulator back pressure valve
Back pressure regulator back pressure valve
Back pressure regulator back pressure valve
Specifications
Brand Name :
Shelok
Model Number :
SLK-YR32
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD+198-298+piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100+piece+per month
Delivery Time :
5-10 working days
Packaging Details :
Standard export carton package
Material :
Stainless Steel
CV :
0.2
Thread :
NPT "1/4 (F)
Description

Description of back pressure regulator back pressure valve

This kind of stainless steel back pressure regulator is with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

Specification of back pressure regulator back pressure valve

Maximum input pressure 6000 psi Controlled back pressure 0-6000psi
Safety test pressure 1.5 times max inlet pressure Ambient temperature -40℉~+165℉(-40℃~+74℃)
Leak rate 2x10-8 atm cc/sec He CV value 0.2
Weight About 1.5 kg Dimension 17cm*17cm*17cm
Material Stainless steel

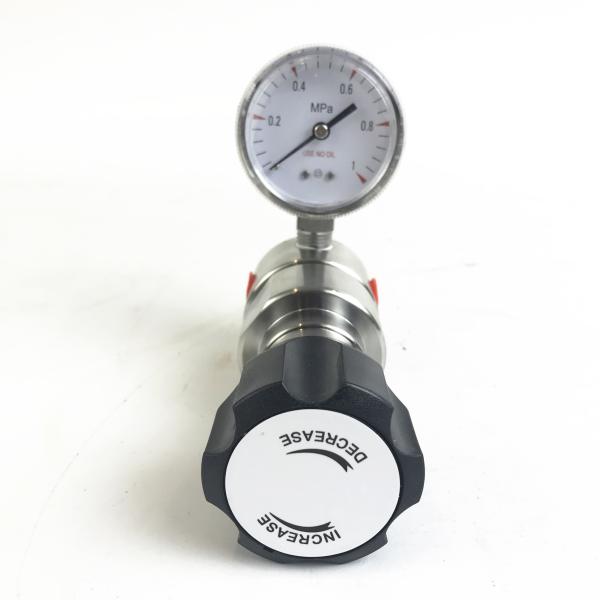

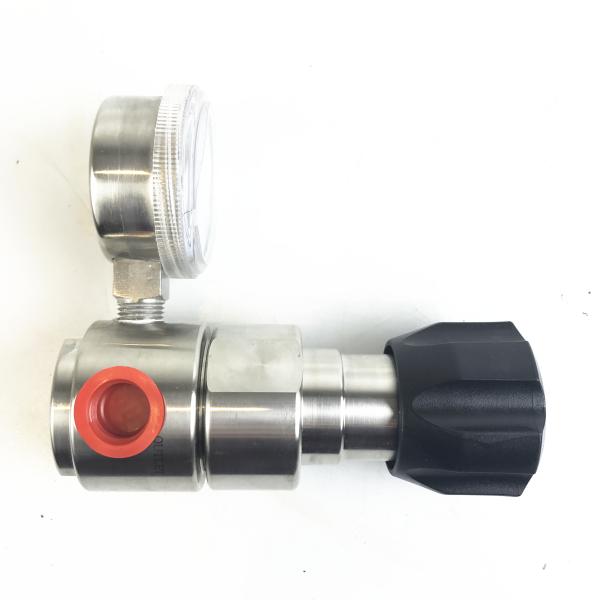

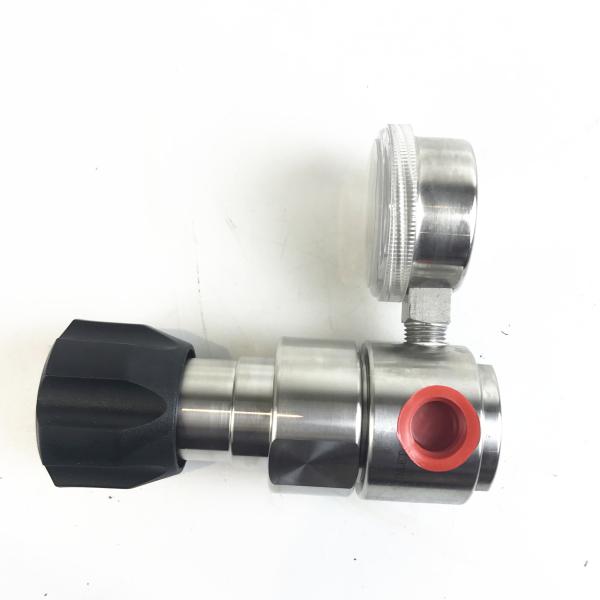

Detailed Images of back pressure regulator back pressure valve

Features of back pressure regulator back pressure valve

1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting

Selection Guide of back pressure regulator back pressure valve

Inlet pressure Pressure gauge Inlet port Outlet port

l 0-500psig

l 0-100psig

l 0-1500psig

l 0-2500psig

l 0-3000psig

l 0-6000psig

l With gauge (mpa)

l With gauge (psig/bar)

l Without gauge

1/4'' NPT(F)

3/8'' NPT(F)

1/2'' NPT(F)

1/2'' NPT(M)

3/8'' fitting

1/2'' fitting

Or custom

1/4'' NPT(F)

3/8'' NPT(F)

1/2'' NPT(F)

1/2'' NPT(M)

3/8'' fitting

1/2'' fitting

Or custom
