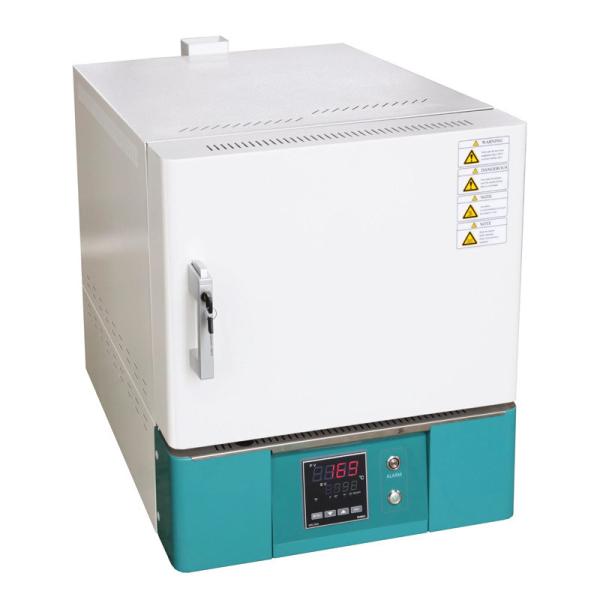

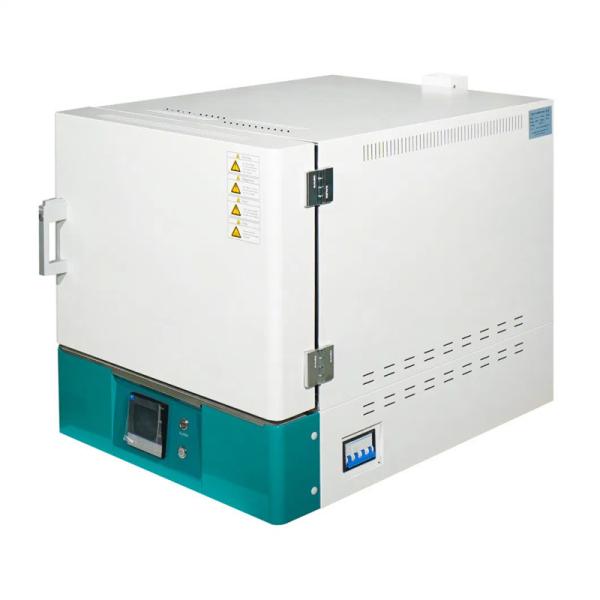

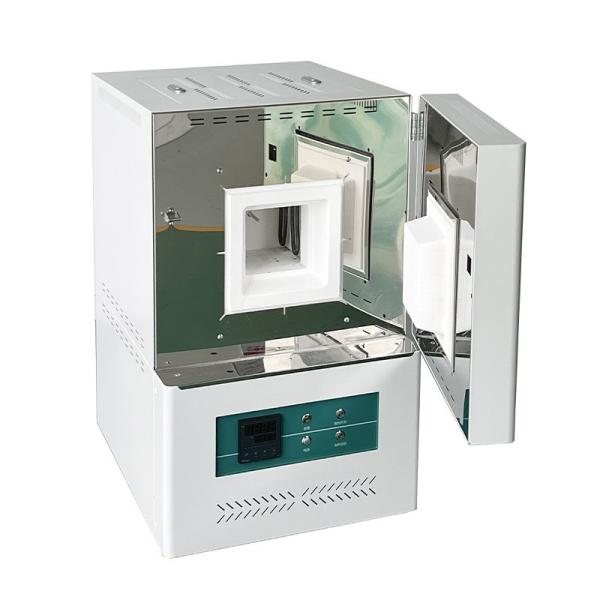

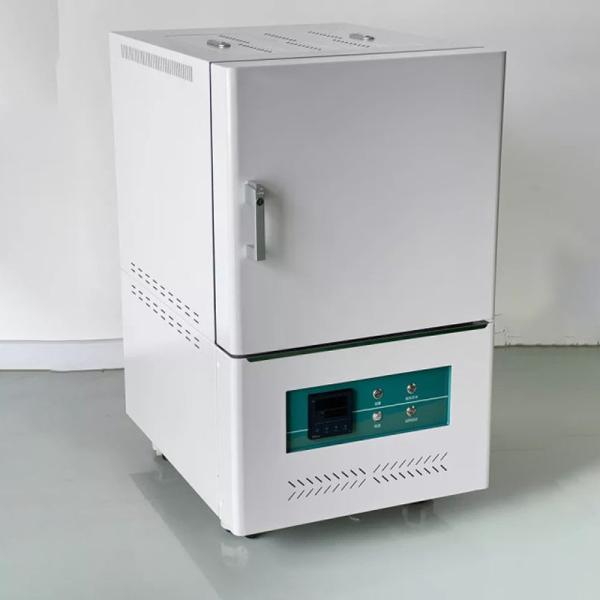

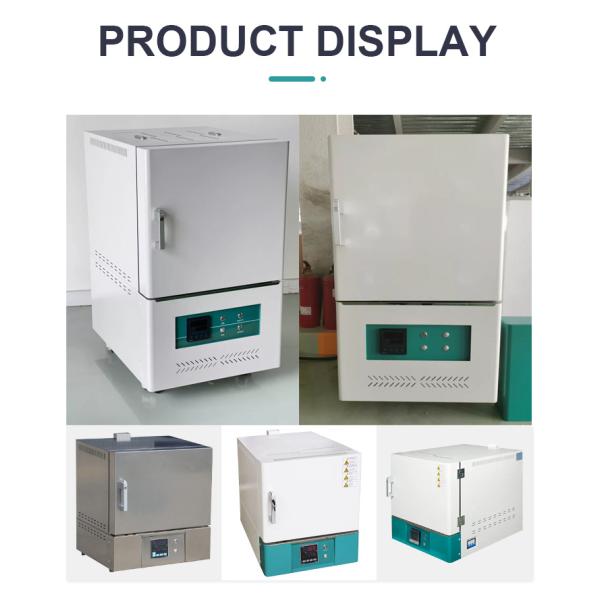

1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
Specifications
Warranty :
1 years
Classification :
Laboratory Heating Equipments
Customized support :
OEM, ODM
Brand Name :
shenlan
Model Number :
SX3
Place of Origin :
Henan, China
Size :
450*685*600mm
Material :
Ceramic fibre
Weight :
33
Voltage :
AC220V/6.6V, 220V/ 110V Optional
Type :
Laboratory Heating Equipments
Keywords :
Ceramic Fiber Muffle Furnace
Temp range :
100-1200 C
Usage :
Higher Temperature Heating Treatment
Sensor :
Platinum rhodium sensor
Inner chamber size :
2L/120*200*80mm
chamber material :
ceramic fiber
Power :
1500W
Price :
$1,700.00/sets 1-4 sets
Description
Products Description

Product Description:

1. Mirror stainless steel mouth, long-term use will not change color.
2. Imported double insulated ceramic liner, stable performance
3. Vacuum forming polycrystalline mullite fiber furnace, high efficiency insulation.
4. In the double shell, the air sleeve is insulated, and the double guiding air passage.
5.High-precision micro-computer controller and precision sensor are perfectly integrated, and the temperature is accurate.

SX4 model also has the following characteristics:
1.Import time control system and high precise sensor with sensitive, response, high precision and good stability.
2.Adding exhaust devices is beneficial to ashing.
3. Split design, circuit detachable, easy to maintenance and repair.
4. P model is program temperature control type. Program temperature controller can programme multistage program.
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor

Model
SX3-2.5-12
SX3-5-12
SX3-8-12
SX3-10-12
SX3-2.5-12B
SX3-5-12B
SX3-8-12B
SX3-10-12B
SX4-2-12
SX4-7-12
SX4-12-12
SX4-16-12
SX4-2-12B
SX4-7-12B
SX4-12-12B
SX4-16-12B
SX4-2-12P
SX4-7-12P
SX4-12-12P
SX4-16-12P
SX4-2-12PB
SX4-7-12PB
SX4-12-12PB
SX4-16-12PB
Heating mode
Alloy wire heating in three sides left; right; top side.

Function
Temp. Range
100-1200ºC
Temp. Resolution Ratio
1ºC
Temp. motion
±1ºC
Temp.Rising time to max temp
≤30min

Structure
Chamber material
Ceramic fiber
Outer shell
cold rolling steel electrostatic spraying exterior; B model: stainless steel
Insulation layer
Ceramic fiber
Heater
Alloy heating wire
Power rating
1.5kW
3.0kW
4.5kW
6.0kW
Exhaust hole
φ30mm(chimney size 80*60mm)

Controller
Temp. control mode

SX3 Type : domestic Xianmen Yudian single-stage temperature controller
SX4 Type:Japaness conduction single-stage temperature controller
SX4-P:Japaness Fuji color LCD 64- segment programmed temperature controller
Temp. setting mode
Touch button setting
Temp. display mode
Measuring temperature: LED upper row, setting temperature: the lower row
Timer
Timing Function:0~9999 min;SX4-P:Timing Function, 99 hours and 59 minutes(with Timing Waiting Function)
Operation function
Fixed temperature operation, timing function, auto stop.
Additional function
Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory
Sensor
SX3:Platinum-rhodium sensor;SX4:High precision K type sensor
Safety device
Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature
protection,thermocouple failure

Specification
Inner Chamber size
(W*L*H)(mm)
120*200*80
200*300*120
200*300*200
250*400*160
Exterior size (W*L*H)(mm)

450*685*600
530*785*640
530*785*720
600*895*700
Packing size (W*L*H)(mm)
580*775*730
660*875*770
660*875*850
730*985*830
Volume
2L
7L
12L
16L
Current rating (50/60HZ)
AC220V/6.6A
AC220V/13.6A
AC220V/20.4A
AC380V/9.9A
NW/GW (kg)
33/37
45/50
62/68
77/96
optional type
LCD program temperature control device with USD date storage
production shop
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
Product packaging
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
Company Profile
1200 Degrees Laboratory Electric Heating Muffle Furnace with Platinum Rhodium Sensor
FAQ

Q1: Why Choose us?

The industry has been operating for over 20 years, with abundant upstream manufacturer resources, efficient supply chain management, zero complaint after-sales service, and efficient team collaboration to ensure a good cooperation experience for customers.

Q2: OEM,ODM acceptable or not?

Absolutely Yes

Q3:What's kind of Payment terms for customer choosing?

T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...

Q4:Can online video inspection before shipment?

Absolutely no problem

Q5: what's the MOQ ? Sample order is OK?

MOQ:1 set, sample order is no problem

Q6:What's kind of shipment for customer choosing?

Usually ship by sea, by air, by international express . We can also provide reasonable solutions according to your transportation requirements

Q7: What kind of guarantee do you offer?

We provide 1 year warranty for all our items.

Q8: How long is the quotation valid?

In general ,our prices are valid for one month from the date of quotation. Prices will be adjusted appropriately based on price fluctuations in raw materials and market changes.
