Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Specifications
Warranty :
1 year
Classification :
Laboratory Heating Equipments
Customized support :
OEM, ODM
Brand Name :
shenlan
Model Number :
LC-SK4-35-12TP
Place of Origin :
Henan, China
Size :
650*450*670mm
Material :
Aluminium oxide
Weight :
80kg
Voltage :
220V
Furnace temperature :
1200℃
Machine power :
3kW
Furnace tube size :
40*350mm
Maximum pressure :
0.02mpa
Furnace tube material :
Quartz tube
Furnace tube weighing :
5kg
Heating element :
Resistance wire
Price :
$2,800.00/sets 1-4 sets
Description
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Model number
LC-SK4-20-12TP
LC-SK4-35-12TP
LC-SK6-35-12TP
Maximum temperature
1200℃
Power/Frequency
220V/50Hz
Machine power
2kw
3kw
Furnace tube size（∅×L）
40*205mm
40*350mm
60*350mm
Maximum pressure
0.02mpa
Furnace tube material
Quartz tube
Furnace tube weighing
5kg
Heating element
Resistance wire
Heating rate
The fastest is 20-25℃/min
Rated temperature
1200℃
Operating temperature
≤1100℃
Temperature range
≤1100℃
Temperature control accuracy
±1℃
Thermoelectric couple
Type K thermocouple
Material carrier material
Quartz crucible
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature

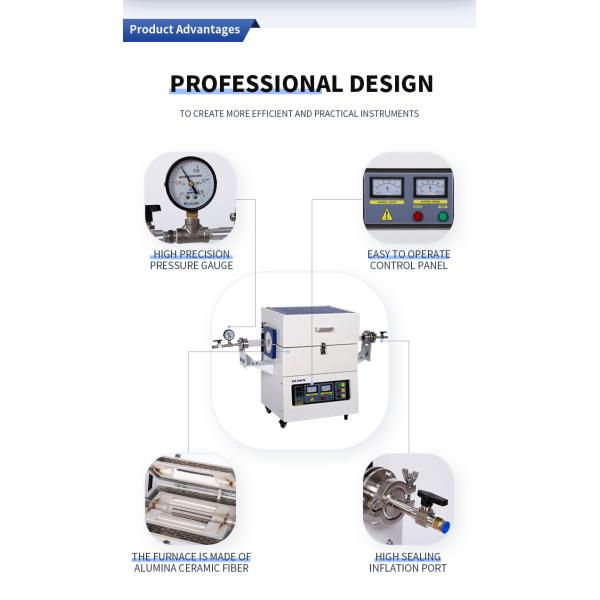

Product characteristics
1、The use of alumina ceramic fiber makes the furnace temperature more uniform, more accurate temperature control and safer use

2、Professional cooling device, more stable operation and longer service life

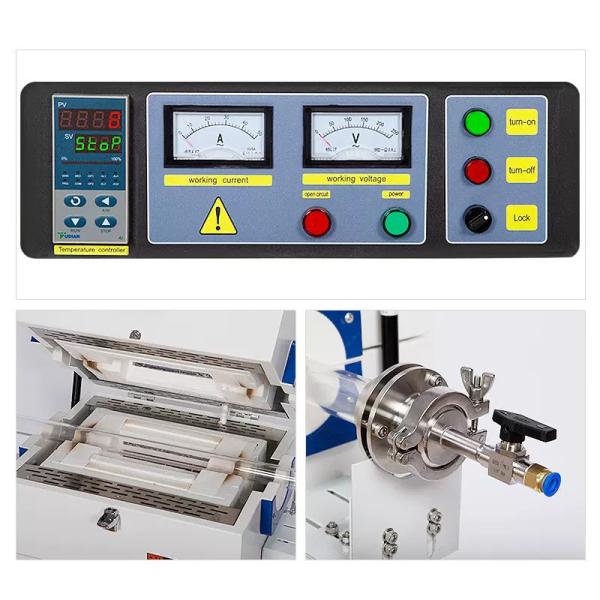

3、Simple and easy to operate control panel, more efficient and convenient to use

4、Furnace size can be customized
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
Industrial Tube Resistance Furnace PECVD Heating Equipment for 1200C High Temperature
