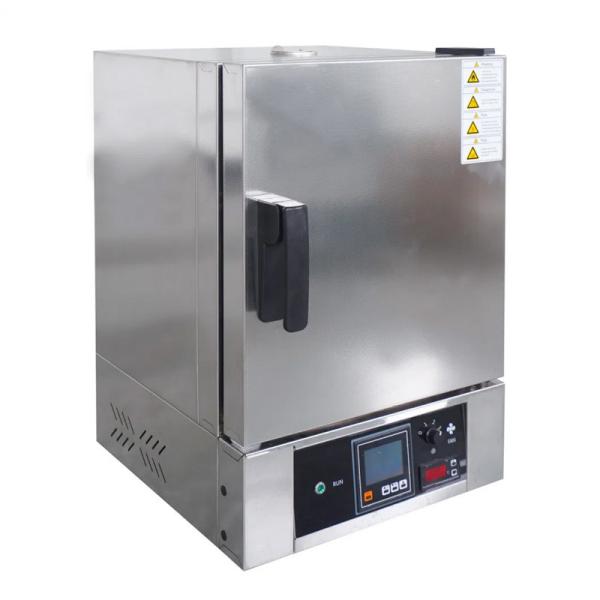

Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Specifications
Warranty :
1 year
Classification :
Laboratory Heating Equipments
Customized support :
OEM, ODM
Brand Name :
shenlan
Model Number :
WGL-30B
Place of Origin :
Henan, China
Cycle Mode :
Forced convection
Temp. Range :
RT+10-300℃
Temp. Resolution Ratio :
0.1℃
Inner Chamber :
Mirror Stainless Steel
Outer Shell :
Cold rolling steel electrostatic spraying exterior
Heater :
Stainless steel heater
Exhaust hole :
35mmtop(with function of test hole)
Temp. control mode :
Two temperature section PID intelligent
Temp. setting mode :
Touch button setting
Operation function :
Fixed temperature operation, timing function, auto stop.
Price :
$325.00/sets 1-19 sets
Description
Products Description

Uses:

This equipment is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific
research institutions, and health and medicine units etc.

Characteristics:

1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2. PID controller, with over-temperature protection function.
3. With Oven/Incubator change switch, fan switch; and high temperature blast motor, LED digital display
4. New anti-hot handle.

WGLL-BE series have the following characteristics other than the above functions.

1. LCD temperature controller.
2. 4 grades speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. High precision digital independent temperature limiter.
5.304:SUS304 Stainless Steel Body.
Model
WGL-30B
WGL-
45B
WGL-
65B
WGL-
85B
WGL-
125B
WGL-
230B
WGL-
625B
WGLL-
30BE
WGLL-
45BE
WGLL-
65BE
WGLL-
85BE
WGLL-
125BE
WGLL-
230BE
WGLL-
625BE
WGLL-
30BE
(304)
WGLL-
45BE
(304)
WGLL-
65BE
(304)
WGLL-
85BE
(304)
WGLL-
125BE
(304)
Cycle Mode
Forced convection
Function
Temp. Range
RT+10-300ºC
Temp. Resolution
Ratio
0.1ºC
Temp. Motion
±1ºC
Temp. Uniformity
±2.5%
Structure
Inner Chamber
Mirror Stainless Steel
Outer Shell
Cold rolling steel electrostatic spraying exterior
Insulation layer
High quality rock wool board(with CE)
Heater
Stainless steel heater
Power rating
0.8kW
1.2kW
1.6kW
2.0kW
2.3kW
3.0kW
5.0kW
Exhaust hole
φ35mmtop(with function of test hole)
Rear
exhaust
Top double
exhaust
Controller
Temp. control
mode
Two temperature section PID intelligent
Temp. setting mode
Touch button setting
Temp. display mode
B model: Measuring temperature: display on the four digital tubes
upper row, setting temperature: display on the lower row
BE model: Measuring temperature display on upper LCD screen,
setting temperature display on the lower row
Timer
0-9999min(with timing wait function)
Operation function
Fixed temperature operation, timing function, auto stop.
Additional function
B model: Sensor deviation correction, temperature overshoot self-
tuning, internal parameter locking, power-off parameter memory
BE model: High precision digital independent temperature limiter, 4
grade 3speed adjustable-speed fan (230 and 625model BE without fan speed adjustor),sensor deviation correction, temperature
overshoot self-
tuning, internal parameter locking, power-off parameter memory
Sensor
pt100
Specification
Inner Chamber size
(W*L*H)(mm)
310*310
*310
350*350
*350
400*360
*450
450*420
*450
500*450
*550
600*500
*750
660*760
*1250
Exterior size
(W*L*H)(mm)
450*500
*690
490*540
*730
540*550
*830
590*610
*830
640*640
*930
735*835*1115
890*925
*1830
Packing size
(W*L*H)(mm)
550*585
*845
590*625
*885
640*635
*985
690*695
*985
740*725
*1085
865*945*1265
1000*10
80*2000
Volume
30L
45L
65L
85L
125L
230L
625L
Max Shelf number
5
6
8
8
11
17
11
Load per rack
15kg
Shelf space
40mm
100mm
Power rating
(50/60HZ)
AC220V/3.6A
AC220V/5.5A
AC220V/7.2A
AC220V/9.0A
AC220V/10.5A
AC220V/13.6A
AC380V/13.2A
NW/GW (kg)
33/37
37/43
44/49
50/56
60/66
94/120
120/160
Accessory
Shelf
2
Shelf frame
4
optional accessories
B model: Shelf;
BE model: Shelf, RS485 Interface, Printer, Program Temperature Control Device, USB Data Storage
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
production shop
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Product packaging
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
Company Profile
Electric Blast Drying Oven for Laboratory Fruit Drying Electrostatic Spraying Coating
FAQ

Q1: Why Choose us?

The industry has been operating for over 20 years, with abundant upstream manufacturer resources, efficient supply chain management, zero complaint after-sales service, and efficient team collaboration to ensure a good cooperation experience for customers.

Q2: OEM,ODM acceptable or not?

Absolutely Yes

Q3:What's kind of Payment terms for customer choosing?

T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...

Q4:Can online video inspection before shipment?

Absolutely no problem

Q5: what's the MOQ ? Sample order is OK?

MOQ:1 set, sample order is no problem

Q6:What's kind of shipment for customer choosing?

Usually ship by sea, by air, by international express . We can also provide reasonable solutions according to your transportation requirements

Q7: What kind of guarantee do you offer?

We provide 1 year warranty for all our items.

Q8: How long is the quotation valid?

In general ,our prices are valid for one month from the date of quotation. Prices will be adjusted appropriately based on price fluctuations in raw materials and market changes.
