Type 3241/3374 Electric Control Valve Samson steel valve for gas and oil use
Type 3241/3374 Electric Control Valve Samson steel valve for gas and oil use
Specifications
Brand Name :
Samson
Model Number :
3241/3374
Certification :
CE EAC
Place of Origin :
Garmany
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, MoneyGram
Supply Ability :
500 Set Per Month
Delivery Time :
7 to 20 Workdays
Packaging Details :
Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
KVS coefficient :
0.1 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10 16 25 40 60 63 80 100 160 200 260
Seat Ø [mm :
1
Ambient temperature :
-40 … +60°C
Material :
Steel
Weight, approx. :
1.8 kg
Degree of protection :
IP 54
Description

Type 3241/3374 Electric Control Valve Samson steel valve for gas and oil use​

Product Introduction

Versatile control valves for industrial applications as well as for heating, ventilation and air-conditioning systems DN 15 to 150 · PN 16 to 40 · Temperatures from –196 to +450 °C
Special features

Linear actuator with 15 mm or 30 mm rated travel

Compact design including electric or optionally mechanical override

Optionally with fail-safe action (actuator stem retracts or extends) for version with electric override

Specifications

Attachment
Pipe or wall mounting
Mounting Position Upright, condensate drainage downwards
Fast mm/s 0.25
Ambient temperature -40° to + 60
Application Angle Valve, Global Valve

Power supply
230 V (+10/–15 %), 50 Hz
230 V (+10/–15 %), 60 Hz
24 V (+10/–15 %), 50 Hz
24 V (+10/–15 %), 60 Hz
Duty type
S1 - 100 % according to EN 60034-1
Degree of protection
IP 54 according to EN 60529,
IP 65 with cable glands (can be retrofitted) 1)
Suspended mounting not permitted
Signal pressure (output)
0 bar up to the capacity of the supply pressure · Can be limited to approx. 2.3 bar by software
Permissible ambient temperature
–20 to +80 °C
–25 to +80 °C with metal cable gland
The limits in the test certificates additionally apply for explosion-protected versions
Influences
Temperature: ≤0.15 %/10 K
Effect of vibration: ≤0.25 % up to 2000 Hz and 4 g according to IEC 770
Supply air: None

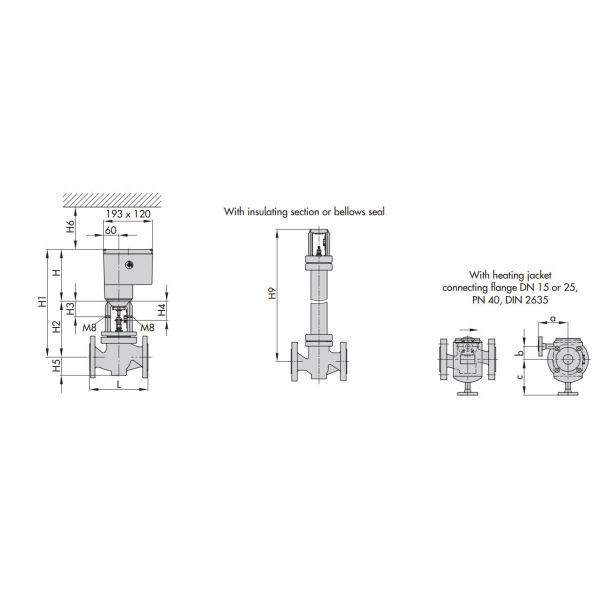

Detailed Image

Type 3241/3374 Electric Control Valve Samson steel valve for gas and oil use

Packaging and Delivery

Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)

The products will be shipped after receiving the deposit or full payment within 15 working days

Our Service

1.Swift delivery
For common parts, we can deliver the goods within 3 days

2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support
Including inspection, repair, and maintenance, we can give all kinds of technical support.

5. Quickly response
Our staffs will keep 24h online and answer your question very quickly.
