Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Shinma
Packaging Details :
As per customer's requirement
Supply Ability :
20 Set/Sets per Year
Price :
$48,000.00/sets 1-2 sets
Application :
drying
Features :
continuous convey
Condition :
New
Production Capacity :
100kg-1500kg
Warranty :
1 Year
Dimension(L*W*H) :
according to the model
Voltage :
220V-380V
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Key Selling Points :
continuous
Weight :
4500 KG
Heating source :
Gas/Steam/hot oil/electricity
material :
SUS304 or SUS16
warranty period :
1 year
Port :
Shanghai
Description

sea tangle vegetables gulfweed sargassum seaweed mesh continuous conveyor band belt dryer machine drying equipment

large evaporation amount sea tangle vegetables gulfweed sargassum seaweed mesh continuous conveyor band belt dryer
The raw materials to be treated should distribute on the conveyer belt through suitable mechanism such as star distributor, swing belt, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to low or from low to up. In this way raw materials can be dried evenly.
FEATURES AT A GLANCE
According to the character that fresh coconut contains water, when belt dryer used for drying, the critical water content is
about 15%, that is constant speed drying is used before reaching the critical water content to remove free water, and after
reaching the critical water content, Speed droop dehydration is used to remove the bound water.
According to the general rules, an assembly line should have three working section ,they are pre-dry(1)constant speed dehydration
(2) Speed droop dehydration(3).During the process (1)and (2) 80% water can be removed, the temperature of raw material will be kept as hot and wet bulb temperature. During the process of (3)20% water can be removed, the temperature of raw material is close to the temperature of exhausted hot air .
PRODUCT SPECIFICATIONS
No
Item
Data
1
moisture evaporation amount
525kg/h
2
operation temputure
80-160℃
3
Initial water contentω1
Finial water contentω2
90%
≤10%
4
Heating source
steam
5
Equipment oversize
17810(L)*4470(W)*3340(H)
6
Effective dry area
45.12m2
7
Total weight
Around 35 T
Other model technical parameters
Sketch of Flow Chart
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum
Why Choose Us
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum

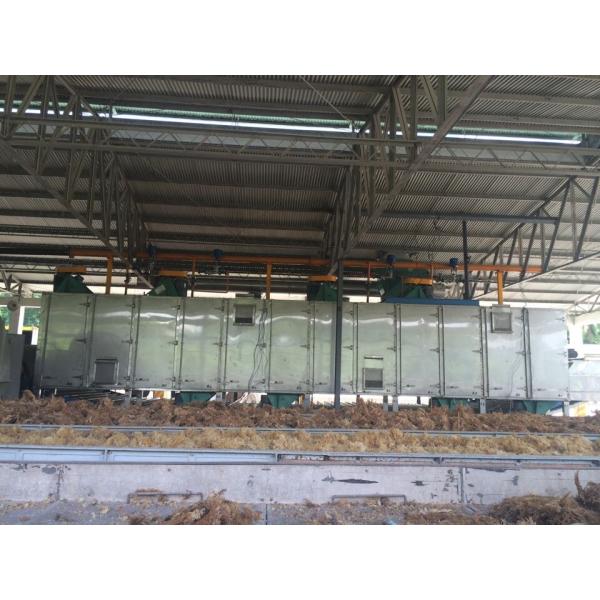

Customer Photos
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum
525kg/H Sea Tangle Coconut Dryer Conveyor Mesh Belt Dryer Machine For Gulfweed Sargassum
