300KG 400KG Industrial Tray Dryer Mushroom Herb Food Hot Air Tray Dryer Oven
300KG 400KG Industrial Tray Dryer Mushroom Herb Food Hot Air Tray Dryer Oven
Specifications
Brand Name :
shinma
Model Number :
CT-C-1
Certification :
ISO9001,ISO14001
Place of Origin :
changzhou
MOQ :
1set
Price :
USD15000-60000/set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
30sets
Delivery Time :
60days
Packaging Details :
nacked packing
Applicable Industries :
Food & Beverage Factory, Fruit and vegetable processing machinery
Type :
Dryer
Voltage :
380V
Power :
9.5KW
Dimension(L*W*H) :
6000*2800*2200MM
Product name :
industrial food dryer
Material :
Stainless steel
Energy :
Energy saving
Application :
Drying fruit&vegetables&seafood
Description

CT industrial cheap price dates mushroom herb food hot air tray dryer drying oven machine

Application

For , chemical, food, agricultural and sideline products, water products, light industry, heavy industry and other industries of the heating and curing, drying and dehydration. Such as raw materials, raw materials, Chinese herbal medicine, extract, powder, granules, powder, pills, water bottles, pigment, dyestuff, dehydration vegetable, dried fruit and melons, sausage, plastic resin, electric elements, paint etc

Descripition

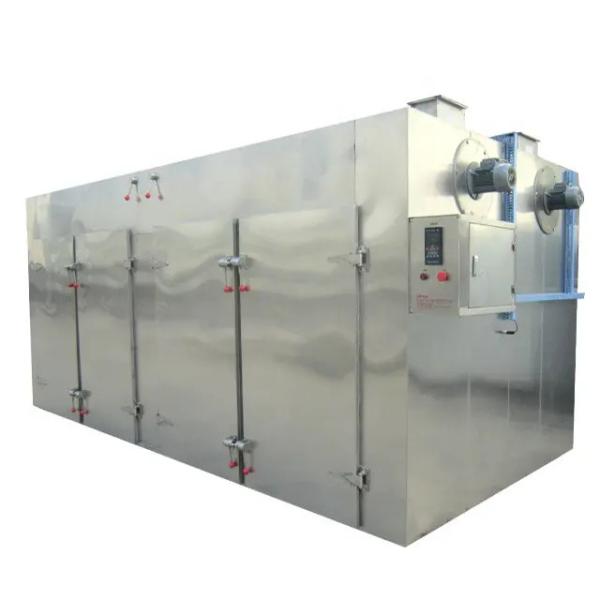

CT-C Hot Air Circulation Oven is initiated by our company and reaches the international level after several updates. This machine overcomes the disadvantages of long drying time, great heat loss. It uses the steam heater or electrical heating organ to create heat and change heat through convective wind to heat up the material.

Meanwhile it renews fresh air and expels wet air. The heat wind can cycle in the oven, so it saves the source. The oven can be used to heating and expel wet air in industry, chemical industry, foodstuff industry, light industry, heavy industry, etc.

Model
CT- C-0
CT- C- IA
CT-C-I
CT-C-II
CT- C-III
CT- C-IV
Drying capacity
(kg)
25
50
100
200
300
400
Heating power
(kw)
9
12
15
30
45
60
Steam heating area(m²)
10
15
20
40
80
100
Blowing rate
(m3/h)
3400
3400
3450
6900
10350
13800
Drying tray
(pcs)
16
24
48
96
144
192
Length × width × height (m)
1.4x1.2x1.6
1.4x1.2x2.0
2.3x1.2x2.0
2.3x2.2x2.0
2.3x3.22x2.0
4.45x2.2x2.0
Trolley
1
1
2
4
6
8

Model Evaporated area(m²)

Effective volume

((m³)

Capacity

(kg/batch)

Radiator Area

(m²)

 Steam (kg/h) Electric Power (kw) Fan Power (kw)

Overall

(mm)

Weight

(kg)
CT-C-0 7.1 1.3 60 15 15 6-9 0.45

1380×12

00×2000

 820
CT-C-Ⅰ 14.1 2.6 120 23 20 15 0.45

2360×12

00×2000

 1580
CT-C-Ⅱ 28.3 4.9 240 48 40 30 0.45 ×2

2260×22

00×2000

 1800
CT-C-Ⅲ 42.4 7.4 360 72 60 45 0.45×3

3240 ×22

00 ×2000

 2210
CT-C-IV 56.5 10.3 500 96 80 60 0.45×4

4280 ×22

00×2770

 2800

300KG 400KG Industrial Tray Dryer Mushroom Herb Food Hot Air Tray Dryer Oven

300KG 400KG Industrial Tray Dryer Mushroom Herb Food Hot Air Tray Dryer Oven300KG 400KG Industrial Tray Dryer Mushroom Herb Food Hot Air Tray Dryer Oven300KG 400KG Industrial Tray Dryer Mushroom Herb Food Hot Air Tray Dryer Oven300KG 400KG Industrial Tray Dryer Mushroom Herb Food Hot Air Tray Dryer Oven300KG 400KG Industrial Tray Dryer Mushroom Herb Food Hot Air Tray Dryer Oven
