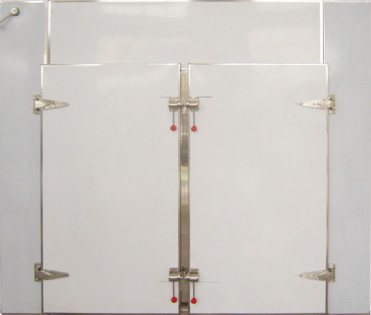

Food Drytech 9.5KW Industrial Tray Dryer Fruit Dehydrator Machine 100KG
Food Drytech 9.5KW Industrial Tray Dryer Fruit Dehydrator Machine 100KG
Food Drytech 9.5KW Industrial Tray Dryer Fruit Dehydrator Machine 100KG
Food Drytech 9.5KW Industrial Tray Dryer Fruit Dehydrator Machine 100KG
Specifications
Brand Name :
shinma
Model Number :
CT-C-1
Certification :
ISO9001,ISO14001
Place of Origin :
changzhou
MOQ :
1set
Price :
USD15000-60000/set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
30sets
Delivery Time :
60days
Packaging Details :
nacked packing
Applicable Industries :
Food & Beverage Factory, Fruit and vegetable processing machinery
Type :
Dryer
Voltage :
380V
Power :
9.5KW
Dimension(L*W*H) :
6000*2800*2200MM
Product name :
industrial food dryer
Material :
Stainless steel
Energy :
Energy saving
Application :
Drying fruit&vegetables&seafood
Description

Industrial tray dryer price drytech dryer fruit machine industrial food dryer dehydrator machine food

Under normal pressure, pure water starts to boil at 100 C, but under vacuum condition, as vapor pressure in the system is lower than that of material surface, boiling point of water will be lower than 100C. For example, when surface pressure decrease to 0.07Mpa, pure water boil at 70C. So even operate under low temperature condition, such vacuum dryer have strong drying intensity.

1. Most of hot air is circled inside the oven. The hot efficiency is highThe energy source can be saved.

2. Enhanced ventilation is used and it is equipped with adjustable airdivider plate inside the oven. Raw materials can be dried evenly. Thehot sources can be steam, hot water, electricity of far infrared.

3. The machine has low noise and stable operation. The temperaturecan be controlled automatically. The installation and maintenanceare very convenient.
4. The applied fields are wide and can be suitable for all kinds of rawmaterials,It is a comprehensive drier

Model
CT- C-0
CT- C- IA
CT-C-I
CT-C-II
CT- C-III
CT- C-IV
Drying capacity
(kg)
25
50
100
200
300
400
Heating power
(kw)
9
12
15
30
45
60
Steam heating area(m²)
10
15
20
40
80
100
Blowing rate
(m3/h)
3400
3400
3450
6900
10350
13800
Drying tray
(pcs)
16
24
48
96
144
192
Length × width × height (m)
1.4x1.2x1.6
1.4x1.2x2.0
2.3x1.2x2.0
2.3x2.2x2.0
2.3x3.22x2.0
4.45x2.2x2.0
Trolley
1
1
2
4
6
8

Model Evaporated area(m²)

Effective volume

((m³)

Capacity

(kg/batch)

Radiator Area

(m²)

 Steam (kg/h) Electric Power (kw) Fan Power (kw)

Overall

(mm)

Weight

(kg)
CT-C-0 7.1 1.3 60 15 15 6-9 0.45

1380×12

00×2000

 820
CT-C-Ⅰ 14.1 2.6 120 23 20 15 0.45

2360×12

00×2000

 1580
CT-C-Ⅱ 28.3 4.9 240 48 40 30 0.45 ×2

2260×22

00×2000

 1800
CT-C-Ⅲ 42.4 7.4 360 72 60 45 0.45×3

3240 ×22

00 ×2000

 2210
CT-C-IV 56.5 10.3 500 96 80 60 0.45×4

4280 ×22

00×2770

 2800
