Specifications
Brand Name :
Gnee
Model Number :
Steel Structure Building
Certification :
SGS
Place of Origin :
Tianjin
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 Ton/Tons per Day
Packaging Details :
In bundle with steel strip on middle, top, bottom.
Thickness :
5-28mm
Length :
1-12m or customized
Flange Width :
50-300mm
Web Width :
7-28mm
Flange Thickness :
5-16mm
Web Thickness :
100-900mm
Tolerance :
±5%
Processing Service :
Bending, Welding, Decoiling, Punching, Cutting
Description

Prefab Steel Structure Warehouse Economical Design Construction Steel Building With Ventilation Panel
Working for a main contractor and alongside a civil and mechanical engineer contractor, we helped to build a garage and workshop for a regional fire station.

The main requirement was for areas to be portioned off for battery storage and forklift battery charging. These areas required needed to be well ventilated so louvre doors were used to provide airflow in and out.

Ventilation Panel Odm Steel Structure Building , Peb Warehouse Construction

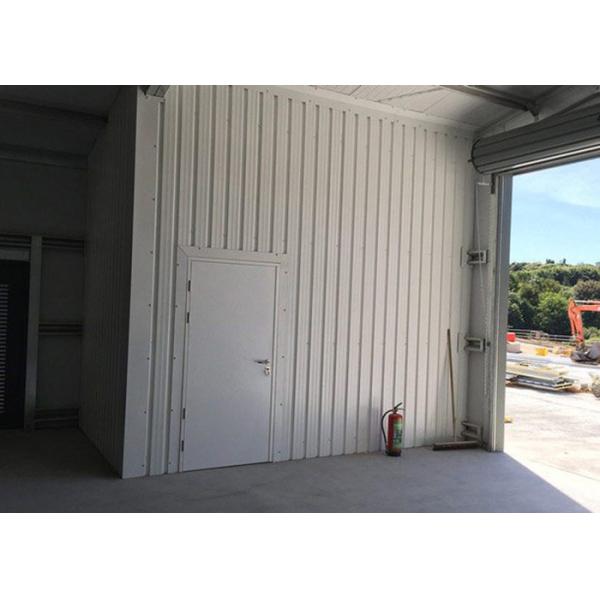

Where battery charging was being done, there was a requirement to control the temperature, to achieve this composite insulated cladding was used to create this area.

The project had budget requirements, so it was value engineered, working with the main contractor to provide good solutions to fit with their budget.

Ventilation Panel Odm Steel Structure Building , Peb Warehouse Construction

Main structure

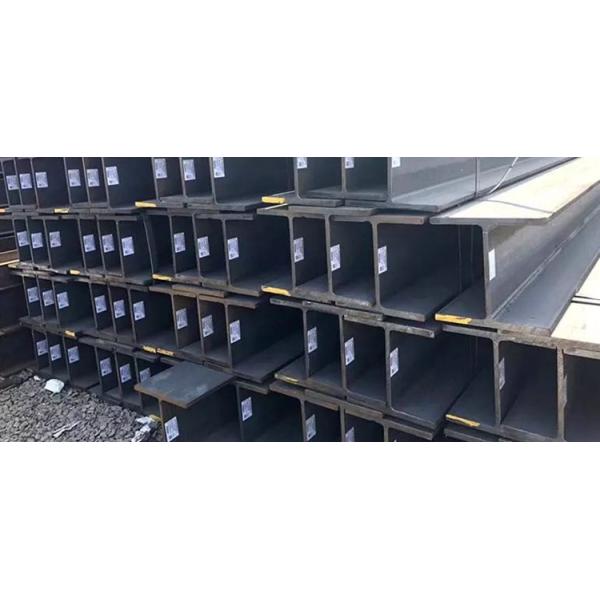

Steel Welded H Section

Purlin
C Section Channel or Z Section Channel

Roof Cladding
Sandwich Panel or Corrugated Steel Sheet with Fiber Glass Wool Coil

Wall Cladding
Sandwich Panel or Corrugated Steel Sheet

Tie Rod
Circular Steel Tube

Brace
Round Bar

Column & Transverse Brace
Angle Steel or H Section Steel or Steel Pipe

Knee Brace
Angle Steel

Roof Gutter
Color Steel Sheet

Rainspout
PVC Pipe

Door
Sliding Sandwich Panel Door or Metal Door

Windows
PVC/Plastic Steel/Aluminum Alloy Window

Connecting
High Strength Bolts

Packing
Decided by you, loaded into 1X 40FT GP, 1X20 FT GP, 1X40 FT HQ

Drawing
We can make the design and quotation according to your requirements or your drawing

Panel Material parts (1). External Wall panel: (below is selectable)
1) 50mm, 75mm or 100mm thickness EPS sandwich panel
2) 50mm, 75mm or 100mm thickness glass wool sandwich panel
3) 50mm, 75mm or 100mm thickness Rockwool sandwich panel
3) 900# Corrugated Galvanized Steel sheet with different Color
4) Kinds of PVC wall panel.
(2). Internal Wall panel: (below is selectable)
1)50mm, 75mm or 100mm thickness EPS sandwich panel
2) 50mm, 75mm or 100mm thickness glass wool sandwich panel
3) 50mm, 75mm or 100mm thickness Rockwool sandwich panel
(3). Roofing panel: (below is selectable)
1)50mm, 75mm or 100mm thickness EPS sandwich panel
2) 50mm, 75mm or 100mm thickness glass wool sandwich panel
3) 50mm, 75mm or 100mm thickness Rockwool sandwich panel
3)Corrugated Steel Sheet, an insulating layer if need.
4)Corrugated PVC roof panel.
(4). Skylight: 820# Glass Fiber Reinforced Plastics (FRP)
Door and Window (1). External Door ( Rolled up door or Sliding door )
-1. Over-heat Orbit Sliding Door with double open
-2. Galvanized steel opening by power-operated Roller Door
(2). Internal Door:
50mm Thickness EPS sandwich panel with an aluminum alloy door frame
(3). Window:
PVC Window or aluminum alloy window frame with glass.


Application
Warehouse, temporary office/building, gymnasia, villa, mobile building, guard booth, wall & roof materials for steel building or structure.
