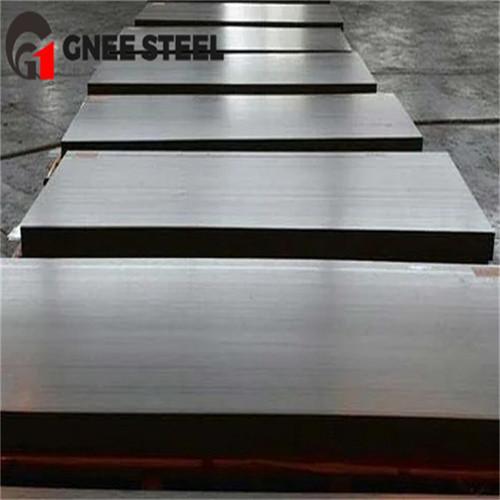

Q960D Q960E HSLA Steel Low Alloy High Tensile Structural Steel Hot Rolled Steel Sheet
Q960D Q960E HSLA Steel Low Alloy High Tensile Structural Steel Hot Rolled Steel Sheet
Q960D Q960E HSLA Steel Low Alloy High Tensile Structural Steel Hot Rolled Steel Sheet
Q960D Q960E HSLA Steel Low Alloy High Tensile Structural Steel Hot Rolled Steel Sheet
Q960D Q960E HSLA Steel Low Alloy High Tensile Structural Steel Hot Rolled Steel Sheet
Q960D Q960E HSLA Steel Low Alloy High Tensile Structural Steel Hot Rolled Steel Sheet
Q960D Q960E HSLA Steel Low Alloy High Tensile Structural Steel Hot Rolled Steel Sheet
Q960D Q960E HSLA Steel Low Alloy High Tensile Structural Steel Hot Rolled Steel Sheet
Specifications
Brand Name :
Gnee
Model Number :
According to customer requirements
Certification :
SGS
Place of Origin :
Tianjin, China
MOQ :
1 Ton/Tons
Price :
$700 / Ton
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
800 Ton/Tons per Week
Packaging Details :
Properly packed for ocean freight exportation in containers 1. Bundle 2. Water-proof Draft Paper
Standard :
ASTM,DIN, GB, JIS, EN
Grade :
Q960D Q960E
Type :
Steel plate/sheet/
Description

Q960D Q960E high tensile steel features and properties
High toughness : ‌Q960D Q960E high strength steel sheet has good low temperature toughness, wear resistance and fatigue resistance, and can maintain structural stability under complex stress.


‌Good welding performance ‌: The welded joint has high strength and is not prone to cracks and deformation.
‌Corrosion resistance ‌: ‌Q960D Q960E high strength steel can be used for a long time in harsh environments without being easily damaged.

Q960D Q960E​ high strength alloy steel engineering application areas ‌
Construction field ‌: Used to manufacture high-rise buildings, bridges, tunnels and other structural parts.
Ship field ‌: Used to manufacture hulls, decks, etc., and can withstand the complex stress of the marine environment.
Automobile field ‌: Used to manufacture structural parts such as frames and carriages.

Chemical composition analysis of Q960D alloy steel plate

C Si Mn P S Ni Cr Mo Cu Nb V Ti B Ceq Max
≤0.2 ≤0.8 ≤2 ≤0.025 ≤0.015 ≤2 ≤1.5 ≤0.7 ≤0.5 ≤0.06 ≤0.12 ≤0.05 ≤0.005 ≤0.82

Mechanical properties of Q960D high strength low alloy steel plate

Thickness Mechanical properties
≤50mm ReH(MPa) ≥960
Rm(MPa) 980-1150
A(%) ≥10
Impact temperature -20
Akv(J) ≥34

Q960E Low-alloy Mechanical Property

STEEL GRADE C% max Si% max Mn% max P% max S% max Cu% max Cr% max Ni% max Mo % max B % max V % max Nb% max Ti % max
Q960E 0.2 0.80 2.0 0.025 0.015 0.5 1.5 2 0.70 0.005 0.12 0.06 0.05

Q960E High-strength Steel Plate Chemical Composition

STEEL GRADE Re yield strength Mpa min Re yield strength Mpa min elongation % Energy and temperature
Min 0 -20 -40 -60
t≤50 50-100 100-150 t≤50 50-100 100-150 J J J J
Q960E 960 -- -- 980-1150 -- -- 10 34 34 27 27
