Superior Quality Rail Anchors Fasteners for Preventing Longitudinal Movement of Steel Rails
Superior Quality Rail Anchors Fasteners for Preventing Longitudinal Movement of Steel Rails
Superior Quality Rail Anchors Fasteners for Preventing Longitudinal Movement of Steel Rails
Superior Quality Rail Anchors Fasteners for Preventing Longitudinal Movement of Steel Rails
Specifications
Brand Name :
Gnee Rail
Certification :
ISO
Place of Origin :
China
MOQ :
1 Tons
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 tons per month
Delivery Time :
30 days
Packaging Details :
Gunny bags or cartons and wooden pallet
Description

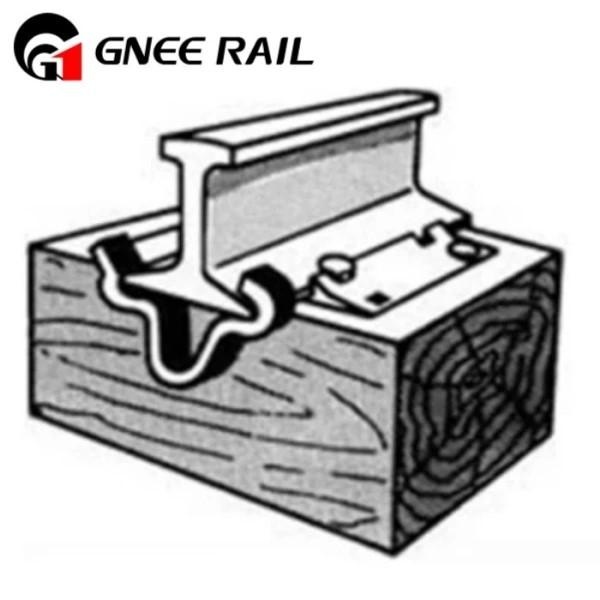

Rail anchors or called rail anticreepers are spring steel clips that attach to the underside of rail tie plates and bear against the sides of rail sleepers. The function of rail anchors is to prevent longitudinal movement of the steel rails, either from changes in temperature or through vibration.

Superior Quality Rail Anchors Fasteners for Preventing Longitudinal Movement of Steel Rails

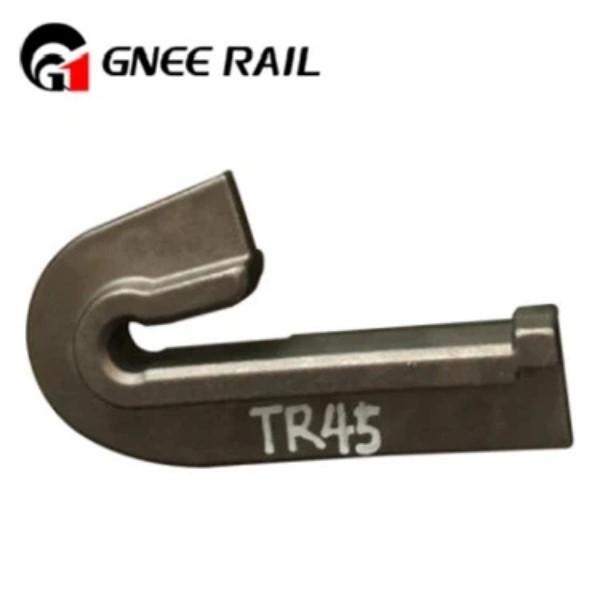

Rail anchors specifications

Type

Used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail, or other types upon customers' drawings.
Material 60Si2MnA 45# QT500-7
Chemical composition(%)

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035

 C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025
Surface plain (oiled),color painting, zinc painted or HDG
Standard AS1085.10-20002 , DIN, ISO-9001

For heavy rail tracks such as 50kg, 70lb, 80lb, 90/91lb, best option for steel material is 60Si2MnA, based on our former production experience and customer feed back, this material shows more stable mechanical property than most common material for rail anchor production is 60Si2MnA.

Superior Quality Rail Anchors Fasteners for Preventing Longitudinal Movement of Steel Rails

Application Rules of Rail Anchors

Rail anchors should be on the gage side of the rail base against the same tie face on opposite rails.

Rail anchors have to hold the rail base tightly and firmly and have full bearing against rail tie face.

A new rail anchor and a rail tie will be needed when the bearing of rail anchor against the tie has been disturbed.

Anchors shall not be moved by driving them along the rail.

The rail ties should be kept straightened when the anchors are applied.
