High Strength KPO9 Rail Clamp Rail Fasteners For Crane Rail Systems
High Strength KPO9 Rail Clamp Rail Fasteners For Crane Rail Systems
High Strength KPO9 Rail Clamp Rail Fasteners For Crane Rail Systems
High Strength KPO9 Rail Clamp Rail Fasteners For Crane Rail Systems
High Strength KPO9 Rail Clamp Rail Fasteners For Crane Rail Systems
High Strength KPO9 Rail Clamp Rail Fasteners For Crane Rail Systems
Specifications
Brand Name :
Gnee Rail
Model Number :
KPO9
Certification :
ISO
Place of Origin :
China
MOQ :
1 Tons
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 tons per month
Delivery Time :
30 days
Packaging Details :
Gunny bags or cartons and wooden pallet
Description

KPO9 Rail Clamps

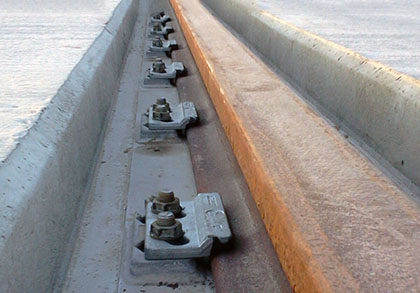

A KPO9 rail clamp, also commonly called an elastic rail clip or KPO clip, is used to stabilize crane rails in their lateral position. It provides mechanical stability while allowing longitudinal movement through its elastic nose and is fixed to rail ties with bolts. GNEE Rail is a professional and trusted supplier of rail clips, offering various products such as rail clamps, elastic rail clips, and other railway fasteners including rail spikes, fish plates, bolts, tie plates, crane rail clips, and steel rails. All our products meet international standards. For any needs, feel free to contact us anytime.

Features of KPO Fastening Systems

Global Application: Widely used worldwide in crane rail clamp systems.

Reliable & Safe: Proven safety and stability with years of experience.

Enhanced Clamping Power: Superior clamping force and longer lifespan compared to traditional fastening systems.

Variety of Models: Available in different types, including KPO3, KPO5, KPO6, KPO9, and more.

High Strength KPO9 Rail Clamp Rail Fasteners For Crane Rail Systems

KPO9 rail clamp specification

Name: KPO rail clamp

Type: KPO3, KPO6, KPO9

Weight: 0.3-1.5KG

Material: Q235-Forging; ZG35-Cast steel; QT500-7-Cast Iron

Standard: DIN17221, BS970, GB/T1222

Surface treatment: Zinc-plated, sandblasting, plain

Packing: Zinc: carton; Oil: double PE bag, iron wire

Usage: Rail Fastener System

High Strength KPO9 Rail Clamp Rail Fasteners For Crane Rail Systems

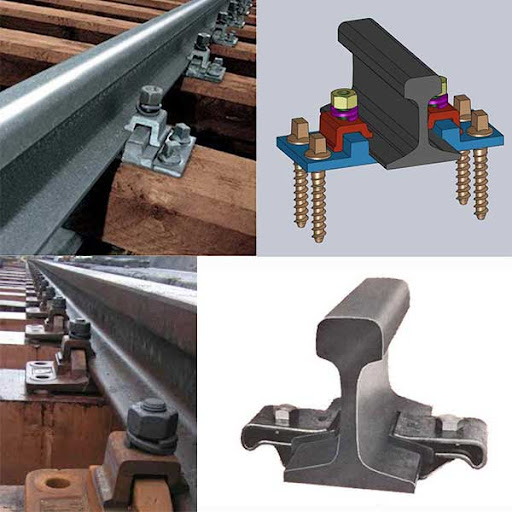

KPO9 Clamp Rail Fastening System Components

Part name Type Material Finish Remark
KPO clip KPO3, KPO6, KPO9 Q235 Plain oiled Standard: DIN5906
HS bolt HS26, HS32 Grade4.6: Q235
Grade5.6: 35#
Grade8.8: 45#		 Plain oiled, black oxide, galvanized, hot dip galvanized Diameter: 22mm or 24mm.
Length: 55mm, 65mm, 75mm, 90mm
Standard: UIC864-2
Hex nut As ordered Grade 5: 35#
Grade 8: 45#		 Plain oiled, black oxide, galvanized, hot dip galvanized Standard: DIN985
Double coil spring washer As ordered 65Mn Plain oiled, black oxide, galvanized, hot dip galvanized Standard: UIC864-3
screw spike M24×150mm
M24 ×160mm
M24 ×180mm
or other length as ordered		 Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#		 Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized. Standard: ISO898-1, UIC864-1 and NF F500-50
Base plate UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel Plain oiled Standard: UIC864-6

KPO9 Rail Clamp workshop
