DIN 2391 ST35 Seamless Carbon Steel Precision Tubes
DIN 2391 ST35 Seamless Carbon Steel Precision Tubes
DIN 2391 ST35 Seamless Carbon Steel Precision Tubes
DIN 2391 ST35 Seamless Carbon Steel Precision Tubes
DIN 2391 ST35 Seamless Carbon Steel Precision Tubes
DIN 2391 ST35 Seamless Carbon Steel Precision Tubes
Specifications
Brand Name :
GNEE
Model Number :
DIN2391 ST35
Certification :
SGS
Place of Origin :
henan
MOQ :
1 Tons
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 Tons per Month
Delivery Time :
15-30 days
Packaging Details :
seaworthy export packing with fumigated wooden pallets or steel pallets
Standard :
DIN
Grade :
St35
Shape :
Round
Test Certificate :
EN 10204 3.1
Marking :
ASME, ASTM, EN Standards
Length :
max 6000mm,12000mm,Custom Length
Description

The chemical composition of DIN 2391 ST 35 seamless precision steel tubes consists of carbon, silicon, manganese, phosphorus and sulphur. This chemical composition allows carbon steel DIN 2391 ST 35 tubes to have high hardness at low carbon content and to be processed at a much lower cost than high-carbon steels.

The final heat treatment of DIN 2391 ST 35 tubes is followed by cold drawing, which involves limited distortion. Appropriate further processing permits some degree of cold forming, e.g. bending and expansion.
DIN 2391 ST35 low carbon seamless steel tubes are used for applications requiring excellent hardness properties in a wide variety of chemical industries, water, gas and oil supply pipelines as well as fluid and boiler piping systems.

DIN 2391 ST35 steel pipes Seamless pipe specifications

DIN Standard DIN 2391
Available Grade ST35
Outer Dimensions 4.0 To 60.0 MM
Size in Mm OD (4-190) x WT (0.5-15)
Wall Thickness 0.5 To 8 mm
Maximum Length Maximum 6000mm

DIN 2391 ST35 Carbon steel precision tube Chemical Composition

Standard Grade Chemical Components (%)
Symbol Material No. C Si Mn P S
DIN2391 St 35 1.0308 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025

DIN 2391 ST35 Low carbon cold drawn tube Mechanical Properties

Mechanical properties at room temperature
Steel Grade Minimum values for the delivery condition
Steel Name Steel Number NBK
Rm ReH A %
Mpa Mpa
St 35 1.0308 340 to 470 235 25

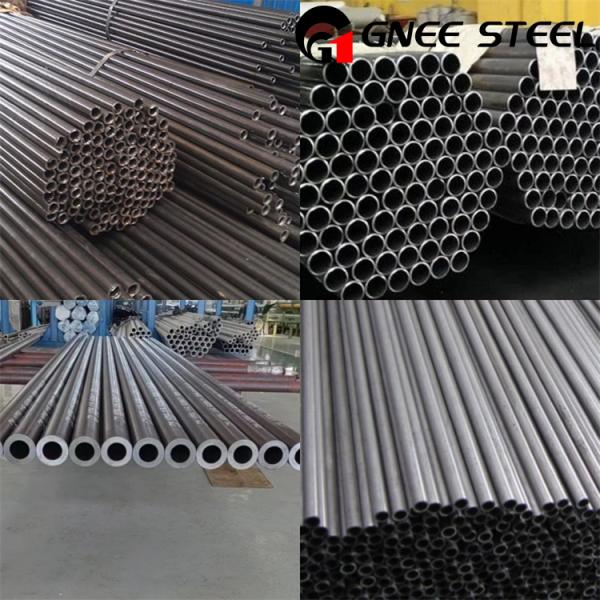

DIN 2391 ST35 precision steel pipe

DIN 2391 ST35 Seamless Carbon Steel Precision Tubes

Advantages of GNEE

Gnee has an ISO9001-2000 quality management system and an ISO14001 environmental protection system. At the same time, it actively develops diversification and has formed mainly carbon steel and stainless steel, covering pipes, profiles, plates and other products.
