Specifications
Brand Name :
GNEE
Place of Origin :
China
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons Per Month
Delivery Time :
30 Days
Packaging Details :
Gunny Bags or Cartons And Wooden Pallet
Description

Products Description

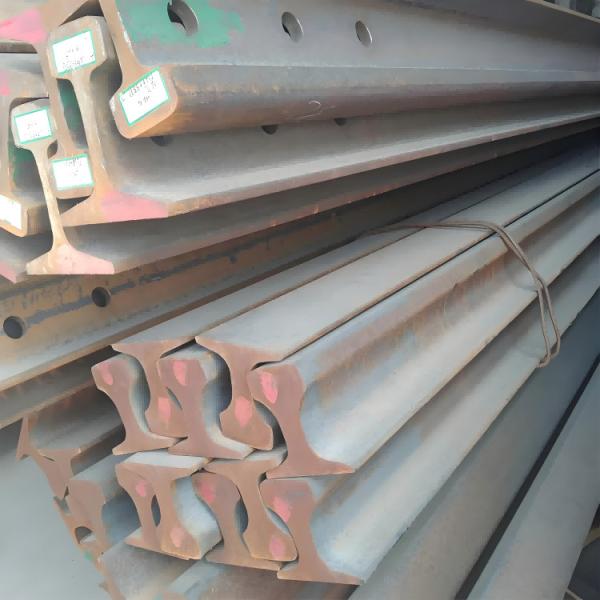

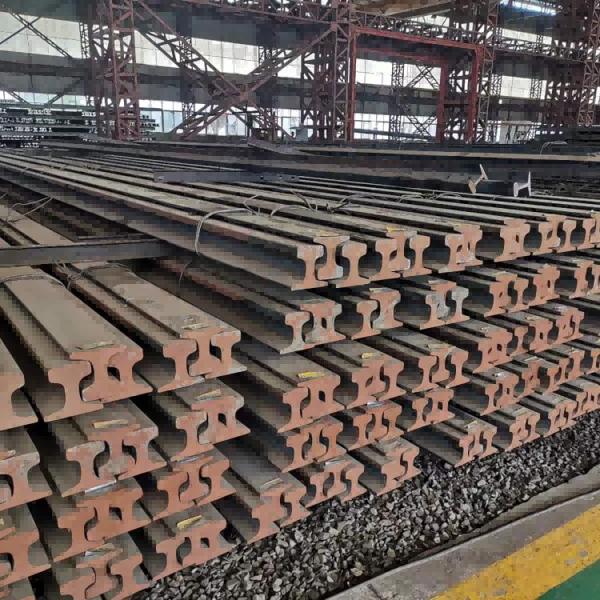

24kg mining rails are a type of rails specially designed for transportation in and around mines, with a weight of 24 kg per meter. The design feature of mining rails is that they can withstand heavier loads and adapt to the special transportation needs of mining areas. Compared with urban light rails and ordinary railway rails, mining rails need to have higher strength and wear resistance, especially in harsh working environments such as dust, moisture, and high temperature to ensure the stability and safety of the transportation system.

24kg mining rails have a strong carrying capacity and can meet the transportation needs of heavier materials in the mine transportation system, such as heavy goods such as ore and coal.

Light rails have high strength and wear resistance. They are made of high-quality alloy steel or carbon steel materials to ensure that the rails have high strength and long service life, and can cope with high-intensity wear in mine transportation.

24kg Light Steel Rail

type weight (kg/m) material length (m)
24kg 24.46 55Q 6-10m
rail height (mm) bottom width (mm) head width (mm) web thickness (mm)
107 92 51 10.90

Factory Direct Supply Railway Steel Rail 24kg Light Rail Steel Used For Railways And Subways

Factory Direct Supply Railway Steel Rail 24kg Light Rail Steel Used For Railways And Subways

Factory Direct Supply Railway Steel Rail 24kg Light Rail Steel Used For Railways And Subways

Factory Direct Supply Railway Steel Rail 24kg Light Rail Steel Used For Railways And Subways

About Us

GNEE (Tianjin) Multinational Trade Co., Ltd.

In 2008, our Rail Foreign Trade Company achieved remarkable results in the market with steady steps and firm faith. The satisfaction of 8,000+ customers is our greatest pursuit, and the business territory of 160+ countries is the symbol of our continuous growth. Today, 200+ employees are working together with the spirit of unity and cooperation to create a more brilliant tomorrow.

Factory Direct Supply Railway Steel Rail 24kg Light Rail Steel Used For Railways And Subways

FAQ

1. What is the main purpose of rails?
Rails are mainly used in railway transportation systems to provide the basis for train travel. They can withstand the huge pressure generated when the train is running and ensure the smoothness of driving.

2. What is the standard length of rails?
The standard length of rails is usually 12 meters, 18 meters, 36 meters, etc., but different lengths can be customized according to different railway construction needs.

3.. How to calculate the weight of rails?
The weight of rails is usually expressed in kilograms per meter, for example, 50kg/m means that the weight of each meter of rails is 50 kilograms. According to the cross-sectional size and material of the rails, the total weight can be calculated.

4.. What is the production process of rails?
The production process of rails includes steel smelting, casting, rolling, heat treatment, cutting, testing and other links to ensure that the rails have the required strength and wear resistance.
