ISO7061 Type A Aluminum Shore Gangway Marine Outfitting
ISO7061 Type A Aluminum Shore Gangway Marine Outfitting
Specifications
Brand Name :
Zhongyuan
Model Number :
Standard and Customized
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Place of Origin :
China
MOQ :
1
Price :
As per quotation
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Delivery Time :
As per offer
Packaging Details :
Pallet or Customized
Standard： :
ISO7061:2015
Types: :
Type A decking gangway
Material: :
Aluminum
Step: :
decking plate and anti-slip steps
Handrail Height: :
not less than 1000 mm evenly spaced;
Nominal Length: :
2 m to 9 m in 0.5m increments; above 9 m in 1 m increments;
Net Width: :
600 mm;
Usage Angle: :
0-30°;
Design Load: :
735 N on every step;
Surface Treatment: :
Anodic oxidation treatment;
Class Certificates: :
EU MED, EC type approval, CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Description

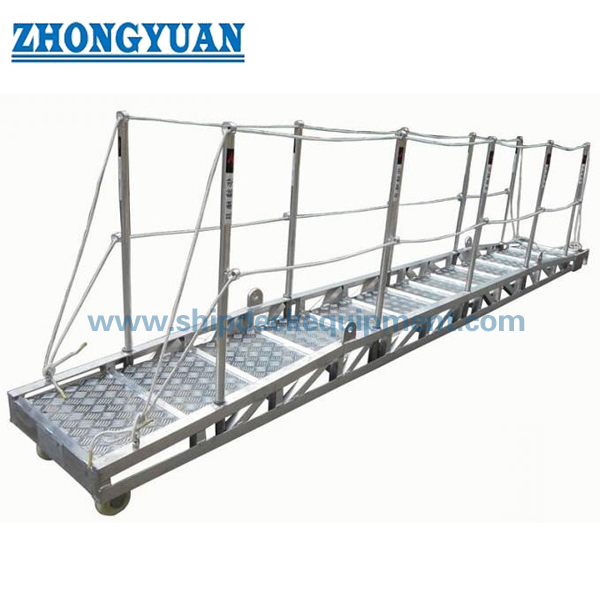

ISO7061 Type A Aluminum Shore Gangway

Description:

ISO7061 type A aluminum shore gangway with decking plate is designed to be carried on board ships, to provide a lightweight, convenient and safe means of access from ship to shore, for use primarily by the ship’s crew. These gangways may also be used for access from ship to ship when conditions are favourable. It is suitable for use horizontally or inclined up to an angle of 30° from the horizontal. The surface of type A gangway is provided with the decking plate and anti-slip steps, with the maximum inclination degree of 30°. For angles of inclination 30° to 55°, special consideration of the design of steps and decking may be necessary. The gangway body can be designed as one section, which can also be designed as two sections as required.

Main Technical Specifications:

  1. Standard: ISO7061:2015;
  2. Types: Type A decking gangway;
  3. Material: Aluminum;
  4. Step: decking plate and anti-slip steps;
  5. Handrail Height: not less than 1000 mm evenly spaced;
  6. Nominal Length: 2 m to 9 m in 0.5m increments; above 9 m in 1 m increments;
  7. Net Width: 600 mm;
  8. Usage Angle: 0-30°;
  9. Design Load: 735 N on every step;
  10. Surface Treatment: Anodic oxidation treatment;
  11. Class Certificates: EU MED, EC type approval, CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA. .

Main Technical Parameters:

L (mm) 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 7500 8000 9000 10000
Net Width (mm) 600
Factor of safety 2 on the 0,2 % proof stress of the aluminum alloy used
Steps

spaced at regular intervals of 300 mm to 400 mm longitudinally.

a minimum height of 30 mm above the decking; hardwood steps shall have a minimum

section width of 40 mm in contact with the decking
Stanchions with a maximum permitted interval of 1 500 mm

Handrail and intermediate

guides

Handrail and 2 intermediate guides

a) continuous and adequately tensioned sisal, manila, polypropylene or plastics-covered wire rope,

minimum rope diameter of 16 mm;

b) continuous rigid aluminum solid or hollow section

ISO7061 Type A Aluminum Shore Gangway Marine Outfitting

Drawing of ISO 7061 Type A Aluminum Shore Gangway With Decking Plate Marine Outfitting

ISO7061 Type A Aluminum Shore Gangway Marine Outfitting
