Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment
Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment
Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment
Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Safety Pull Capacity :
70-1000KN
Speed :
5-10m/min
Drum Capacity :
40 to 1000m
Motor Power :
30 to 180 kw
Rope Dia :
28 – 64 (mm)
Control position :
Remote and local control
Optional :
Load measuring, rope speed and length measuring device
Power Supply :
AC380V, 50HZ 3PH, AC415V 50HZ 3PH, AC440 60HZ 3PH
Auto Spooling Device :
Optional
Material :
Mild Steel
Surface treatment :
sandblasting to S2.5 + 3 layers of epoxy paint
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc
Description

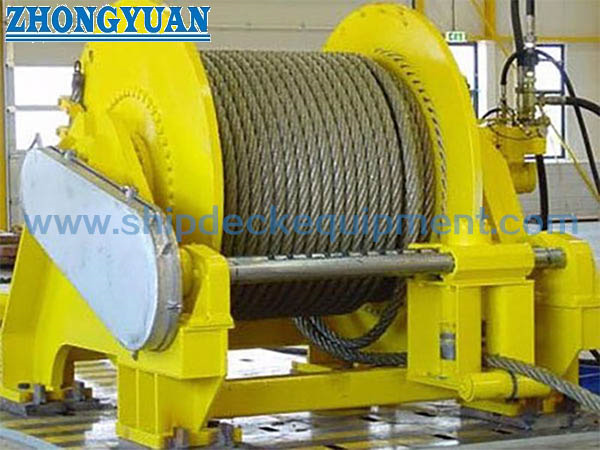

Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment

Description

Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment drum size is customized to meet wire capacity requirements; One or two warping heads on either side of the winch are optional according to clients' demands; Spooling Devices are optional for clients; The winch can be with remote and local control; The winch has load measuring, rope speed and length measuring device.

Main Technical Specification

1. Safety Pull Capacity: 70-1000KN

2. Speed: 5-10m/min

3. Drum Capacity: 40 to 1000m

4. Single/Double Drum

5. Single/Double warping end

6. Motor Power: 30 to 180 kw

7. Rope Dia. 28 – 64 (mm)

8. Control position: Remote and local control;

9. Optional: Load measuring, rope speed and length measuring device.

10. Power Supply: AC380V, 50HZ 3PH, AC415V 50HZ 3PH, AC440 60HZ 3PH

11. Auto Spooling Device: Optional

12. Material: Mild Steel,

13. Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,

14. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc.

Main Technical Parameters:

Rating Load Rating Speed Rope dia. Rope Length Motor Type Power
kN m/min mm m kW
70 0-10 φ30 700 CUJM-F3.15 30
80 0-10 φ32 200 CLJM-F3.15 30
120 0-10 φ30 400 CL]M-F3.15 45
160 0-10 φ44 600 3L JM-100 55
Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment

Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment

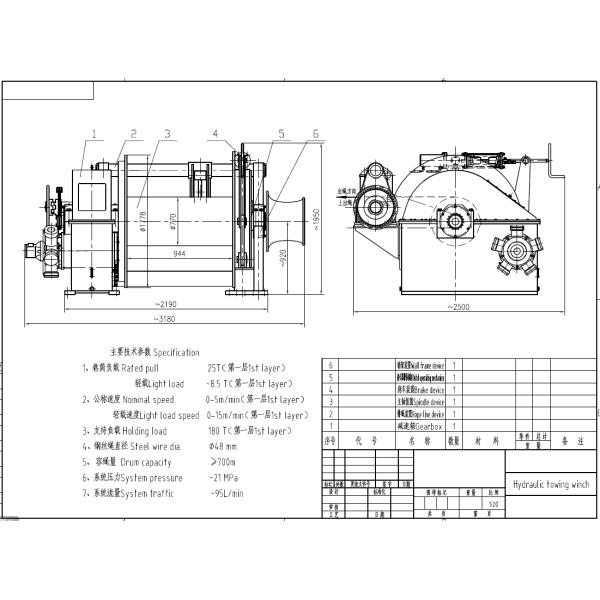

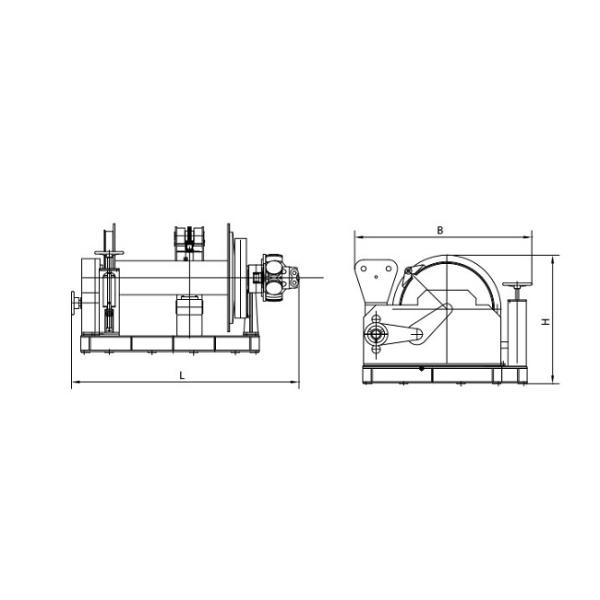

Drawing of Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment

Large Pull Capacity Marine Hydraulic Towing Winch Ship Towing Equipment
