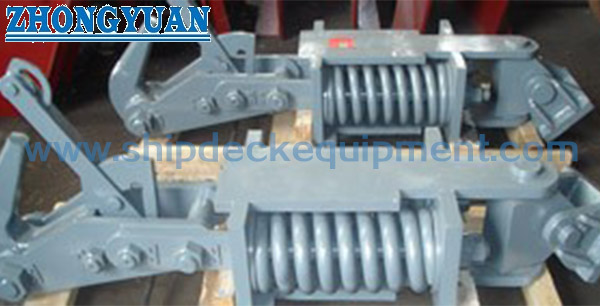

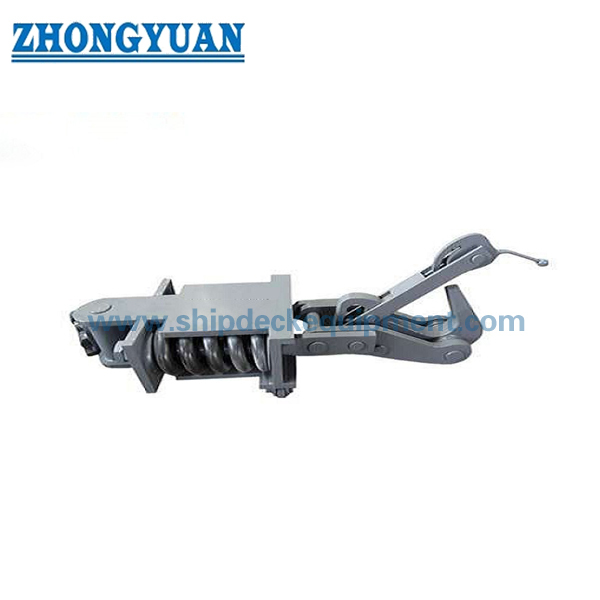

400KN Manual Release Spring Type Marine Towing Hook Ship Towing Equipment
400KN Manual Release Spring Type Marine Towing Hook Ship Towing Equipment
400KN Manual Release Spring Type Marine Towing Hook Ship Towing Equipment
400KN Manual Release Spring Type Marine Towing Hook Ship Towing Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
SWL :
16KN to 400KN
Material :
Mild Steel, C-Mn Steel
Usage :
Mooring and Towing
Standard :
CB/T 637-1995
Type :
Spring Type
Test :
Prototype Test, Break Load Test, Safe Working Load Test, Operation Test
Operation System :
Manual Release
Surface treatment :
sandblasting to S2.5 + 3 layers of epoxy paint, sandblasting to S2.5 + one layer of epoxy shop primer
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc
Description

400KN Manual Release Spring Type Marine Towing Hook Ship Towing Equipment

Description:

Marine towing hook is to pull the ship safely under severe conditions. It can release towing rope under conditions of slack or full safe working load to ensure the safety of the ship and personnel. It can be released locally or remotely from the wheel house by pulling the release wire or control button. Remote control systems release mechanism is either hydraulic or pneumatic.
We supply

  1. Quick Release Towing Hook
  2. Pneumatic/ Manual Release Disc Towing Hook
  3. Pneumatic Release Harbour Towing Hook
  4. Hydraulic Release Towing Hook
  5. Pneumatic / Manual Release Spring Towing Hook
  6. Single / Double / Triple / Quadruple Quick Release Mooring Hook
  7. Pelican Hook
  8. Buoy Type Quick Release Hook

Main Technical Specifications:
1. SWL: 16KN to 400KN
2. Material: Mild Steel, C-Mn Steel
3. Usage: Mooring and Towing
4. Standard: CB/T 637-1995
5. Type: Spring Type
6. Test: Prototype Test, Break Load Test, Safe Working Load Test, Operation Test
7. Operation System: Manual Release
8. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer,
9. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
10. Can be Customized


Main Technical Parameters:

Type

Max. Load

(KN)

 L L1 B B1 H H1 H2 R

Weight

(kg)
16 16 822 145 232 150 180 150 175 309 56.6
25 25 916 142 260 130 190 130 141 345 83.7
40 40 1180 184 330 208 270 228 189.5 445 177.9
63 63 1411 196 342 200 284 160 192 563 267.9
100 100 1710 253 410 260 376 250 256.5 684 558.1
160 160 1936 270 458 320 400 210 261 741 646.9
220 220 2448 324 560 310 490 300 310 952 1269.1
320 320 2128 315 590 342 430 280 332 828 1058.8
400 400 2259 330 640 320 472 300 355 880 1340.1
400KN Manual Release Spring Type Marine Towing Hook Ship Towing Equipment

Drawing of 400KN Manual Release Spring Type Marine Towing Hook Ship Towing Equipment

400KN Manual Release Spring Type Marine Towing Hook Ship Towing Equipment400KN Manual Release Spring Type Marine Towing Hook Ship Towing Equipment
