Marine Guide Roller Ship Towing Equipment
Marine Guide Roller Ship Towing Equipment
Marine Guide Roller Ship Towing Equipment
Marine Guide Roller Ship Towing Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Diameters :
20mm~76mm
Material :
Cast Steel, C-Mn Steel, Alloy Steel, Mild Steel
Type :
Vertical, Inclined Stand, Horizontal
Surface treatment :
sandblasting to S2.5 + 3 layers of epoxy paint, Galvanized
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc
Description

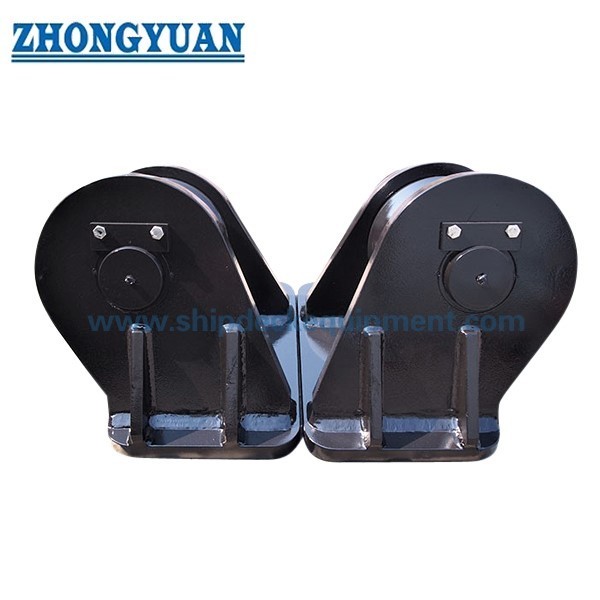

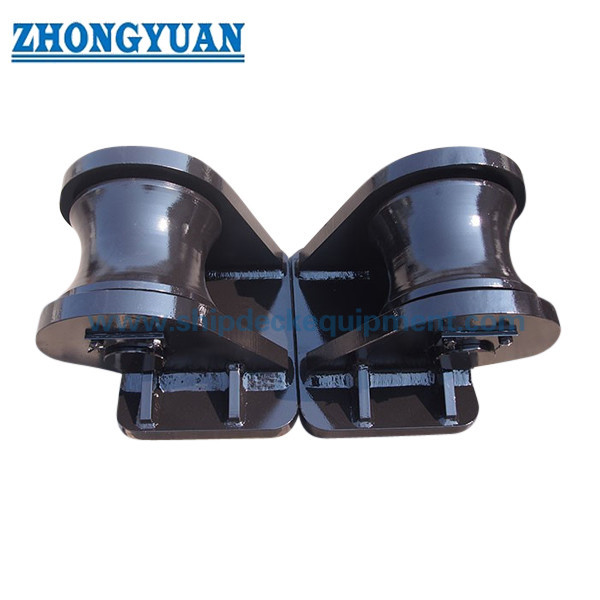

Marine Guide Roller Ship Towing Equipment

Description

Marine guide roller is designed to guide the steel wire rope and mooring ropes, chains. It is mainly used on engineering vessel, ferry, special purpose ship, dock. Our pulley has good wear (harden surface) and corrosion resistance, It is Self-lubrication, Vibration-absorption

Main Technical Specifications

  1. Diameters: 20mm~76mm
  2. Material: Cast Steel, C-Mn Steel, Alloy Steel, Mild Steel.
  3. Type: Vertical, Inclined Stand, Horizontal
  4. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
  5. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.

Main Technical Parameters:

DIAMETER WIDTH BORE (WITH BRONZE BUSHES FITTED).

MAX. RECOMMENDEDWIRE

ROPE DIAMETER.
2.5/8″ 65mm 3.1/2″ 90mm 1.1/16″ 27.0 mm (NO BUSH)
4″ 102mm 3″ 76mm 1″ 25.4 mm 8 mm
4″ 102mm 4″ 102mm 1″ 25.4 mm 10 mm
5″ 127mm 4″ 102mm 1.1/4″ 32.0 mm 12 mm
6″ 152mm 5″ 127mm 1.1/4″ 32.0 mm 14 mm
6″ 152mm 5″ 127mm 1.1/2″ 38.1 mm 14 mm
7″ 178mm 5″ 127mm 1.1/4″ 32.0 mm 16 mm
7″ 178mm 5″ 127mm 1.1/2″ 38.1 mm 16 mm
7″ 178mm 6″ 152mm 1.1/2″ 38.1 mm 16 mm
8″ 203mm 5″ 127mm 1.1/2″ 38.1 mm 20 mm
Marine Guide Roller Ship Towing Equipment
Drawing of Marine Chain Roller Ship Towing Equipment
Marine Guide Roller Ship Towing EquipmentMarine Guide Roller Ship Towing Equipment
