GB/T 554 Type C Steel Double Bitt Bollard with Narrow Base Ship Towing Equipment
GB/T 554 Type C Steel Double Bitt Bollard with Narrow Base Ship Towing Equipment
GB/T 554 Type C Steel Double Bitt Bollard with Narrow Base Ship Towing Equipment
GB/T 554 Type C Steel Double Bitt Bollard with Narrow Base Ship Towing Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Technic Standard :
GB554-2008
Materials :
C-Mn Steel, Stainless Steel, also can supply special steel for icebreaker
Nominal Diameters :
50 to 150mm
SWL Range :
13KN- 43KN
Weight :
4.5 to 49kg
Surface treatment :
sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc
Description

GB/T 554 Type C Steel Double Bitt Bollard with Narrow Base Ship Towing Equipment

Description:

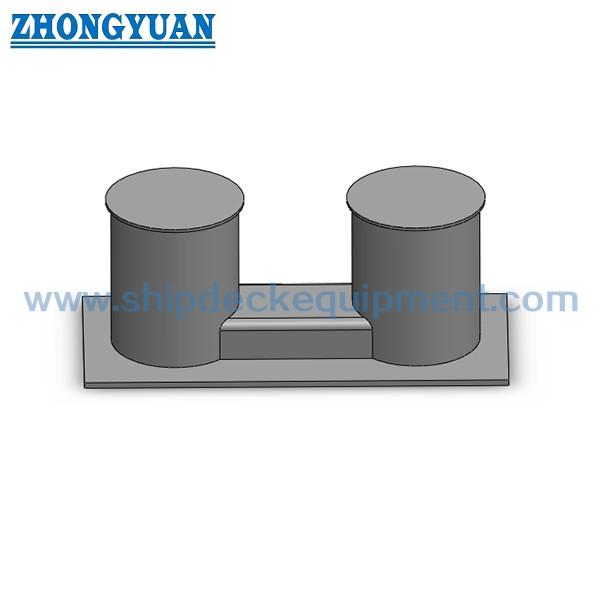

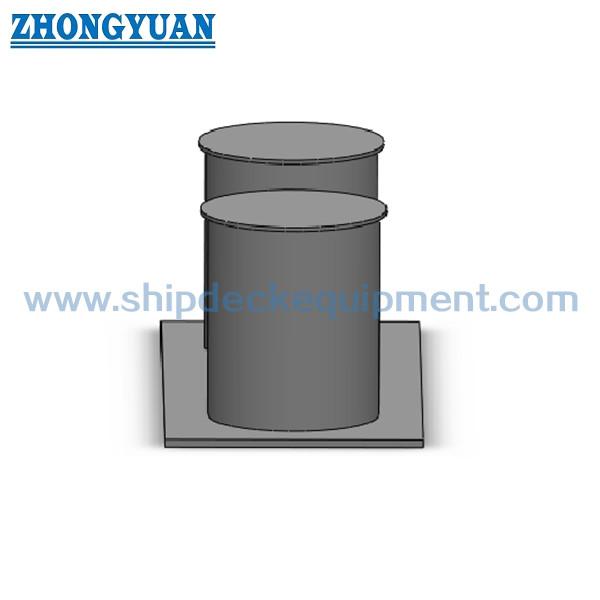

GB/T 554 type C steel double bitt bollard with narrow base is for ship towing equipment. It is constructed according to latest standard of GB/T 554. The base is constructed as one plate and two bollard is connected by enforced structure. This design makes good strength and protect the upper deck at the same time. It is mainly be used for small ship, inland water ship and boat etc. We produce all kinds of ship mooring bollard.

Main Technical Specification:

  1. Technic Standard: GB554-2008;
  2. Materials: C-Mn Steel, Stainless Steel, also can supply special steel for icebreaker.
  3. Nominal Diameters:50 to 150mm;
  4. SWL Range: 13KN- 43KN.
  5. Weight: 4.5 to 49kg;
  6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.
  7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

Main Technical Parameters:

Nominal Dia. SWL
kN		 A b B D D1 h h1 H L r t Weight
kg
50 13 180 32 100 50 65 9 26 115 310 20 6 4.5
75 18 275 50 125 75 95 12 43 170 430 20 7 10.8
100 25 350 65 160 100 120 14 51 220 540 25 7 18.6
125 34 430 80 200 125 145 15 60 275 676 28 9 34.3
150 43 500 100 230 150 170 16 70 330 800 35 9 49

GB/T 554 Type C Steel Double Bitt Bollard with Narrow Base Ship Towing Equipment

Drawing of GB/T 554 Type C Steel Double Bitt Bollard with Narrow Base Ship Towing Equipment

GB/T 554 Type C Steel Double Bitt Bollard with Narrow Base Ship Towing Equipment

GB/T 554 Type C Steel Double Bitt Bollard with Narrow Base Ship Towing Equipment
