ISO 8146 Forging Material Oval Eyeplate Lifting Eye Plate Ship Mooring Equipment
ISO 8146 Forging Material Oval Eyeplate Lifting Eye Plate Ship Mooring Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Standard :
ISO 8146-1990
Nominal Sizes :
0.4-50mm
Type :
Type A, Type B
Permissible Load :
4 to 500KN
Material :
Mild Steel, Stainless Steel C-Mn Steel Forging
Surface treatment :
sandblasting to S2.5 + one layer of epoxy shop primer
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc
Description

ISO 8146 Forging Material Oval Eyeplate Lifting Eye Plate Ship Mooring Equipment

Description:

As an eye plate for ships that can be used when fixing structures such as rope terminals, shackles, pulleys, etc.

Main Technical Specification:

1. Standard: ISO 8146-1990;

2. Nominal Sizes: 0.4-50mm

3. Type: Type A, Type B;

4. Permissible Load: 4 to 500KN

5. Material: Mild Steel, Stainless Steel C-Mn Steel Forging;

6. The surface of the finished eyeplate is free from visible cracks and flaking.

7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer;

8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

Main Technical Parameter:

Nominal
size		 Permissible
load
kN		 a b C d e f h I r1 r2 Mounting of
type A
Welding
s
min.		 Mounting of type A
Welding
g
min.
0.4 4 22 15 42 10 15 8 32,5 65 17,5 3 6 4
0.6 6,3 28 19 52 12 19 8 40,5 0 21,5 4 6 4
1 10 35 22 67 16 25 8 52 95 27 5 6 4
1.6 16 42 24 82 20 33 8 65 120 32 5 7 4
2 20 50 27 100 25 35 12 73,5 132 38,5 5 9 6
2,5 25 55 29 105 25 39 12 78,5 140 39,5 6 9 6
3 31,5 66 33 126 30 42 12 88,5 180 46,5 7 10 6
4 40 77 36 147 35 48 15 101 210 53 7 12 7
5 50 87 41 167 40 57 18 117,5 225 60,5 8 14 9
6 63 91 45 171 40 66 18 128,5 240 62,5 8 14 9
8 80 101 51 201 50 73 20 148,5 270 75,5 10 17 10
10 100 117 56 217 50 80 22 158 300 78 10 17 11
12 125 128 61 248 60 87 24 177,5 335 90,5 12 20 12
16 160 145 67 265 60 95 26 188,5 370 93,5 12 20 13
20 200 157 73 297 70 105 28 211,5 420 106,5 14 25 14
25 250 170 80 331 80 120 32 240 470 120 16 30 16
32 315 194 88 374 90 130 36 264 530 134 18 30 18
40 400 220 98 420 100 145 40 294 570 149 20 35 20
50 500 240 108 460 110 155 45 319 630 164 22 35 22


ISO 8146 Forging Material Oval Eyeplate Lifting Eye Plate Ship Mooring Equipment

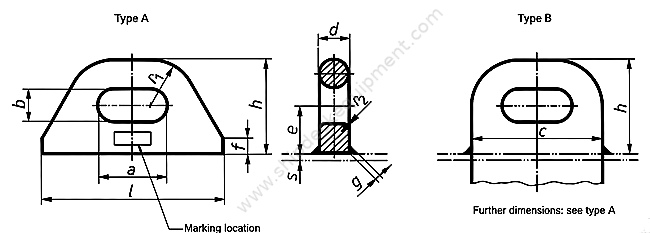

Drawing of ISO 8146 Forging Material Oval Eyeplate Lifting Eye Plate Ship Mooring Equipment
