JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment
JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Standard :
JIS F3410-1999
Nominal Sizes :
3-15mm
Type :
Type F
Permissible Load :
29.7 to 147KN
Material :
Mild Steel, Stainless Steel C-Mn Steel Forging
Surface treatment :
sandblasting to S2.5 + one layer of epoxy shop primer
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Description

JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment

Description:

As an eye plate for ships that can be used when fixing structures such as rope terminals, shackles, pulleys, etc.

Main Technical Specification:

1.Standard: JIS F3410-1999,

2.Nominal Sizes: 3-15mm

3.Type: Type F,

4.Permissible Load: 29.7 to 147KN

5.Material: Mild Steel, Stainless Steel C-Mn Steel Forging;

6.The surface of the finished eyeplate is free from visible cracks and flaking.

7.Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer;

8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

Main Technical Parameter:

Nominal
size		 Permissible
load
KN		 d L R L1 B T h r r1 r2 Welding Leg
f		 Weight(kg)
3 29.4 28 85 25 130 60 15 13 18 12 25 7 2.44
5 49 34 100 28 150 70 15 20 20 15 25 9 3.88
7.5 73.5 42 115 30 180 100 20 25 25 20 25 11 7.5
10 98 50 135 32 210 120 20 28 30 25 25 13 11.7
15 147 60 160 34 250 140 27 36 36 30 27 10 20

JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment

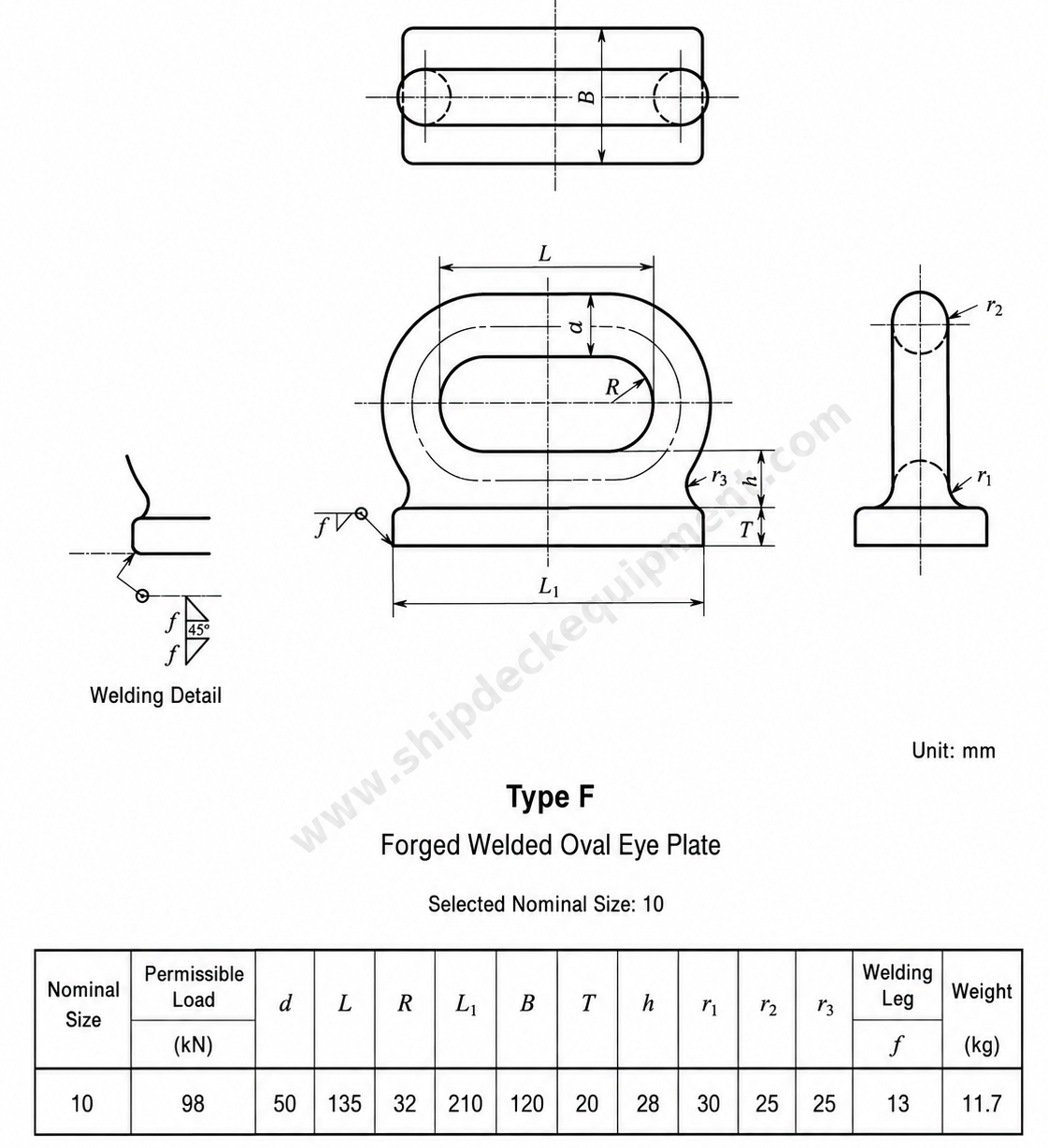

Drawing of JIS F 3410 Type F Forging Steel Welded Ovel Eyeplate Ship Mooring Equipment
