Casting Steel Bolted Anchorage Double Bitt Dock Inclined Bollard Ship Mooring Equipment
Casting Steel Bolted Anchorage Double Bitt Dock Inclined Bollard Ship Mooring Equipment
Casting Steel Bolted Anchorage Double Bitt Dock Inclined Bollard Ship Mooring Equipment
Casting Steel Bolted Anchorage Double Bitt Dock Inclined Bollard Ship Mooring Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Bollard Capacity :
20 to 200 tons
Bolts Quantity :
8 to 10
Material Type :
Cast C-Mn Steel, Casting Stainless Steel; Cast Iron, Cast Ductile Iron/SG Iron
Safe factor :
3 time
Face angle of cable :
-45~+45 (vertical), 0~1800 (horizontal)
Surface treatment :
sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, Polished, Galvanized, customized surface treatment available
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc
Description

Casting Steel Bolted Anchorage Double Bitt Dock Inclined Bollard Ship Mooring Equipment

Description:

Marine dock inclined double bitt bollard is one type of safe dock bollard. It is a better choice for ship mooring, shifting. We have various types which are designed according to berth capacity, wharf structure: Kidney bollard, staghorn bollard, T-head bollard, J type bollard, R type bollard, single bitt bollard, double bitt bollard etc. As a professional bollard maker, we produce the nominal standard marine bollards and the customized bollards for customer's requirements. We provide high quality products, prompt delivery and competitive price. If you're interested in our products, please feel free to contact us.

Main Technical Specification:

1. Bollard Capacity: 20 to 200 tons;

2. Bolts Quantity: 8 to 10;

3. Material Type: Cast C-Mn Steel, Casting Stainless Steel; Cast Iron, Cast Ductile Iron/SG Iron;

4. Safe factor: 3 time.

5. Face angle of cable :-45~+45 (vertical), 0~1800 (horizontal)

6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, Polished, Galvanized, customized surface treatment available.

7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

Main Technical Parameter:

Capacity(T) A B C D E F G H Bolts No.
20 685 370 610 150 254 50 369 394 8
30 825 420 725 180 290 58 445 451 8
50 945 455 825 200 330 65 510 508 8
75 1205 522 1040 255 405 75 650 622 10
100 1390 635 1200 305 457 82 760 698 10
125 1525 675 1320 330 500 85 840 752 10
150 1650 720 1420 355 533 90 910 797 10
175 1875 840 1650 406 610 105 1067 909 10
200 2030 860 1750 432 660 115 1130 987 10

Casting Steel Bolted Anchorage Double Bitt Dock Inclined Bollard Ship Mooring Equipment

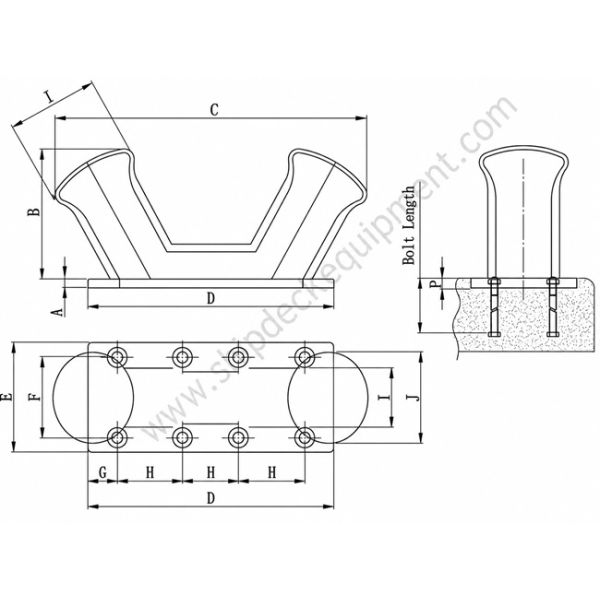

Drawing of Casting Steel Bolted Anchorage Double Bitt Dock Inclined Bollard Ship Mooring Equipment

Casting Steel Bolted Anchorage Double Bitt Dock Inclined Bollard Ship Mooring Equipment
