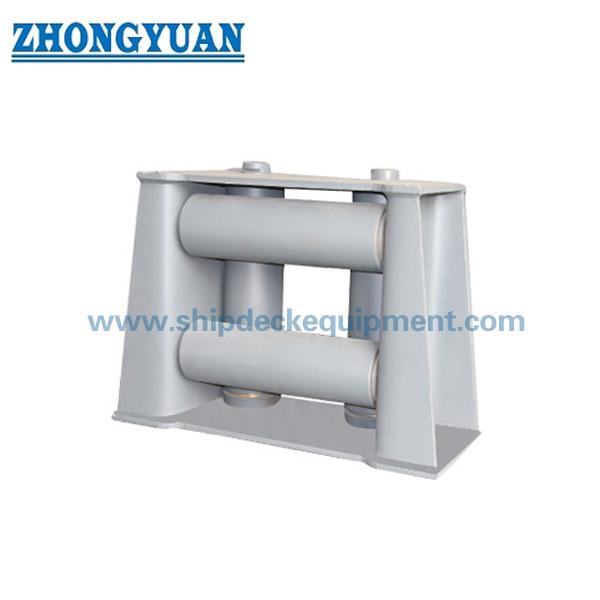

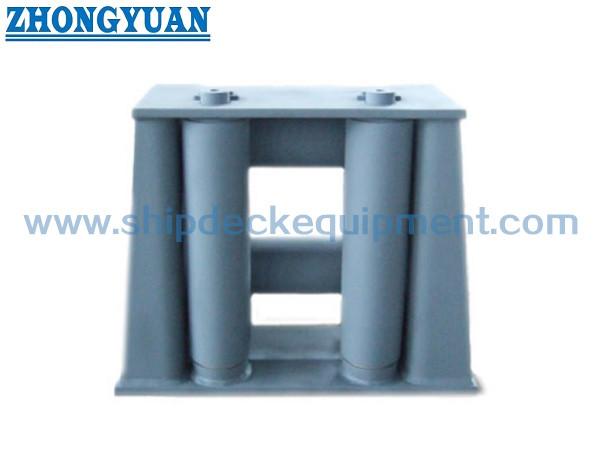

CB/T 3062 Type B Four Tube Rollers Universal Fairleads with Upper Roller Ship Mooring Equipment
Description
CB/T 3062-2011 fairlead type B consists 2 vertical & 2 horizontal rollers, can guide mooring ropes from 4 directions. It locates on freeboard deck. It reduces the abrasion of mooring ropes through rollers fixed around the fairlead. It is applicable to nylon ropes and steel wire ropes.
Main Technical Specification:
Main Technical Specification:
Nominal Size | Steel Wire Rope Dia. | Nylon Rope | SWL (KN) | B | B1 | B2 | D | H | H1 | L | L1 | L2 | L3 | t | Weight (KG) |
100 | 14 | 36 | 54 | 238 | 194 | 108 | 102 | 508 | 330 | 644 | 416 | 300 | 544 | 10 | 112 |
120 | 16 | 40 | 70 | 280 | 232 | 128 | 121 | 552 | 360 | 728 | 456 | 320 | 608 | 12 | 169 |
140 | 18 | 45 | 89 | 304 | 250 | 138 | 140 | 606 | 405 | 776 | 480 | 330 | 646 | 14 | 227 |
150 | 20 | 70 | 110 | 346 | 288 | 158 | 152 | 670 | 435 | 880 | 540 | 370 | 730 | 16 | 328 |
160 | 22 | 80 | 133 | 370 | 308 | 168 | 168 | 710 | 470 | 940 | 580 | 400 | 780 | 18 | 388 |
180 | 26 | 85 | 186 | 417 | 345 | 190 | 194 | 770 | 380 | 1030 | 620 | 420 | 850 | 20 | 620 |
200 | 28 | 95 | 216 | 459 | 385 | 210 | 219 | 820 | 410 | 1136 | 686 | 460 | 936 | 22 | 789 |
230 | 32 | 100 | 282 | 521 | 445 | 240 | 245 | 910 | 450 | 1256 | 746 | 490 | 1026 | 25 | 1067 |
260 | 36 | 100 | 357 | 590 | 500 | 270 | 273 | 1000 | 500 | 1430 | 850 | 560 | 1170 | 28 | 1585 |
320 | 44 | 100 | 533 | 714 | 620 | 330 | 325 | 1130 | 570 | 1690 | 990 | 640 | 1370 | 30 | 2441 |
Drawing of CB/T 3062 Type B Four Tube Rollers Universal Fairleads with Upper Roller Ship Mooring Equipment
