CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment
CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment
CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment
CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Type :
Type B, bolted type
Materials :
Casting C-Mn Steel, Casting Iron, Casting Stainless Steel, also can supply special steel for icebreaker
Technical Standard :
CB 34-76
Weight :
22.6-205kg
Surface treatment :
sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS
Description

CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment


Description:
Mooring chock, welded on deck or bulwark, is used to guide and control the mooring ropes to a certain direction. Its surface is polished smoothly in order to reduce the friction of the rope. CB* 34-76 marine mooring chocks have four types: CB34-76 type A, type B, type C, type D.

Main Technical Specification:
1.Type: Type B, bolted type
2.Materials: Casting C-Mn Steel, Casting Iron, Casting Stainless Steel, also can supply special steel for icebreaker.
3.Technical Standard: CB 34-76
4.Weight: 22.6-205kg;
5.Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
6.Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS

Main Technical Parameter:

Maximum diameter of cable Maximum girth of flax Maximum diameter of nylon cable L L1 L2 B B1 B2 b1 b2 b3 R R1 R2 Bulwark opening dimensions Rivets or bolts

Weight

kg
L3 B3 diameter Number
18.6 160 35 200 300 400 130 230 330 18 110 22 58 15 145 310 240 12 12 22.6
22.5 200 45 260 400 520 170 310 430 25 160 28 84 30 190 415 325 16 12 49.3
28.0 230 55 320 465 590 200 345 470 28 175 30 95 30 210 480 360 16 16 71.2
33.5 270 70 400 572 720 260 430 580 32 200 35 108 33 260 592 450 20 16 118
43.5 325 90 480 685 870 310 525 700 35 240 40 126 44 320 705 545 24 16 205

CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment

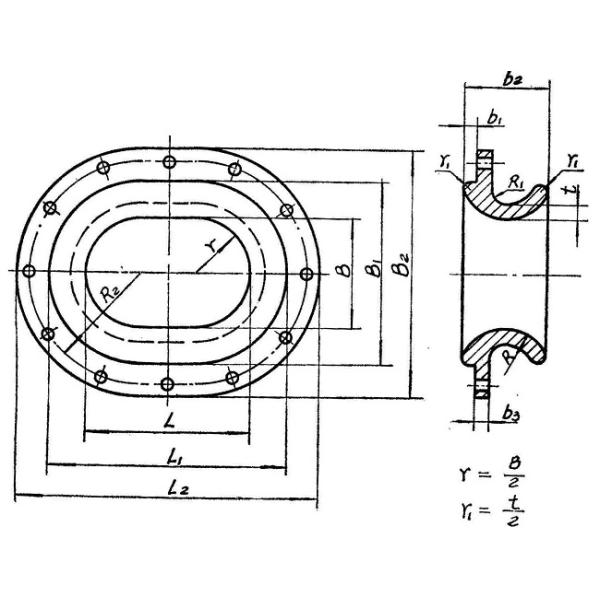

Drawing of CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment

CB 34-76 Type B Bulwark Bolted Casting Steel Mooring Chock Ship Mooring Equipment
