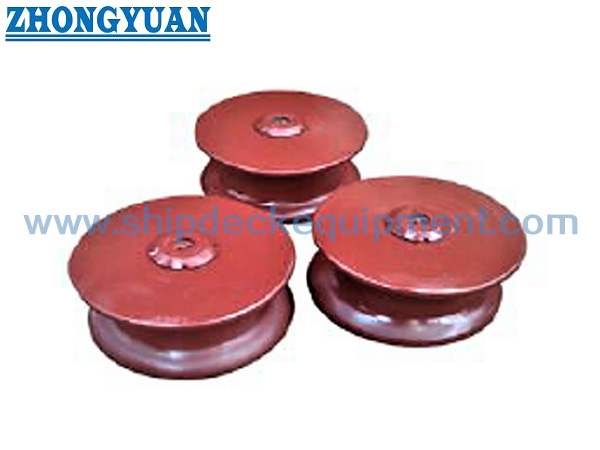

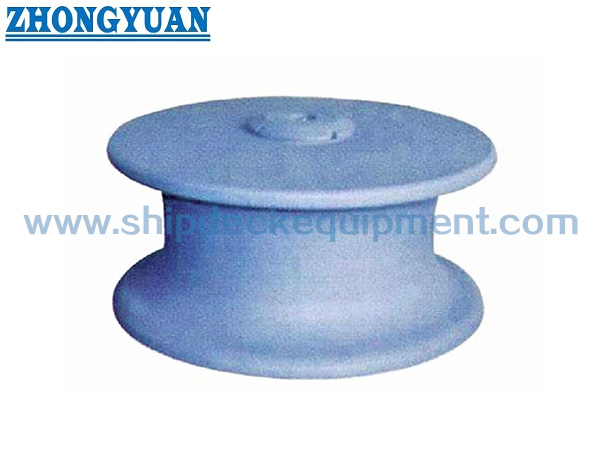

NS 2585 Open Type Casting Steel Roller Button Ship Mooring Roller Fairlead Ship Mooring Equipment
NS 2585 Open Type Casting Steel Roller Button Ship Mooring Roller Fairlead Ship Mooring Equipment
NS 2585 Open Type Casting Steel Roller Button Ship Mooring Roller Fairlead Ship Mooring Equipment
NS 2585 Open Type Casting Steel Roller Button Ship Mooring Roller Fairlead Ship Mooring Equipment
NS 2585 Open Type Casting Steel Roller Button Ship Mooring Roller Fairlead Ship Mooring Equipment
NS 2585 Open Type Casting Steel Roller Button Ship Mooring Roller Fairlead Ship Mooring Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Type :
Open type
Roller Diameters :
150~450mm
Roller No. :
Single roller
Roller Weight :
24.8~310kg
Materials :
Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron
Surface treatment :
sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA
Description

NS 2585 Open Type Casting Steel Roller Button Ship Mooring Roller Fairlead Ship Mooring Equipment

Description:

NS2585 fairlead roller is one kind of marine rollers for fairlead. It is used to lead the direction of mooring ropes for marine ships. NS2585 fairlead roller has high breaking load of tight wire. Compact structure, smooth surface, standard production and stable performance are the features of marine fairlead roller.

Main Techncial Specification:

  1. Type: Open type
  2. Roller Diameters: 150~450mm
  3. Roller No.: Single roller
  4. Roller Weight:24.8~310kg
  5. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron
  6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
  7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
  8. Can be Customized

Main Technical Parameters:

Roller
Diameter
(D}		 Max. Diameter of
Applicable Rope		 Size Weight
kg
Synthetic
Fiber Rope		 Hemp
Rope		 Steel Wire Rope
Strength
1550 N/mm2
6X24 6X37 D1 d0 d7 H s t k
150 32 45 17 15 240 90 79 154 5 12 9 24.8
200 40 55 22.S 19.5 310 115 99 186 5 14 10 49.3
250 45 65 24 24 380 135 119 230 6 14 10 92
300 50 70 30 28 440 155 129 255 7 16 12 127
350 55 75 37.5 34.S 500 175 149 271 7 18 13 168
400 65 85 41 39 560 185 159 307 7 20 14 252.5
450 80 　 44.5 43 630 210 178 316 7 20 14 310
NS 2585 Open Type Casting Steel Roller Button Ship Mooring Roller Fairlead Ship Mooring Equipment

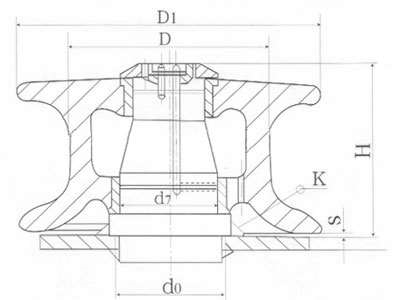

Drawing of NS 2585 Open Type Casting Steel Roller Button Ship Mooring Roller Fairlead Ship Mooring Equipment

NS 2585 Open Type Casting Steel Roller Button Ship Mooring Roller Fairlead Ship Mooring EquipmentNS 2585 Open Type Casting Steel Roller Button Ship Mooring Roller Fairlead Ship Mooring Equipment
