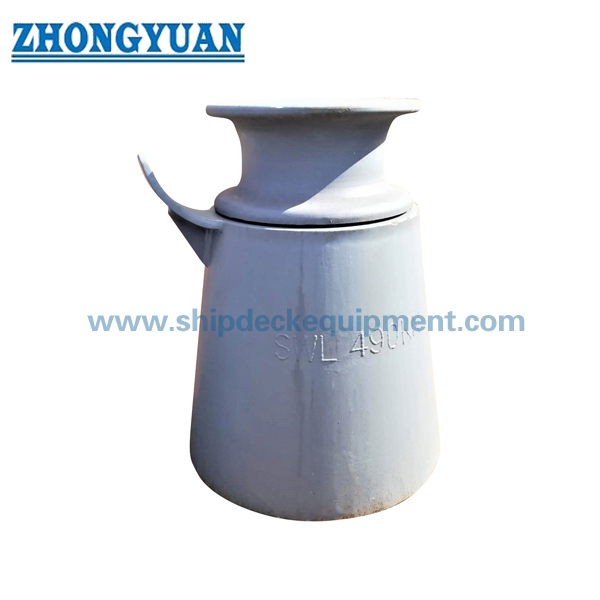

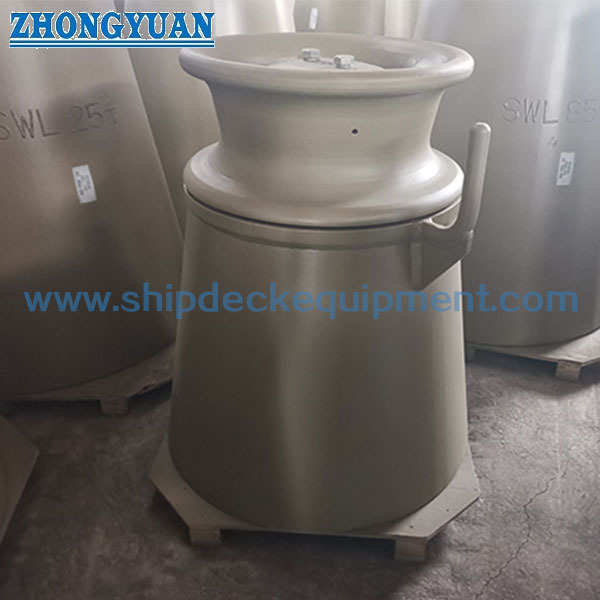

ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment
ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment
ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment
ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Technical Standard :
ISO 13776:2012
SWL :
265KN to 1942KN (θ=90°), 186KN to 1373KN (θ=0°)
Type :
Type A, B, C
Nominal Size :
150-500 mm
Roller No. :
Single Roller
Materials :
High Tensile Steel, Stainless Steel, Casting Steel, Nodular Cast Iron
Surface treatment :
sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available
Classification Certificates :
CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, Etc
Description

ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment

Description

ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment is an important mooring equipment changing the direction & reducing the abrasion of mooring ropes.

Types of fairleads we supply:ISO 13776:2012, DIN 81907:1997-12 Pedestal Cleat Fairlead (Form A&B),CB*436-2000 Pedestal Cleat Fairlead with single roller (type A& B).We can also provide the customized fairleads according to customer’s special requirement.

Main Technical Specification:

  1. Technical Standard: ISO 13776:2012
  2. SWL: 265KN to 1942KN (θ=90°), 186KN to 1373KN (θ=0°),
  3. Type: Type A, B, C
  4. Nominal Size: 150-500 mm;
  5. Roller No.: Single Roller
  6. Materials: High Tensile Steel, Stainless Steel, Casting Steel, Nodular Cast Iron;
  7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
  8. Classification Certificates:CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, Etc.
  9. Can be Customized

Main Technical Parameter:

Nominal size

Dn

D1

D2

 d

h

h1

t1

t2

t3

 Welding leg length
Type A& B Type C Z1 Z2
150 220 230 71,5 81,5 200 100 16 10 16 8 5
200 288 300 93,5 102,5 200 100 20 12 20 10 6
250 357 370 113,5 119,5 200 100 22 12.5 22 11 6
300 417 430 128,5 130,5 225 125 24 13 24 12 6,5
350 472 490 145,5 152,5 225 125 26 17 26 15 8,5
400 540 560 154,5 164,5 250 150 28 18 28 17 9
450 600 620 167,5 179,5 250 150 30 20 30 20 10
500 655 680 178,5 195,5 250 150 32 22 34 23 11

Nominal size

Dn

 SWL

Calculated weight (kg)

(For Reference only)
θ=90° θ=00
(Kn) (ton) (kN) (ton) H=500 H=1000 H=1500
150 265 27 186 19 55 115 198
200 441 45 314 32 86 169 278
250 579 59 412 42 113 210 335
300 726 74 510 52 145 256 395
350 1040 106 736 75 201 358 552
400 1246 127 883 90 255 436 657
450 1599 163 1128 115 314 530 791
500 1942 198 1373 140 383 636 938

a Welding with chamfering is available based on the same welding volume/ strength

b θ is the relative angle of ropes on the pedestal fairlead (Refer to Annex A)

c SWL 1s the maximum applicable rope tension based 90° (θ= 90 °) and 180° (θ=0 °) deflection of rope direction by pedestal fairlead.

SWLs shown in the Table are for reference only.

"SWL" may be adjusted depending on the actual loading conditions, and the actual marking is to be per the agreement between the user and the manufacturer.

d Calculated weight is for reference excluding steel roller on the pedestal fairlead.

e d is to be decided depend on the type of steel roller (Type A &Band Type C) as specified in ISO 13755 Steel rollers

ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment

Drawing of ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment

ISO 13776 Deck Stand Pedestal Roller Fairlead Ship Towing Equipment
