CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment
CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment
CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment
CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Standard :
CB/T 435-2005
Type :
Type B inner board deck mounted
Roller diameters :
200 & 250 mm
Weight :
123.5 & 197.5 kg
Materials :
C-Mn Steel, Mild Steel, Stainless Steel
Surface treatment :
sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
Classification Certificates :
Maker’s certificate, CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, etc
Description

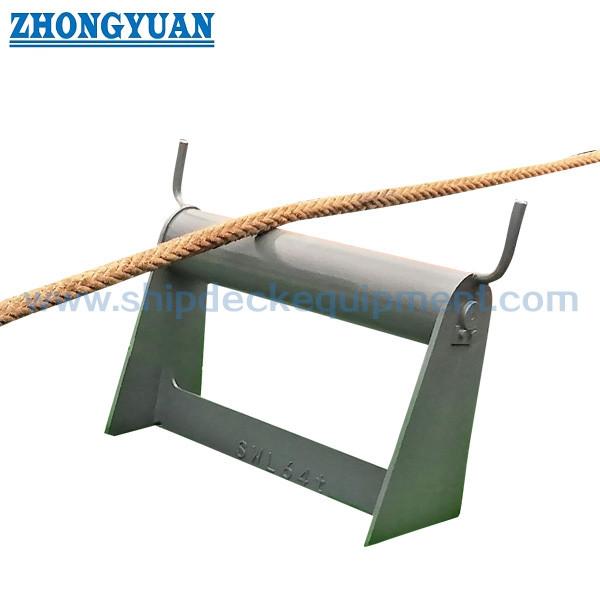

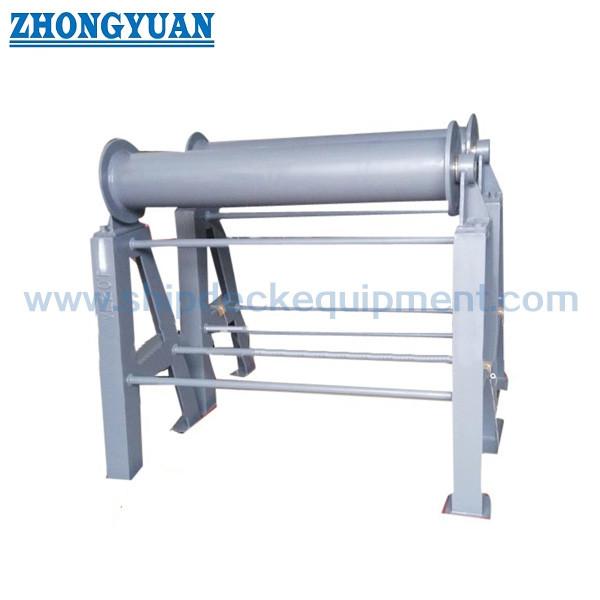

CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment

Description

This type of fairlead is deck mounted, and positioned inner board. Normally it used together with middle ship mooring winch and leading the PP rope to the overboard roller fairlead. It is widely used on all kinds of ship. Our fairleads reach the international standard and obtain the certificate of quality. We can also provide Fiber Reinforced Plastics fairleads and the customized fairleads for our customers.

Main Technical Specification:

  1. Standard: CB/T 435-2005
  2. Type: Type B inner board deck mounted;
  3. Roller diameters: 200 & 250 mm;
  4. Weight: 123.5 & 197.5 kg
  5. Materials: C-Mn Steel, Mild Steel, Stainless Steel
  6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
  7. Classification Certificates:Maker’s certificate, CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, etc.

Main Technical Parameters:

Nominal Diameter D D1 T T1 h B L L1 L2 H Frame
L Bar		 SWL
kN		 Weight
kg
200 200 300 10 14 175 240 600
800
1000
1200		 L+44 1500 10 X 100 X 10 100 123.5
250 250 350 12 19 200 300 L+54 125 X 125 X 14 210 197. 5
Note: Weight is calculated on L=800mm, H=1 200mm
CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment

Drawing of CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment

CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring EquipmentCB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment
