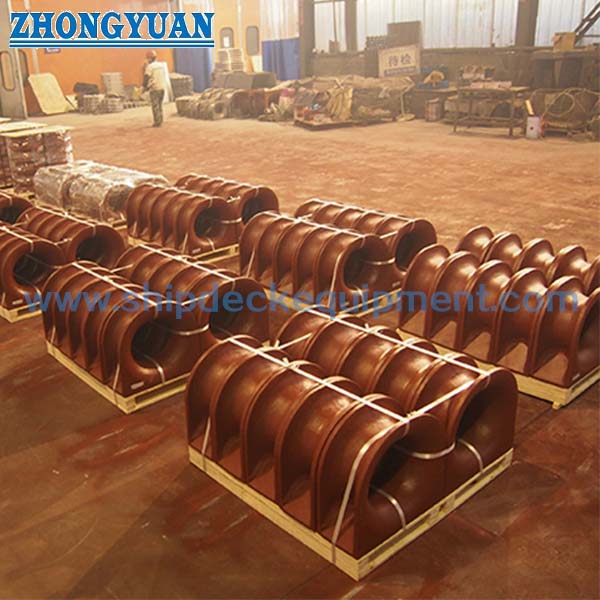

CB 34 Type C Casting Steel Deck Welded Mooring Chock Ship Mooring Equipment
CB 34 Type C Casting Steel Deck Welded Mooring Chock Ship Mooring Equipment
CB 34 Type C Casting Steel Deck Welded Mooring Chock Ship Mooring Equipment
CB 34 Type C Casting Steel Deck Welded Mooring Chock Ship Mooring Equipment
Specifications
Place of Origin :
China
Brand Name :
Zhongyuan
Certification :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
Model Number :
Standard and Customized
MOQ :
1
Price :
As per quotation
Packaging Details :
Pallet or Customized
Delivery Time :
As per offer
Payment Terms :
TT, L/C, Etc.
Supply Ability :
Satisfy clients needs
Type :
Type C
Materials :
Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker
Technical Standard :
CB 34-76
Weight :
Weight: 37.5-296kg
Surface treatment :
sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS
Description

CB 34 Type C Casting Steel Deck Welded Mooring Chock Ship Mooring Equipment

Description:

Mooring chock, welded on deck or bulwark, is used to guide and control the mooring ropes to a certain direction. Its surface is polished smoothly in order to reduce the friction of the rope. CB* 34-76 marine mooring chocks have four types: CB34-76 type A, type B, type C, type D.

Main Technical Specification:

1. Type: Type C;

2. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.

3. Technical Standard: CB 34-76

4. Weight: 37.5-296kg;

5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.

6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS

Main Technical Parameter:

Maximum diameter of cable Maximum girth of flax Maximum diameter of nylon cable L L1 B B1 B2 B3 H H1 R R1 b1 b2 b3 r r1 r2 r3 t1 t2 Weight
kg
15 125 30 150 400 110 170 118 60 250 115 48 102 32 40 26 50 27 20 10 25 5 37.5
18.5 160 35 200 500 150 190 139 71 317 146 65 133 40 50 32 70 30 30 10 30 5 63
22.5 200 45 250 600 220 250 161 82 382 177 85 165 45 55 36 75 37 30 15 35 10 97
28 230 55 300 650 220 250 172 88 436 198 95 203 50 60 42 90 37 40 15 40 10 127
38.5 270 70 400 750 290 280 185 95 513 240 125 273 55 65 47 95 39 40 20 45 10 210
43.5 325 90 500 880 350 300 199 102 589 277 147 350 60 70 51 110 42 50 20 50 10 296

CB 34 Type C Casting Steel Deck Welded Mooring Chock Ship Mooring Equipment

Drawing of CB 34 Type C Casting Steel Deck Welded Mooring Chock Ship Mooring Equipment

CB 34 Type C Casting Steel Deck Welded Mooring Chock Ship Mooring Equipment

CB 34 Type C Casting Steel Deck Welded Mooring Chock Ship Mooring Equipment
