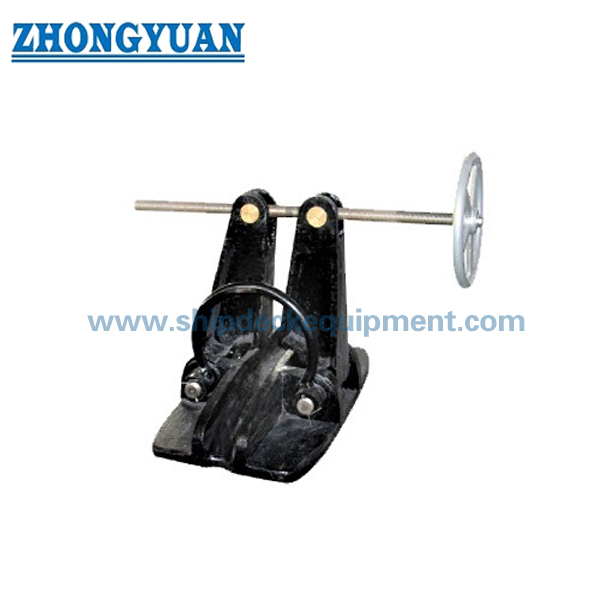

Casting Screw Bar Type Anchor Chain Stopper CB/T 178 Type A Ship Mooring Equipment
Casting Screw Bar Type Anchor Chain Stopper CB/T 178 Type A Ship Mooring Equipment
Specifications
Technical Standard :
CB/T 178-96
Type :
Screw type A
Chain Size :
22-66mm
Materials :
Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron, Steel Forging
Surface treatment :
sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
Classification Certificates :
CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc
Description

Casting Screw Bar Type Anchor Chain Stopper CB/T 178 Type A Ship Mooring Equipment

Descriptions:

CB/T 178-96 type A screw type anchor chain stopper is applicable to anchor chain size from 22mm to 66mm. It is applicable to grade 2 or U2 anchor chain cable only. It can withstand 80% force of the breaking strength of U2 anchor chain. It is made of casting steel and mild steel. It is either welded directly on the deck or on the base.

Main Technical Specification;

  1. Technical Standard: CB/T 178-96
  2. Type: Screw type A
  3. Chain Size: 22-66mm
  4. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron, Steel Forging,
  5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
  6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
  7. Can be Customized

Main Technical Specifications:

Anchor Chain
Size		 B B1 B2 B3 B4 B5 b b1 c d d1 d2 　
22~26 280 104 40 94 76 84 20 35 190 T26 x 8/2 250 25 　
28~32 310 118 45 114 92 90 25 40 210 T28 X 8/2 320 26 　
34-38 360 131 50 136 110 105 30 45 250 T30 x 10/2 320 30 　
10~44 420 152 55 160 128 120 35 50 290 T32 x 10/2 400 34 　
46~48 480 172 65 186 145 130 40 60 330 T36 X 10/2 400 36 　
52~58 550 192 75 211 166 150 45 75 380 T40 x 10/2 400 40 　
60-66 610 212 85 250 190 170 50 90 110 T44 x 12/2 500 40 　
Anchor Chain
Size		 H H1 H2 H3 h L L1 L2 R R1 r r1 Weight
kg
22~26 335 105 70 1 75 42 500 275 265 45 95 22 40 90
28~ 32 400 125 80 204 so 550 330 320 50 105 28 50 122
34~38 455 135 90 235 60 600 375 365 55 125 33 55 163
40~ 44 515 150 100 271 70 670 430 415 65 145 37 65 238
46~48 585 175 115 307 80 770 480 165 75 165 42 75 353
52~58 680 200 130 360 90 970 565 545 85 190 46 85 518
60~66 775 225 150 410 105 1000 640 615 100 220 55 100 772
Casting Screw Bar Type Anchor Chain Stopper CB/T 178 Type A Ship Mooring Equipment
Drawing of Casting Screw Bar Type Anchor Chain Stopper CB/T 178 Type A Ship Mooring Equipment
