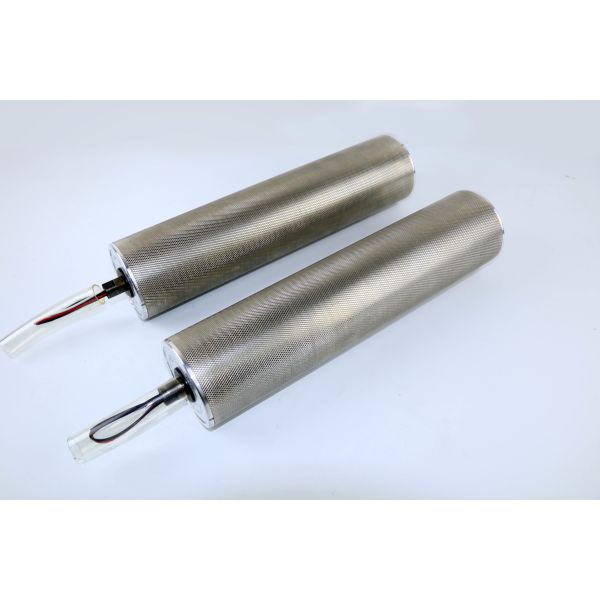

AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color
AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color
AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color
AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color
AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color
AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color
AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color
AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color
Specifications
Brand Name :
Xinhui
Model Number :
XH004
Certification :
ISO9001, ISO, CE, ISO CCC CE, FDA
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram, T/T
Supply Ability :
100000SET/Month
Delivery Time :
7-10 Work days
Packaging Details :
Waterproof plastic bag and cartonor suitable packing according to customer's requirements
Product name: :
Security machine AC roller
Warranty :
1 Year
Color :
Silver/Grey
Type :
Electric Conveyor Rollers
Power(w) :
0.4kW - 22kW
Voltage :
220/380V
Frame material :
Stainless Steel
Description

AC / DC Drum Motor for Belt Conveyor

Detail parameter:

electric conveying roller import Advanced technology and standards in Germany and Japan.Focus on industrial
miniature electric roller and small electric drum R & D production.

Products include: micro electric roller for rolling conveyer, small electric drum for belt conveyer, suitable for DC
DC electric roller and non-power drum with higher requirements.The diameter of the electric conveying roller,
thepower of the motor : the diameter of the electric roller has been subdivided into : 50 , 57 , 60 , 76 , 80 ,
100 , 113 , 127 , 138 and165 . The power of the motor is from 15W to 1.1 KW.

Characteristics of electric conveying roller:

The structure of electric conveying roller is: after integrating the gear reducer, the motor and the electronic
technology, the electric drum is reasonably installed inside the steel tube to make a drum with its own power.
Therefore, the transmission system does not have to consider the motor, the chain, the intermediate shaft, or
other auxiliary driving elements,no longer need a heavy gearbox.only the electric roller needs to be mounted
on the frame , the wire is connected to the power supply , and the work is finished.Delivery system is cleaner,
denser, beautiful, safe and reliable.

Product Applications:

Products are widely used in: food processing, pharmaceutical production, electronic assembly, airport logistics,
postal services, distribution and various industries.To meet the needs of diversification and automation of
different industries.Product quality, technology, credit and service are well-known, in the industry to establish the
status of first-class production enterprises.


Roller body:
Standard rollers are low carbon steel material Straight roller body.roller body
surface can be machined knurled, wrapped in rubber to increase friction.Food
grade roller body is 304 stainless steel.


Shaft:
Standard electric rollers is Carbon steel material.Food grade requirements 304
stainless steel.

Capping sealing :
Standard electric rollers capping sealing is Die casting aluminum alloy material,Food grade general purpose, can also be specially customized to 304
stainless steel.

Gear reducer:
The planetary gear structure , the sun gear , the planet gear and the inner gear
ring are metal steel gears,Ensure large torque output in small space.

Electric motor:
24V safe voltage, motor insulation grade F, wire exposed standard length of
0.5 meters.

AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color

AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color

AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color

AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color

AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color

AC / DC Drum Motor Electric Conveyor Rollers With Silver / Grey Color
