PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min
PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min
PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min
PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min
PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min
PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min
PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min
PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min
PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min
PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min
PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min
PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min
Specifications
Processing :
Sterilizer
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Farms, Beverage Processing Plant, Juice Processing Factory
Showroom Location :
Romania, Bangladesh, Kazakhstan
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
HOT SALE 2022
Warranty of core components :
1 Year
Core Components :
Engine, Gearbox, Pressure vessel, Gear, Pump
Condition :
New
Place of Origin :
Shanghai, China
Brand Name :
NC
Processing Types :
Juice
Voltage :
Customized
Power :
7.5 Kw
Weight :
800 KG
Dimension(L*W*H) :
1200*12000*1400
Warranty :
1 Year
After-sales Service Provided :
Field installation, commissioning and training
Certification :
CE ISO
Capacity :
8000-15000BPH
Conveyor width :
220mm
Application :
Juice
Processing type :
Beverage sterilizing system
Belt speed :
4-20m/min
Material :
SUS304/SUS316
Bottle type :
Plastic Bottle,glass bottle
Length :
Basing on the capacity
Packaging Details :
Standard wooden case
Port :
Shanghai
Supply Ability :
200 Set/Sets per Month
Price :
$8,000.00 - $18,000.00/sets
MOQ :
1 set
Description

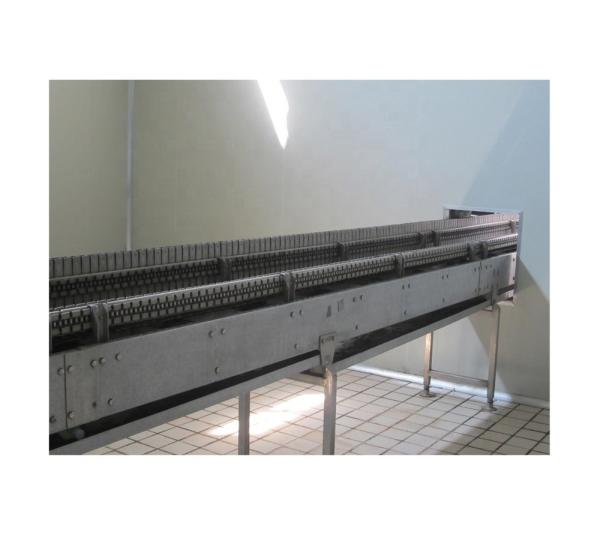

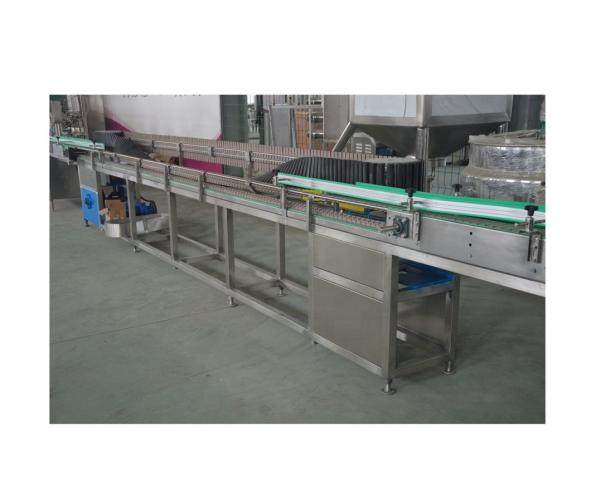

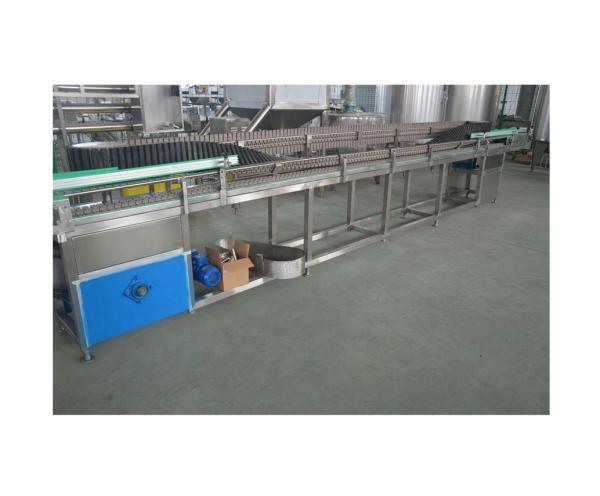

PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min

Bottle Inverted Sterilizer Specifications:

The inverted sterilizer for filled bottle neck and mouth is suitable for tea, fruit juice drinks,widely used in juice production
line.
The titling sterilization machine is especially used for second sterilizing in juice processing plant. It is not only sterilizing
the material but the caps. It is the essential sterilizing machine for the hot filling production line.

The Advantage of the Automatic Bottle Inverter:

1.The machine is mainly used to sterilize the interspaces where can’t be reached by high temperature materials in the mouths or capsules of juice or tea bottles whice have been filled and sealed.

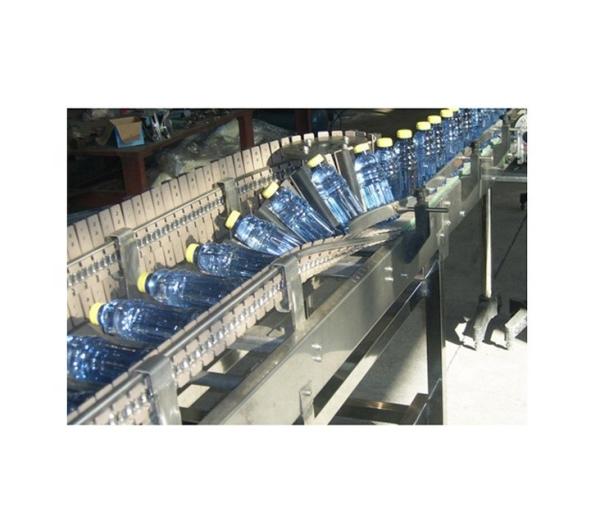

2.After the product being filled and capped, the bottle shall be inverted 90°automatically and put flatware by the machine, and the inner of the bottle shall be sterilized by high temperature of the materials and then bottle shall be put vertically and enter into the shower and cooler.

3.The machine runs steadily and reliably and does no harm to the bottle body while the transmission speed is adjusted steplessly.

Capacity 1-5T/H Cooling time 10-25 minute speed infinitive adjusting
Sterilization temperature < 98℃ It can be adjusted according to order Steam pressure 0.4 Mpa
Sterilizing time 10-35 minute speed infinitive adjusting Chain belt speed 0.17 -10m/min speed infinitive adjusting
Cooling temperature 20℃ Dimensions 1600x2600x 2000 mm

PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/minPET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/minPET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/minPET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min

PET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/minPET Plastic Bottle Inverted Sterilizer with 7.5 Kw Power and Belt Speed of 4-20m/min

Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory.
Responsible Man(General Manager):Jason
Cel.Phone:0086-15221595986
Tel.Phone:0086-21-37575536
