7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
Specifications
Processing :
Sterilizer, powder milk,cow milk to final pure milk or flavouring milk
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Farms
Showroom Location :
Pakistan, Russia, Kenya, Tajikistan
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
100% High Quality
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition :
New
Place of Origin :
Shanghai, China
Brand Name :
NC, NC
Model Number :
2500KG
Processing Types :
Milk
Voltage :
220V/380V/415V/440V
Power :
7.5 Kw
Weight :
2500 KG
Dimension(L*W*H) :
4500*2200*2500mm
Warranty :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Usage :
Sterilization For Milk Juice Fruit Jam
Filling packaging :
Carton,plastic bag,plastic box
Keywords :
Milk,Juice Pasteurizer
Name :
Tube Sterilizer Machine
Fit for 1 :
Cow milk
Fit for 2 :
Goat milk
Fit for 3 :
Horse milk
Price :
$29,000.00/sets 1-1 sets
MOQ :
1 set
Description
Product Overview

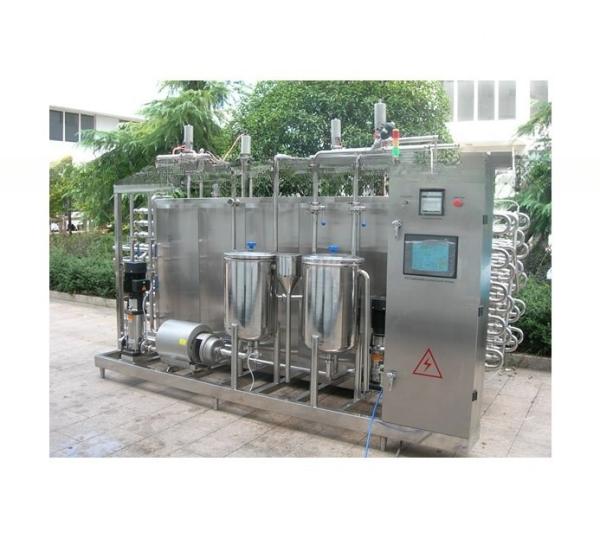

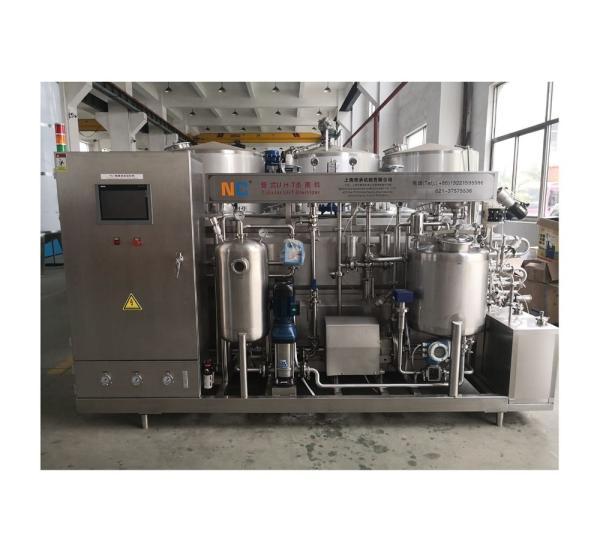

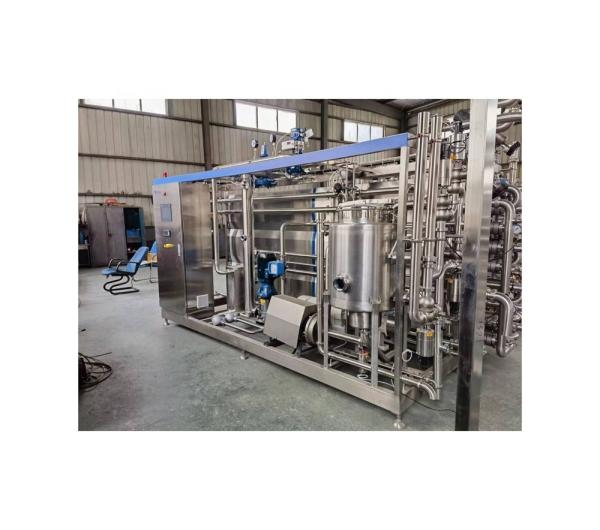

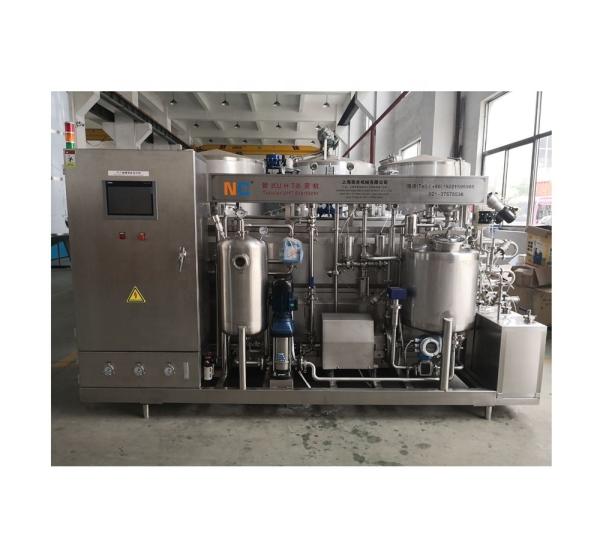

UHT Tubular milk sterilizing machine for tea beverage

The tube(pipe) in tube pasteurizer can sterilize all kind of dairy product,juice,beverages,syrups,soy sauces,liquids,crude products, and liquid medicines. It has the following characteristics:
NO.
Main List
Specifications
Qty
Manufacturer
1
Machine main body
TG-UHT-75
1
Our company
2
Balanced barrel
120L
1
Our company
3
Hot water barrel
100L
1
Our company
4
Centrifugal pump
10T/H
1
Groundfos
5
Hot water pump
3-170
1
Groundfos
6
Clean pump
L8-80
1
Groundfos
7
Butterfly valves
38
1
Spirax Sarco
8
Pneumatic butterfly valves
38
6
Spirax Sarco
9
Ball valve
38
7
APV
10
Steam flow control valve
LE33 EP5 DN38
1
Spirax Sarco
11
Steam Pressure reducing valve
25P DN38
1
Spirax Sarco
12
Steam plunger-type valves
DN38
1
Spirax Sarco
13
Steam trap
1
Spirax Sarco
14
Pressure gauge
100
2
Denmark
15
Two-position four way pneumatic valve
25
1
Spirax Sarco
16
Two-position three way pneumatic valve
25
2
Spirax Sarco
17
Pneumatic Constant pressure valve
25
1
Spirax Sarco
18
Touch screen panel
10.4”
1
Siemens
19
Programmable logic controller
S7-200
1
Siemens
20
Electric component
Schneider
1
Schneider
21
Flow meter
1
JUMO
22
Temperature sensor
Pt100
4
Made in Japan
23
Liquid level gauge
1
JUMO
24
diaphragm pump
1
USA
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
PRODUCT CONFIGURATION
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
Each pipe mark with clear label
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
World famous brand electricals
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
Heating elements
SIMILAR PRODUCTS
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing
Supplier Brand
7.5 Kw UHT Tubular Sterilizing Machine for 3 Horse Milk and Tea Beverage Processing

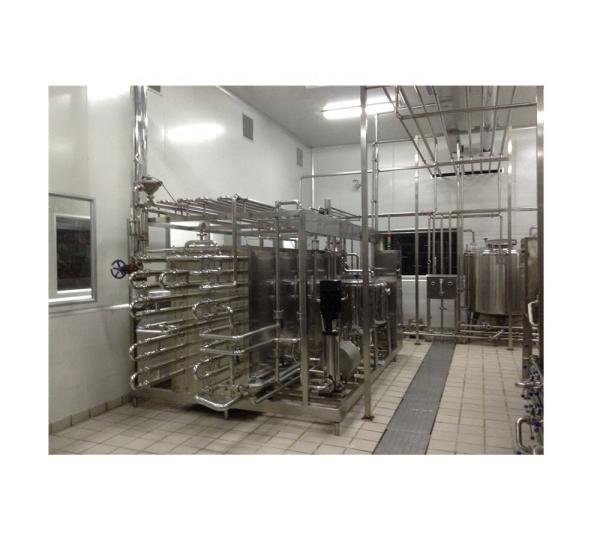

Customer Photos
