Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Specifications
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Farms
Showroom Location :
Peru, Morocco, Chile
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
HOT SALE 204
Warranty of core components :
1 Year
Core Components :
Motor
Condition :
New
Place of Origin :
Shanghai, China
Brand Name :
NC
Voltage :
110V/220V/380V
Power :
Depends
Weight :
800 KG
Dimension(L*W*H) :
Customized
Warranty :
1 Year
Key Selling Points :
Famous brand PLC
Material :
SUS304
Application :
Tea, fruit juice,beverage
Advantage :
Run steadily
Apply to :
Second sterilizing in juice production line
Package :
Wooden Case
Suit for :
Filled bottle neck and mouth
Function :
Sterilization
Name :
Bottle Inverter Sterilizer / bottle inverter / inverter sterilizer
Automatic or Not :
Fully Automatic
Applicable volume of Bottle :
450-600ml
Price :
$4,800.00/sets 1-1 sets
MOQ :
1 set
Description
Product Overview

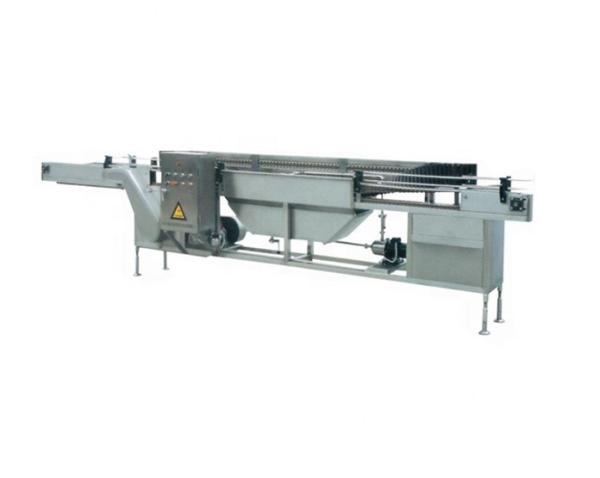

Hot Filling Glass Bottle Glass Jar Reverse Sterilizer with Automatic Conveyor System

Bottle Inverted Sterilizer Specifications:
The inverted sterilizer for filled bottle neck and mouth is suitable for tea, fruit juice drinks,widely used in juice production
line.
The titling sterilization machine is especially used for second sterilizing in juice processing plant. It is not only sterilizing
the material but the caps. It is the essential sterilizing machine for the hot filling production line.

The Advantage of the Automatic Bottle Inverter:

1.The machine is mainly used to sterilize the interspaces where can’t be reached by high temperature materials in the mouths or capsules of juice or tea bottles whice have been filled and sealed.

2.After the product being filled and capped, the bottle shall be inverted 90°automatically and put flatware by the machine, and the inner of the bottle shall be sterilized by high temperature of the materials and then bottle shall be put vertically and enter into the shower and cooler.

3.The machine runs steadily and reliably and does no harm to the bottle body while the transmission speed is adjusted steplessly.
FEATURES AT A GLANCE
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
PRODUCT SPECIFICATIONS
Capacity
1-5T/H
Cooling time
10-25 minute speed infinitive adjusting
Sterilization temperature
< 98℃ It can be adjusted according to order
Steam pressure
0.4 Mpa
Sterilizing time
10-35 minute speed infinitive adjusting
Chain belt speed
0.17 -10m/min speed infinitive adjusting
Cooling temperature
20℃
Dimensions
1600x2600x 2000 mm
PRODUCT CONFIGURATION
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Suitable For Both Glass And Plastic Bottle
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production
Food Sanitary Material
Automatic Conveyor System Glass Jar Sterilizer for Second Sterilizing in Juice Production

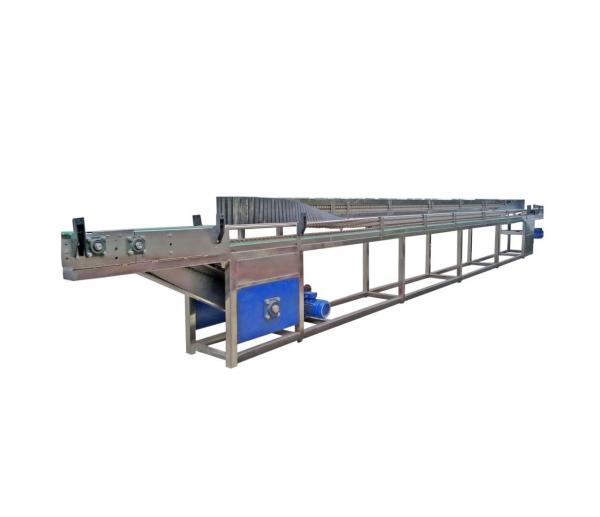

Conveyor For Easy Transport,Without Damage Bottle
