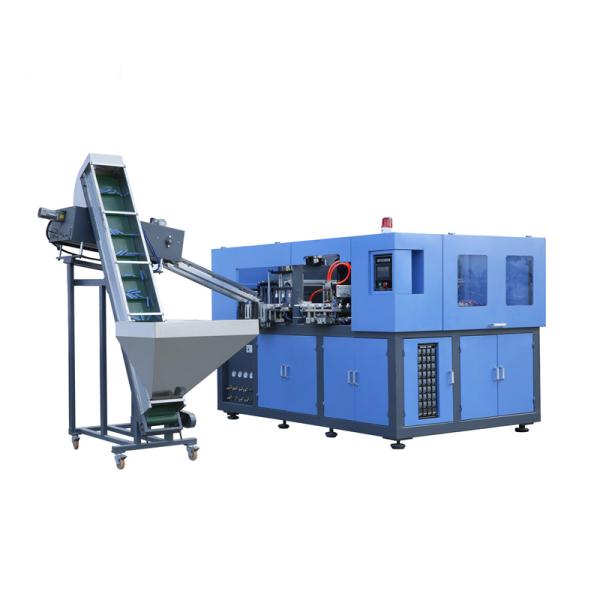

Automatic 120BPH Blow Molding Machine With Infrared Heating System And 200mm Mold Stroke
Automatic 120BPH Blow Molding Machine With Infrared Heating System And 200mm Mold Stroke
Automatic 120BPH Blow Molding Machine With Infrared Heating System And 200mm Mold Stroke
Automatic 120BPH Blow Molding Machine With Infrared Heating System And 200mm Mold Stroke
Automatic 120BPH Blow Molding Machine With Infrared Heating System And 200mm Mold Stroke
Automatic 120BPH Blow Molding Machine With Infrared Heating System And 200mm Mold Stroke
Automatic 120BPH Blow Molding Machine With Infrared Heating System And 200mm Mold Stroke
Automatic 120BPH Blow Molding Machine With Infrared Heating System And 200mm Mold Stroke
Specifications
Brand Name :
NC
Place of Origin :
Shanghai
MOQ :
1set
Price :
USD10000 /set
Payment Terms :
T/T
Delivery Time :
30days
Packaging Details :
As designed
Bottle Size :
100ml-2L
Mold Stroke :
200mm
Heating System :
Infrared
Dimension :
2000*1500*1800mm
Capping Head :
12 Pcs
Driven Type :
Electric
Net Weight :
4200kg
Control System :
PLC
Description

Semi Automatic 1000b/h Small Plastic Bottle Blow Molding Machine

NC series semi automatic bottle blowing machine is the most stable two step blow down equipment of our factory, from one cavity to four cavity, the maximum is 20L,suitable for blowing PET, PP crystal forming kind raw material any shape carbonated beverage bottles, mineral water bottles, cosmetics bottles, wide diameter bottles, high temperature resisting bottles and other plastic container.

Item Name Brand

Pneumatic

components

 Cylinder TAIWAN Air TAC

Electrical

components

 Main computer TAIWAN DELTA

Human machine interface

(HMI)

 TAIWAN DELTA
Relay KOREA AUTONICS
Photoelectric switch TAIWAN Air TAC
Remark

All the components are selected with

Internationally applied high-tech products.

Model ZG1000A
Output Based on bottle shape 800-1200PCS/H
Product Specifications Bottle neck size 10mm-120mm
Bottle body diameter 15mm-130mm
Bottle height 50mm-350mm

Mold

Specifications

 Cavity 2cavities
Mold thickness 100~250mm
Max stretching distance 430*380mm
Machine Power Power Voltage

380v 3Phase /

220v 3Phase 50/60HZ

Installed power /

Actual power

 18kw/10kw
Air Source High pressure air compressor 1.2m3/min 3.0MPa
Air dryer 0.6m3/min 1.0MPa
Water chiller Chilled water yield 15L/min
Blowing machine size

Length*width*height/weight

 1700*650*1700mm/1000kg
Heater size

Length*width*height/weight

 1700*600*1450mm/300k

Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.

We warmly welcome customer to visit our factory at any time,you will see the machine working and running

conditon in our factory!

Responsible Man(General Manager):Jason

Cel.Phone:0086-15221595986

Tel.Phone:0086-21-37575536
